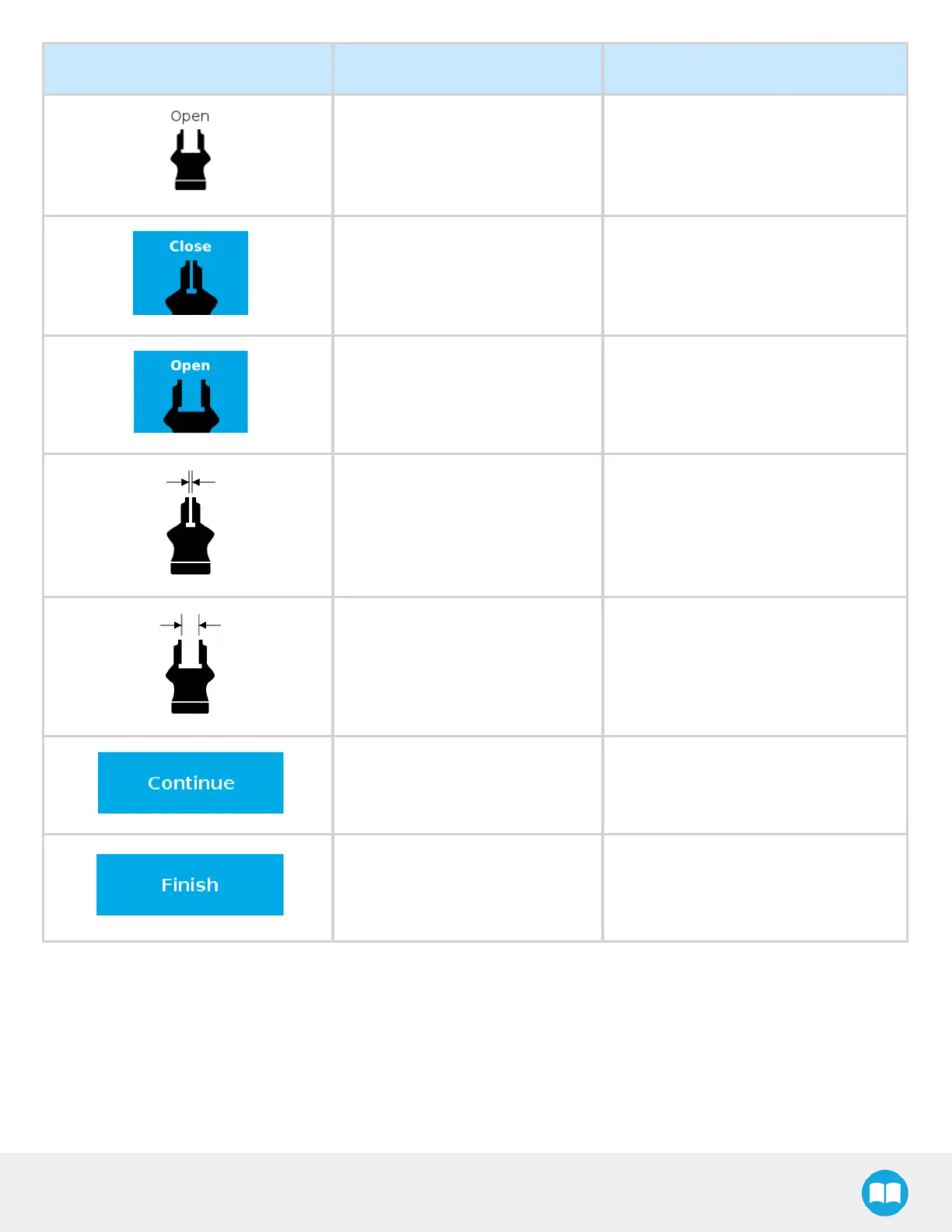

Icon FunctionalityName Description
Fully open dimension table header
Visual aid above the fully open
dimensions in the Calibration menu
Close
Tap thisbutton to close the Gripper in
the Calibration wizard.
Open
Tap thisbutton to open the Gripper in
the Calibration wizard.
Fully closed
Visual aid for entering the fully closed
dimension in the Calibration wizard.
Fully open
Visual aid for entering the fully open
dimension in the Calibration wizard.
Continue
Tap thisbutton at the end of the first
step of the Calibration wizard in order
to go to the next step.
Finish
Tap thisbutton at the the end of the
Calibration wizard to complete the
calibration process for the
corresponding Gripper.
