Robotiq Hand-E Gripper - Instruction Manual
To control the gripper directly from the program:
1
To insert a gripper node in the program:
a
Tap the Commands tab to display the various nodes
b
Tap the Gripper icon to insert a gripper node.
c
Tap the Gripper icon to insert a gripper node.

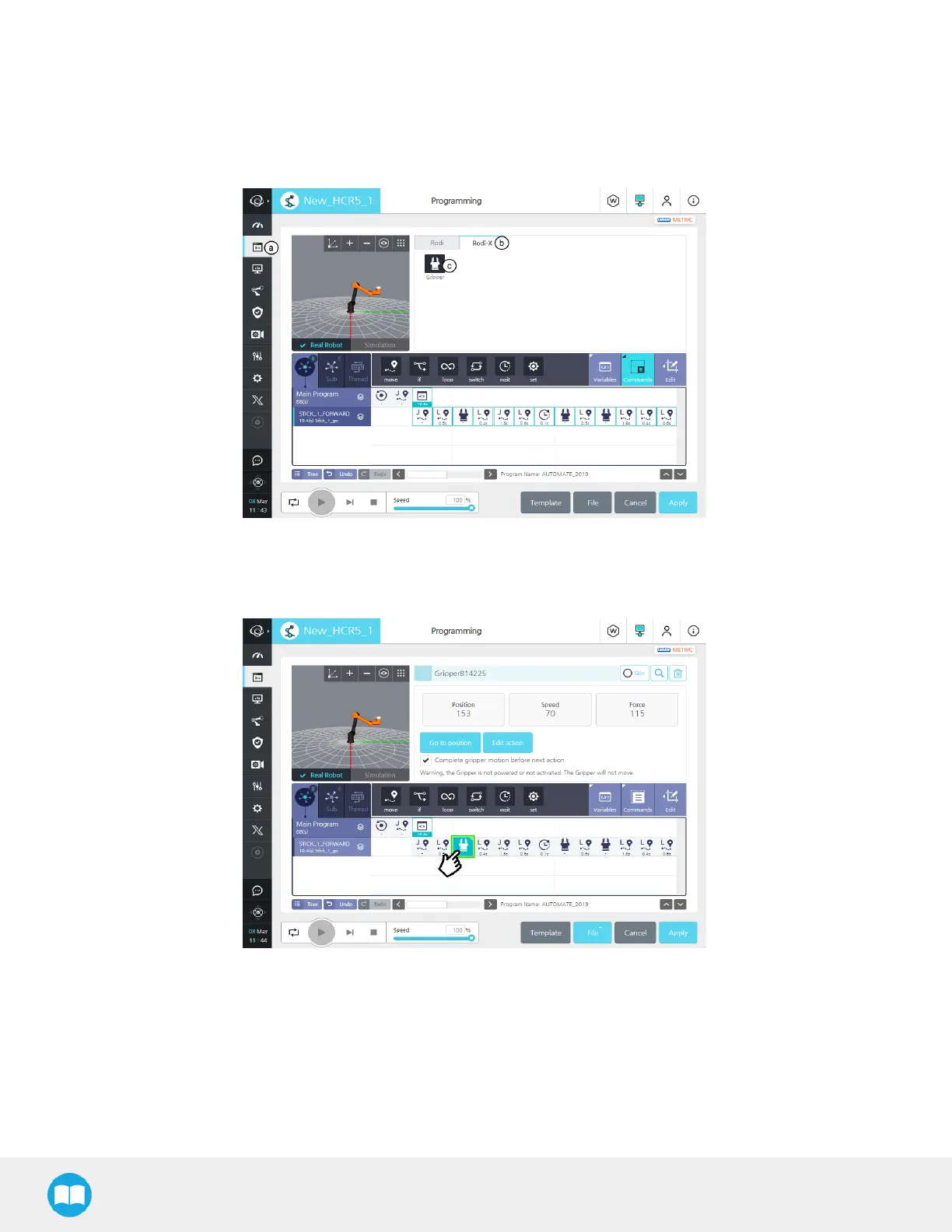

Fig. 4-7: Menu to insert a gripper node in the program
2
Tap the Gripper icon in the program to display Gripper settings.
Fig. 4-8: Menu to show the Gripper settings.
