2.10 Mount the Router
The router can be placed on a desktop or mounted to a wall or a 35 mm DIN rail.
Two methods for mounting the router

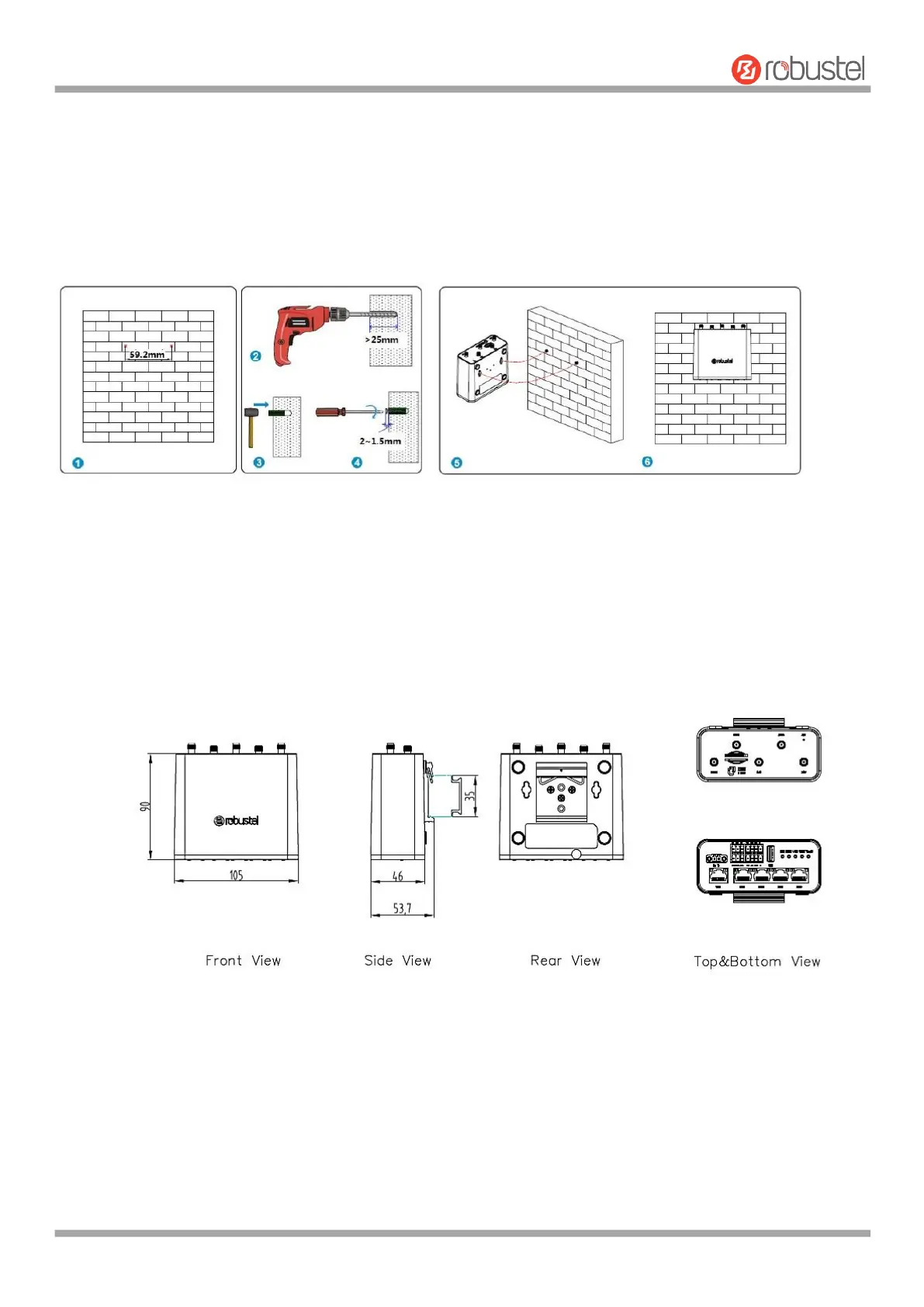

1. Wall mounting (measured in mm)
First, drill holes on the wall, the distance between the two holes is 60mm, then knock the expansion pipe into the
wall with a rubber hammer, align the screw with the expansion pipe, insert the screw and reserve the corresponding
length, and finally fix the product on the wall.
Note: Recommended torque for mounting is 1.0 N.m, and the maximum allowed is 1.2 N.m.
2. DIN rail mounting (measured in mm)
Option 1: Vertical installation
