system_time = "Thu May 14 05:51:56 2020 (NTP not updated)"
ram_usage = "75M Free/128M Total"
admin:admin;reboot
In this command, username is “admin”, password is “admin”, and the command is to reBoot the R1520 Router.
SMS received:
OK
admin:admin;set firewall remote_ssh_access false;set firewall remote_telnet_access false
In this command, username is “admin”, password is “admin”, and the command is to disaBle the
remote_ssh and remote_telnet access.
SMS received:
OK
OK
admin:admin; set lan network 1 interface lan0;set lan network 1 ip 172.16.24.24;set lan network 1 netmask
255.255.0.0;set lan network 1 mtu 1500
In this command, username is “admin”, password is “admin”, and the commands is to configure
the LAN parameter.
SMS received:
OK
OK
OK
OK
5.2 VPN Configuration Example
5.2.1 IPsec VPN

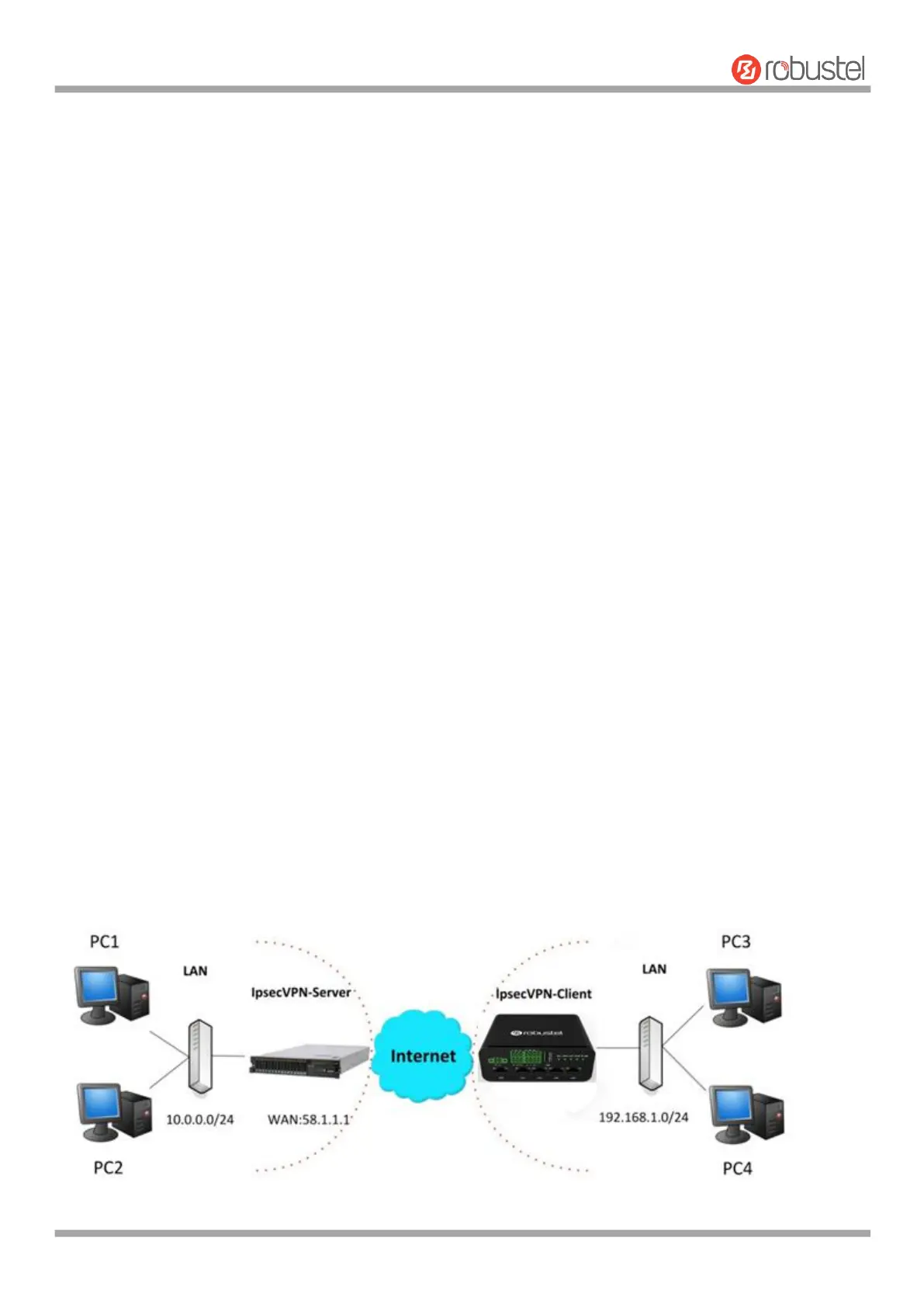

IPSec VPN sample topology (configuration of Ike and SA parameters of server and client must be consistent):
