Robustel R1520 User Guide
RT056_UG_R1520_v.1.0.3 Dec. 25, 2021 35/159

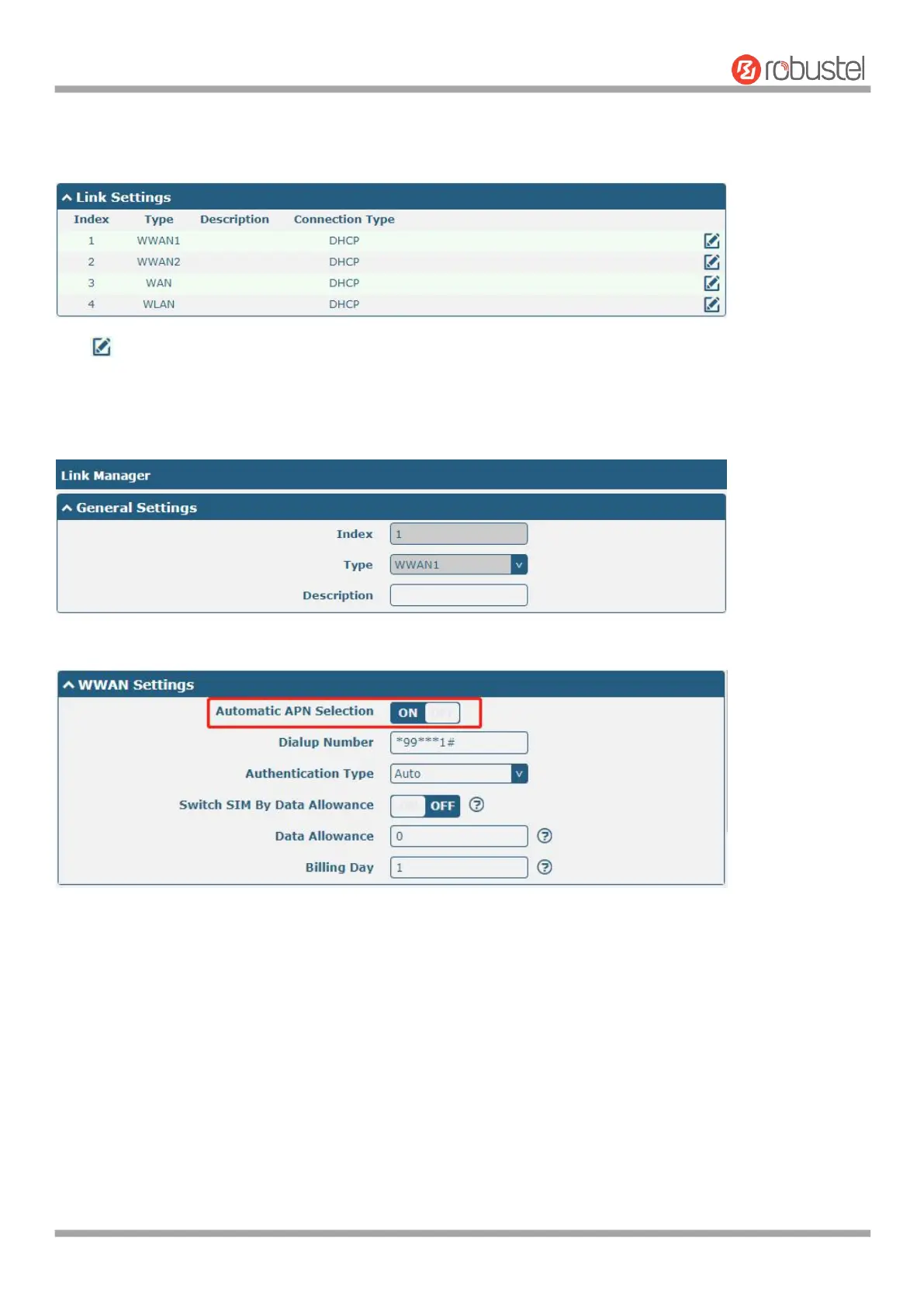

Link Settings allows you to configure the parameters of link connection, including WWAN1, WWAN2, WAN and
WLAN. It is recommended to enable Ping detection to keep the router always online. The Ping detection increases
the reliability and also costs the data traffic.
Click on the right-most of WWAN1/WWAN2/WAN/WLAN to enter the configuration window.
WWAN1/ WWAN2
The window is displayed as below when enabling the “Automatic APN Selection” option.
The window is displayed as below when disabling the “Automatic APN Selection” option.
