Robustel
R1520
User
Guide
RT056_UG_R1520_v
.1.0.3
Dec.
25,
20
21
25/159

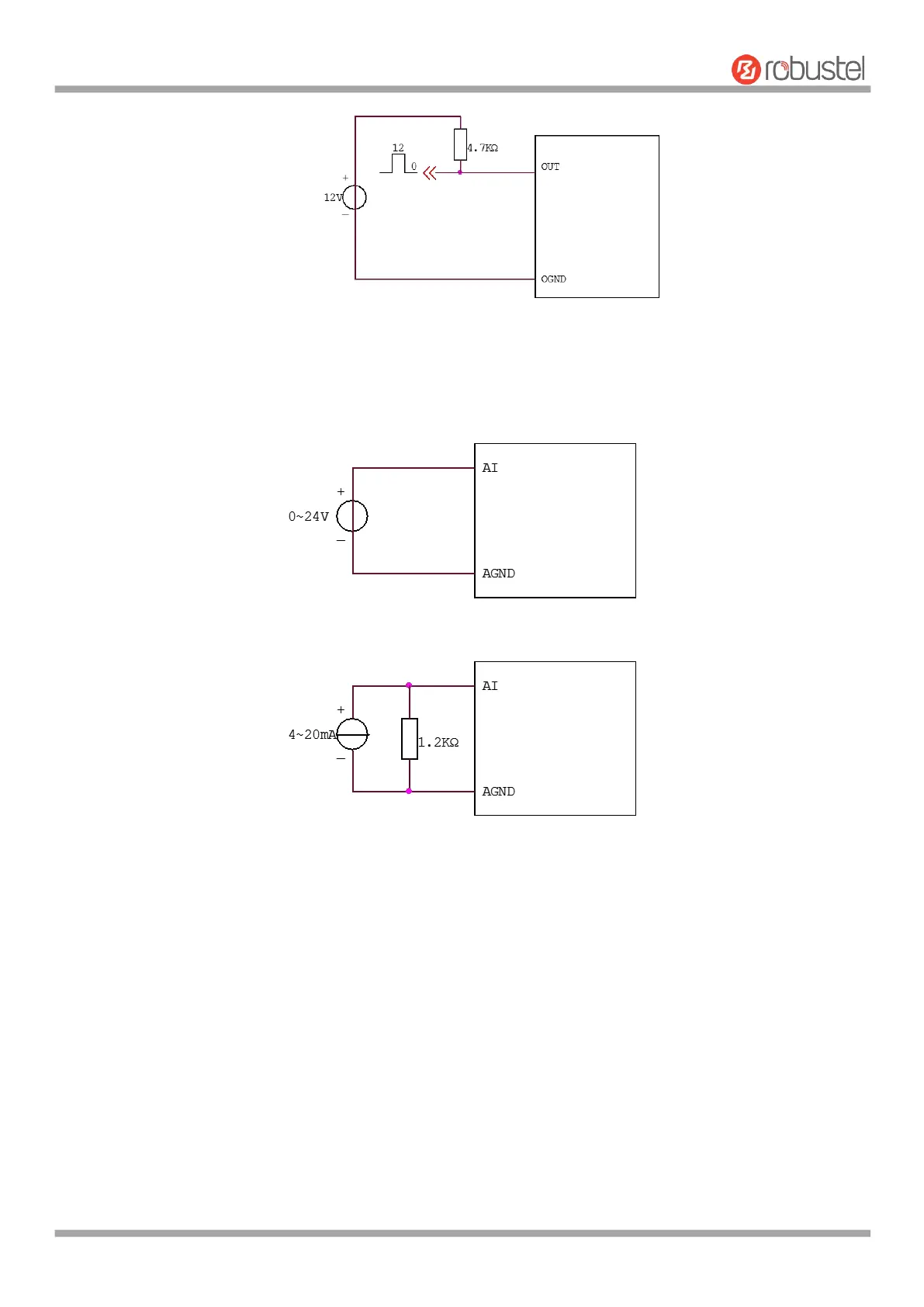

2.14
AI
Interfa
ce
R1520
supports
one
channel
AI
interfa
ce
for
analog
signal
voltag
e
and
curren
t
measur
ement
;
1.
0
~
24V
voltag
e
measur
ement
,
wiring
as
shown
below:
2.
4
~
20mA
curren
t
signal
measur
ement
r
equire
s
an
extern
al
para
llel
1.2k
ohm
resistor
,
wiring
as
shown
below:
24
26
