Rockwell Automation Publication 2080-QS004C-EN-E - October 2023 21
Chapter 3 Create and Save a Connected Components Workbench Project

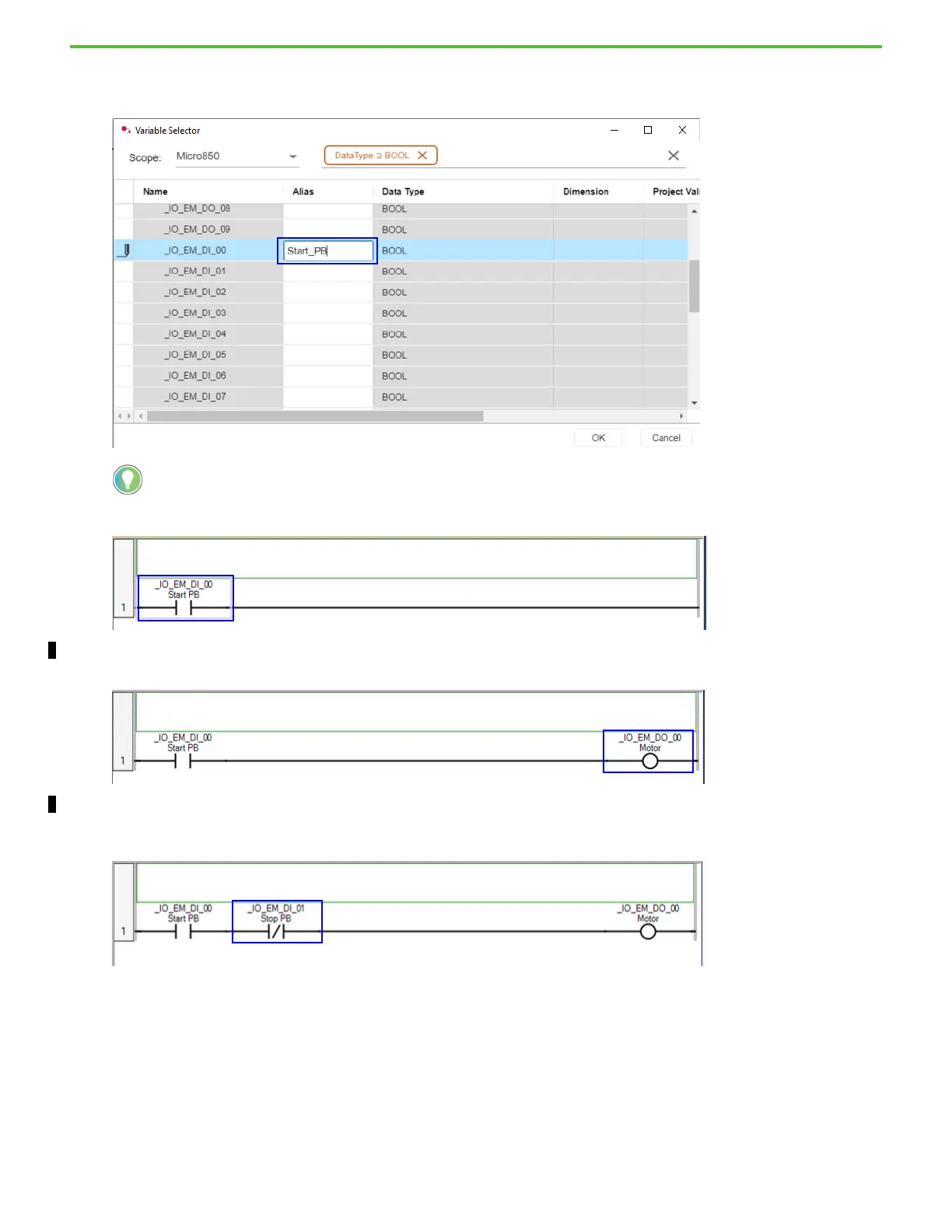

4. For this example, assign an embedded I/O point to this instruction. Select _IO_EM_DI_00, then in the Alias column of _IO_EM_DI_00,
type “Start PB” and select OK.
5. Your rung should look as follows.
6. Locate the Direct Coil instruction in the Favorites folder of the Instruction Toolbar, and drag-and-drop it onto the far right side of the
rung. Assign it to the embedded I/O point, _IO_EM_DO_00 with the alias “Motor”. Your rung should look as follows.
7. Locate the Reverse Contact instruction in the Favorites folder of the Instruction Toolbar, and drag-and-drop it onto your rung, just to
the right of the Direct Contact instruction. Assign it to the embedded I/O point _IO_EM_DI_01 with the alias “Stop PB”. Your rung should
look as follows.
An alias is an optional parameter that you can use to further define a local variable or a global variable.
