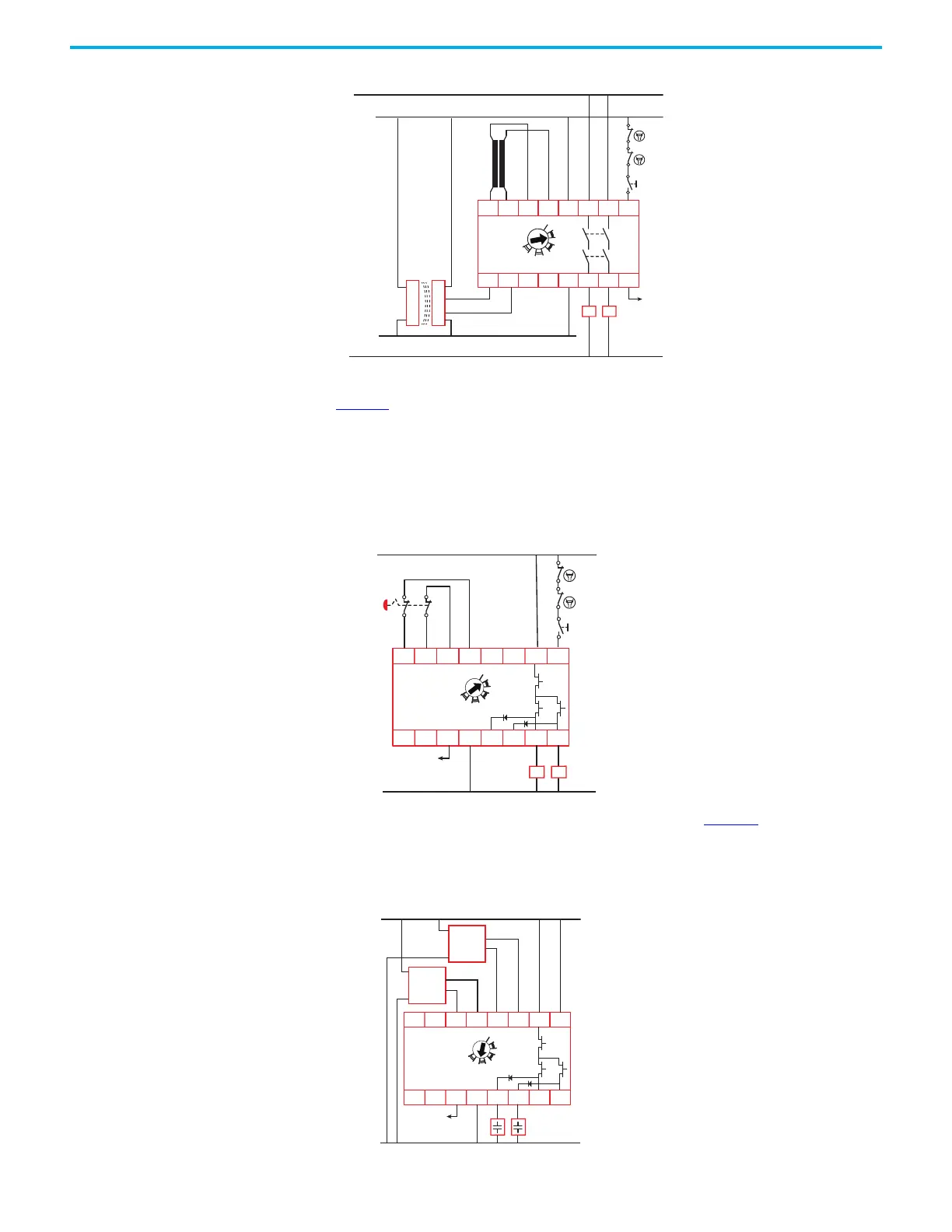

Rockwell Automation Publication 440R-UM013G-EN-P - December 2022 47
Chapter 9 Application and Wiring Examples
Figure 46 - With a Safety Mat and Device with OSSD Outputs, Monitored Manual Reset, AC Loads
DIS Safety Relay
(Cat.No.440R-D22S2)
Figure 47 shows the DIS safety relay with only one device. The DIS and DI safety relays can
monitor one device by configuring the safety relay for OR logic. The DIS safety relay logic
setting is 1: (IN1 OR IN2) OR L12 with monitored manual reset. The second input (terminals S32
and S42) requires no connection. With solid-state outputs, the contactors K1 and K2 must be
24V DC powered coils. The DIS safety relay verifies that contactors K1 and K2 are off by
monitoring the mechanically linked normally closed contacts in the S34 circuit. When the DIS
safety relay is off, the auxiliary signal at terminal Y32 turns on and reports the status to a PLC.
Figure 47 - Single Input, Monitored Reset
The DIS safety relay monitors two devices with OSSD outputs in Figure 48. The DIS safety relay
logic setting is 6: (IN1 AND IN2) OR L12 with automatic reset. The output terminals 34 and 44 are
designed to tolerate higher capacitance loads (but lower resistive load) as compared to
terminals 14 and 24.
Figure 48 - High Capacitive Load
A1 S11 S21 S12S22
S32 L11 Y32L12
13
14S42
23
24
S34
A2
DI
440R-D22R2
0
1
2
3
4
56
7
8
K1
24V DC
24V Com
K2
K1 K2
L1
120/230V AC
N
OSSD1
OSSD2
LOGIC
Reset
To PLC
0
1
2
3
4
56
7
8
DIS
440R-D22S2
S32 A1
Y32
S21S11 S22 S12 S34
S42
L12 L11
34A2 44
14 24
K1
24V DC
24V Com
K2
K1 K2
LOGIC
Reset
To PLC
0
1
2
3
4
56
7
8
DIS
440R-D22S2
S32 A1
Y32
S21S11 S22S12 S34
S42
L12 L11
34A2 44
14 24
24V DC
+
OSSD1
OSSD2
-
24V Com
+
OSSD1
OSSD2
-
LOGIC
To PLC
