Chapter 7 Module Overview and Specifications

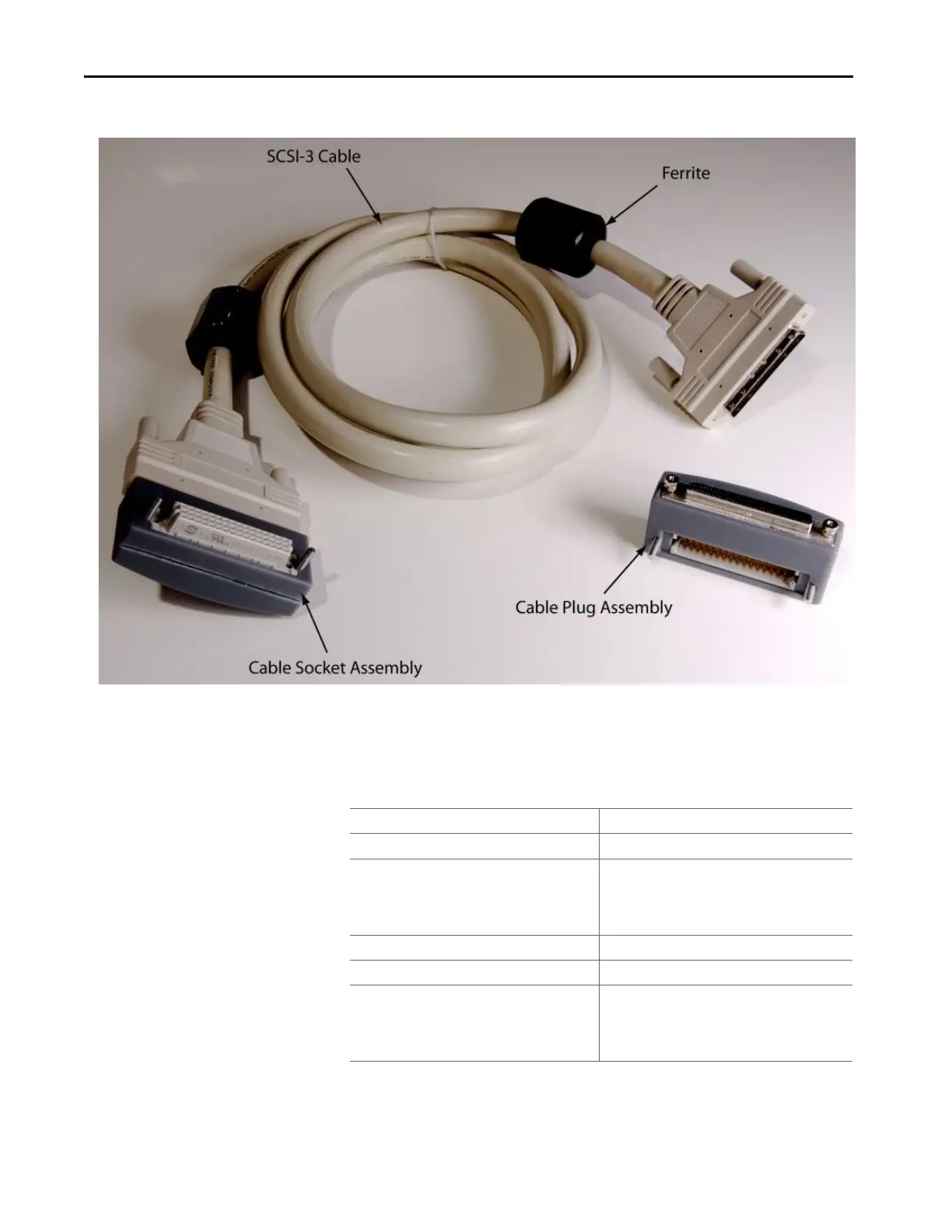

Figure 29 - Expansion Cable
T9310 Extension Cable Specification
Table 26 - T9310 Extension Cable Specification
Attribute Value
Electrical Specification
Carries the following Signals: Command Bus
I/O Response Bus x 24
Backplane 0 V Return
Redundant System +24 Vdc_1 & 2 power supplies
Mechanical Specification
Length 2 m (78.74 in.)
Weight
SCS1-3 Cable Assembly
Cable Plug Assembly
Cable Socket
57 g (2 oz.)
50 g (2 oz.)
50 g (2 oz.)
