Chapter 4 AADvance System Architectures

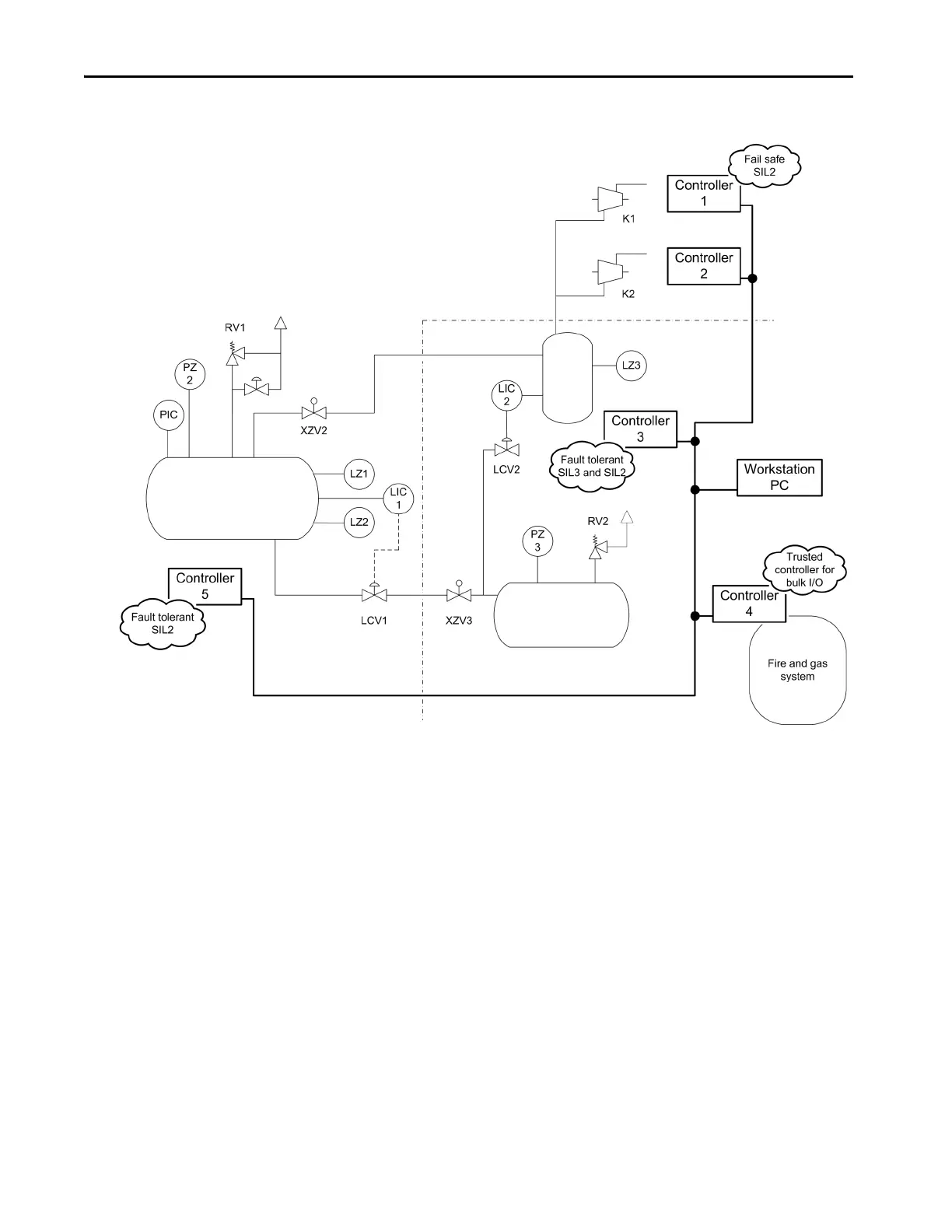

Figure 22 - Distributed System
Typical Network Applications
A usual distributed AADvance system uses two networks:
• An information network, which supplies connectivity to the BPCS
(basic process control system) and to OPC devices
• A dedicated safety network, which handles data shared between the
AADvance controllers
