Rockwell Automation Publication ICSTT-RM447M-EN-P - July 2019 127
Module Overview and Specifications Chapter 7
2
The input slew may exceed the specified levels providing the duration of the
transgression is less than the process safety time of the configured module.

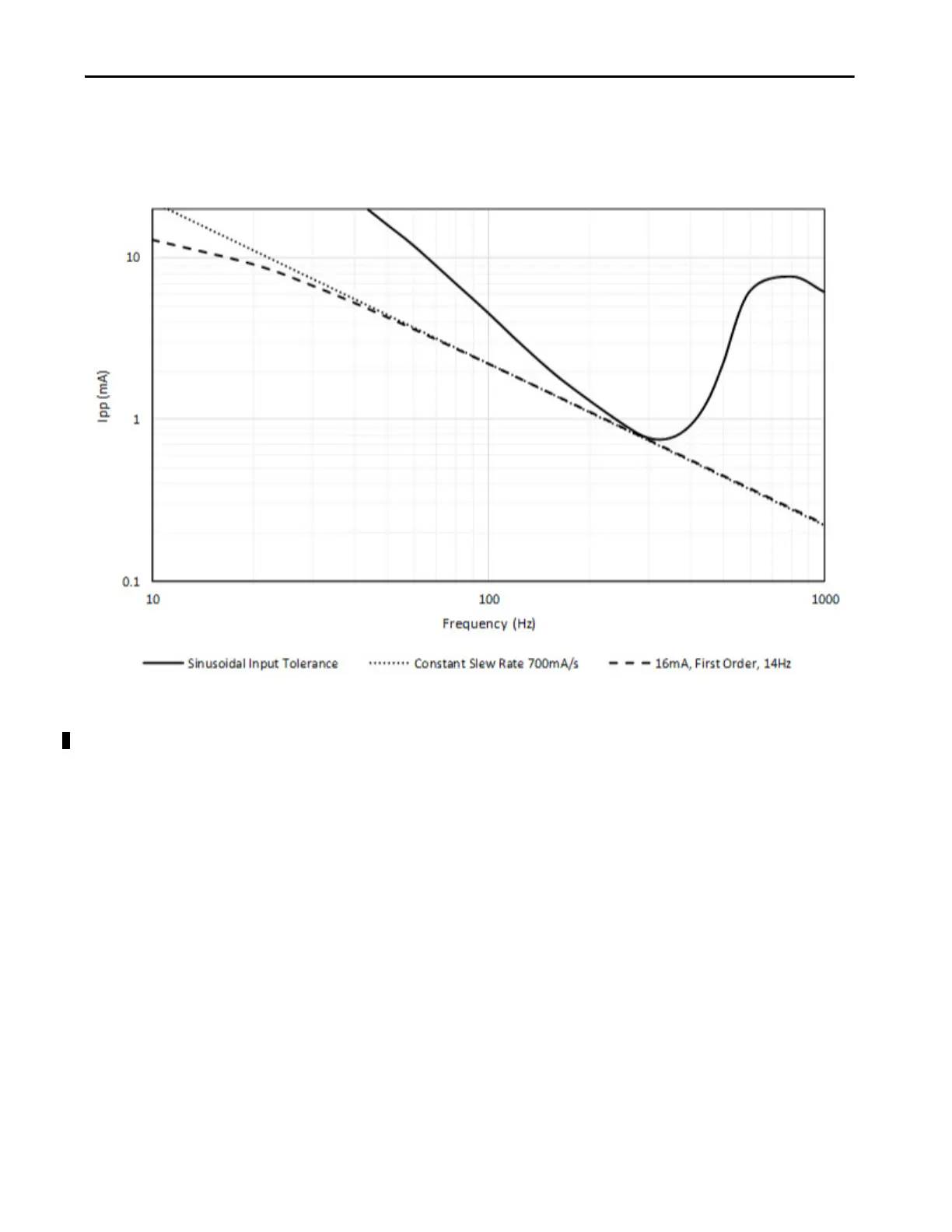

Figure 32 - Analogue Input Slew Tolerance
Transgression of the slew rate limits identified above may lead to channel
failure resulting from diagnostics otherwise designed to verify that channels are
operating within their defined safety accuracy.
T9831/2/3 Termination
Assemblies for Analogue
Inputs
There are three termination assemblies for use with analogue input modules
for simplex, dual and triple modular redundant configurations.
A T9831 termination assembly is for a simplex application and has
terminations for 16 non-isolated analogue inputs. It supports one T9431 or
T9432 analogue input module. The T9832 and T9833 termination assemblies
support 16 isolated analogue inputs for dual and triple modular redundant
arrangements of analogue input modules. Illustrated is the T9832 termination
assembly:
