128 Rockwell Automation Publication ICSTT-RM447M-EN-P - July 2019
Chapter 7 Module Overview and Specifications

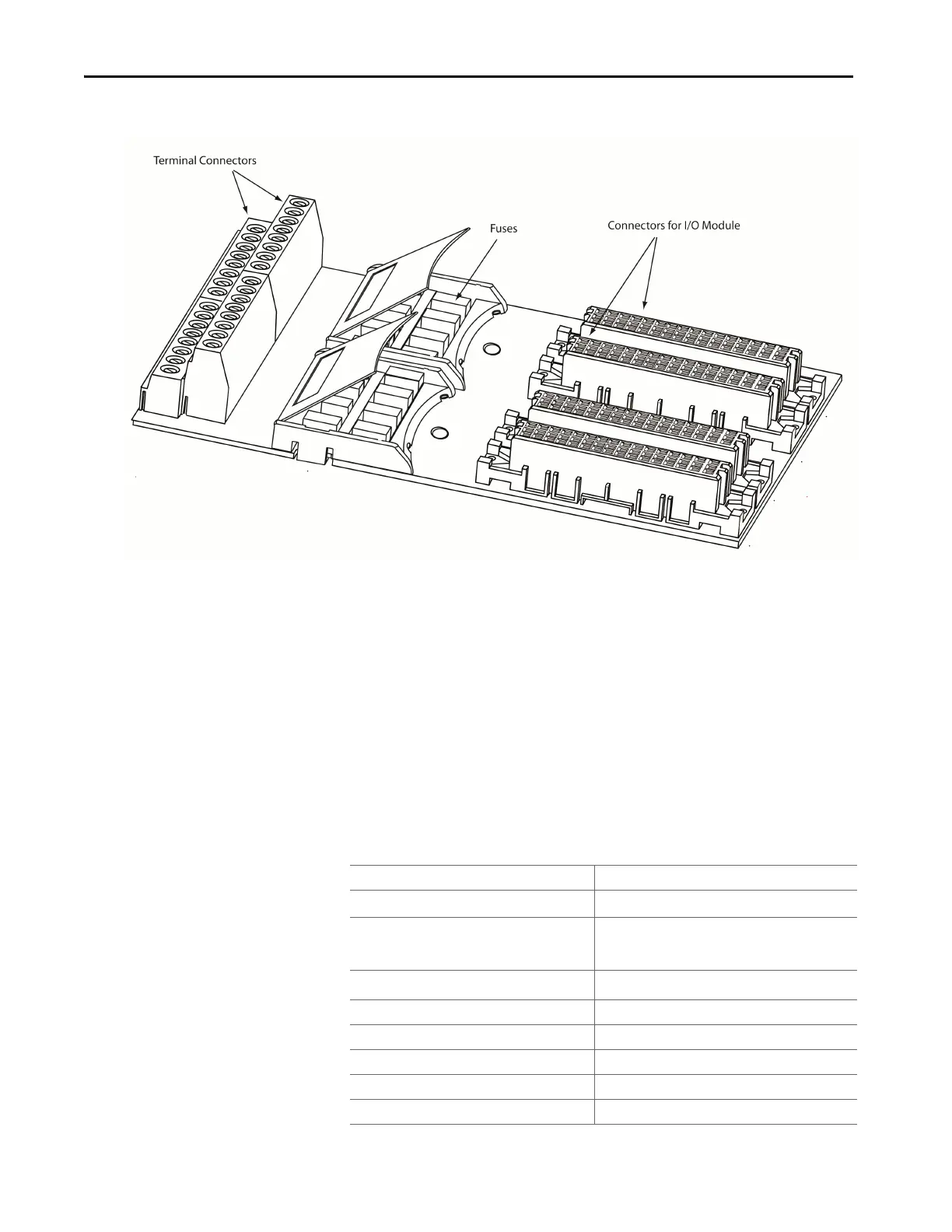

Figure 33 - Digital/Analogue Input Termination assembly
The termination assembly protects each sensor input signal by a 50 mA fuse.
Fuses can be replaced without removing an I/O module or termination
assembly.
Analogue Input Termination Assembly
A T9831 termination assembly is for a simplex configuration and has
terminations for 16 non-isolated digital inputs. The T9832 and T9833
termination assemblies support 16 isolated digital inputs for dual and triple
modular redundant arrangements of digital input modules.
Table 30 - T9831/2/3 Analogue Input TA Specification
Attribute Value
Functional Characteristics
Field connections 16; Wiring: Conductor cross section
maximum 1.31mm² (16 AWG); Stripping length
6mm (¼ in.)
Number of input modules supported
T9831 One
T9832 Two
T9833 Three
Electrical Characteristics
Input channel fuses 50 mA, 125 V, Type T manufactured by Littelfuse
