Controller Internal Bus Structure

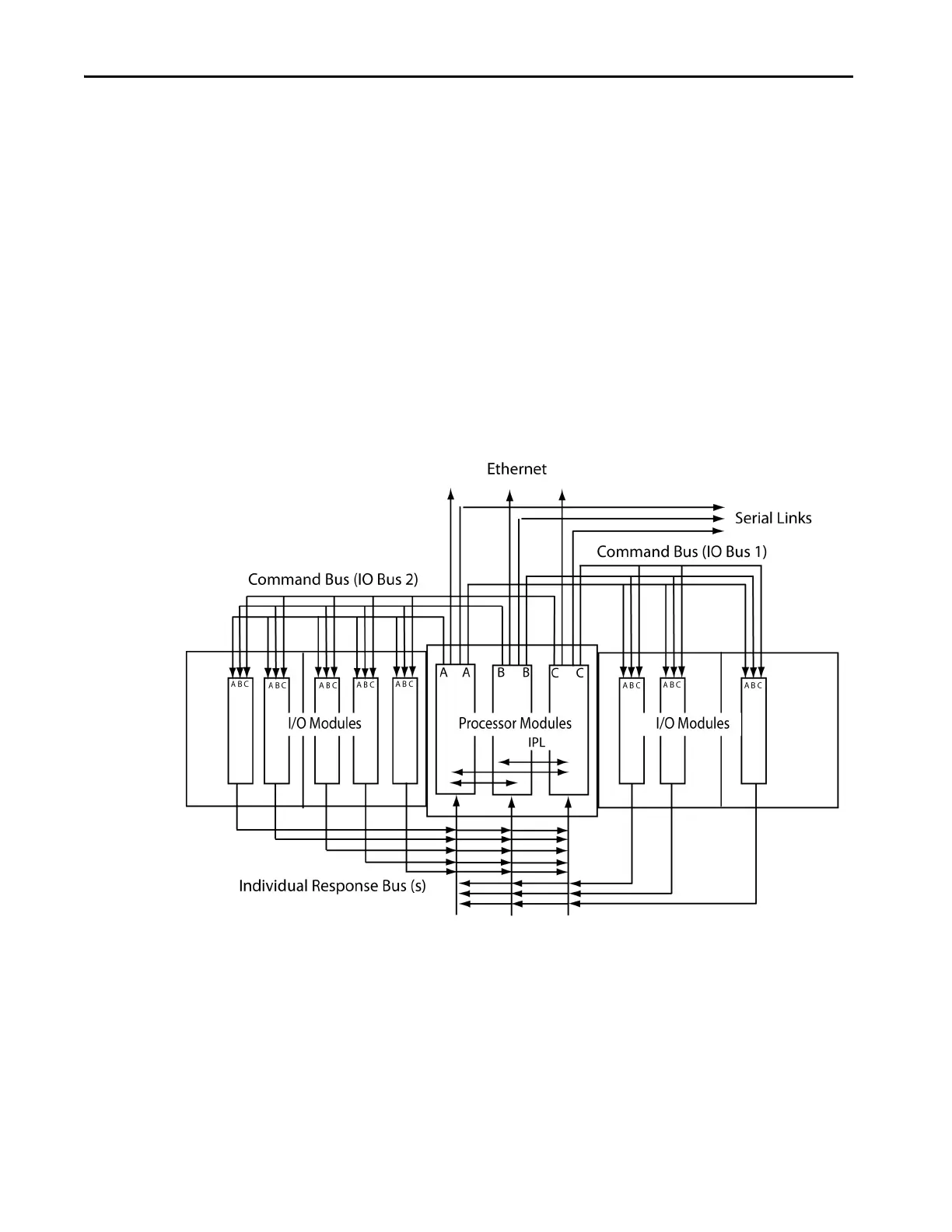

Internal communication between the processor modules and I/O modules is
supported by command and response busses that are routed across the
processor and I/O base units.
The processor modules acts like a communications master, sending commands
to its I/O modules and processing their returned responses. The two command
busses I/O Bus 1 and I/O Bus 2 take the commands from the processor to the
I/O modules on a multi-drop basis. An inter-processor link (IPL) supplies the
communication links between dual or triple processor modules.
Each I/O module has a dedicated response line which returns to the processor.
The unique response line for each I/O module supplies an unambiguous
identification of the source of the I/O data and assists with fault containment.
