Chapter 2 The AADvance Safety Controller
Product Dimensions

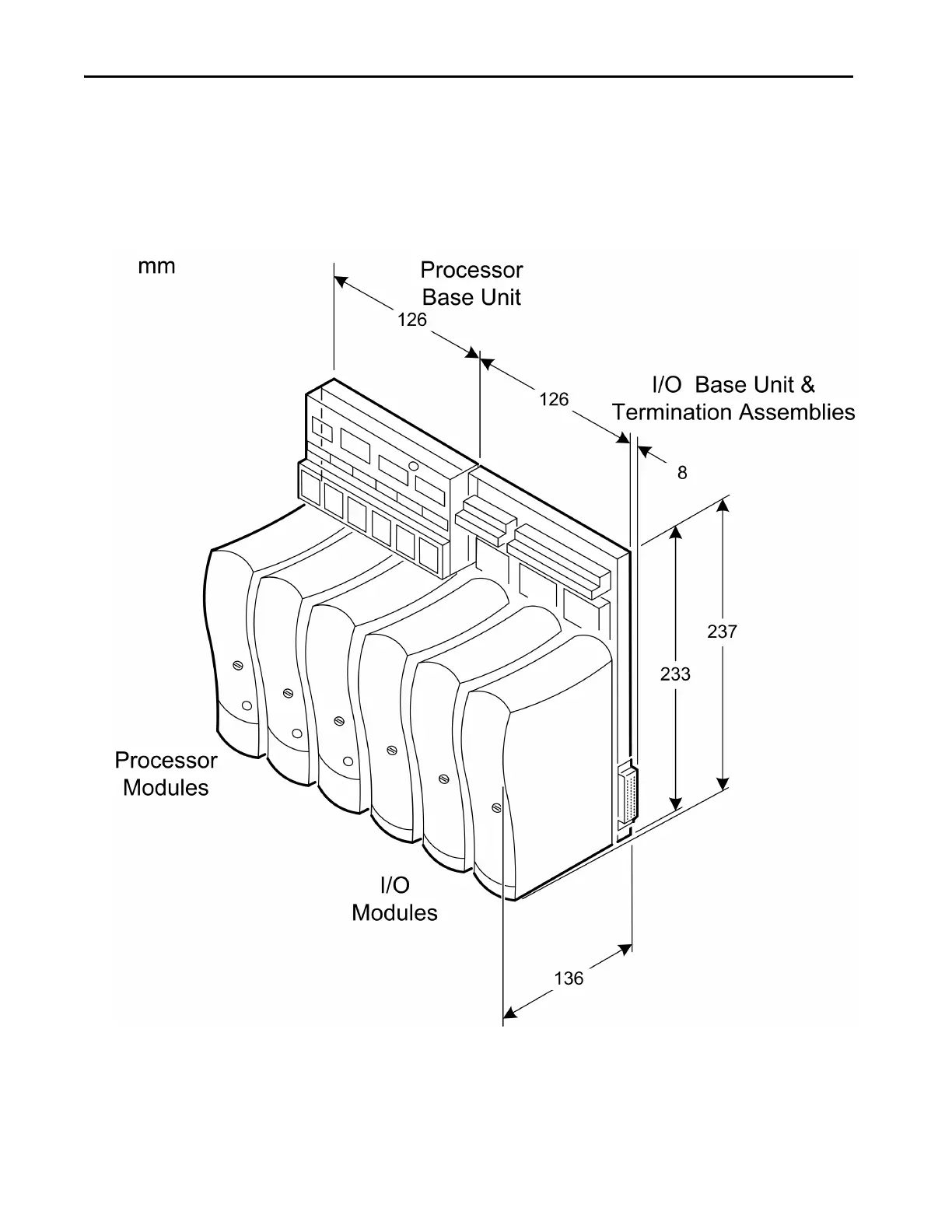

A typical controller arrangement is shown with processor modules installed on
the processor base unit and an I/O base unit mated with the processor base
unit. I/O modules are installed on the base unit and a termination assembly
plugged into the I/O base unit.
