Rockwell Automation Publication ICSTT-RM447M-EN-P - July 2019 41
The AADvance Safety Controller Chapter 2
Table 4 - Summary of Dimensions
The depth of the base unit (18 mm) excludes the parts of the backplane
connectors that mate inside the module connectors. Adding the depth of a
module (118 mm) to the depth of the base unit gives the overall depth of the
controller assembly at 136 mm.
Module Dimensions
All modules have the same dimensions.

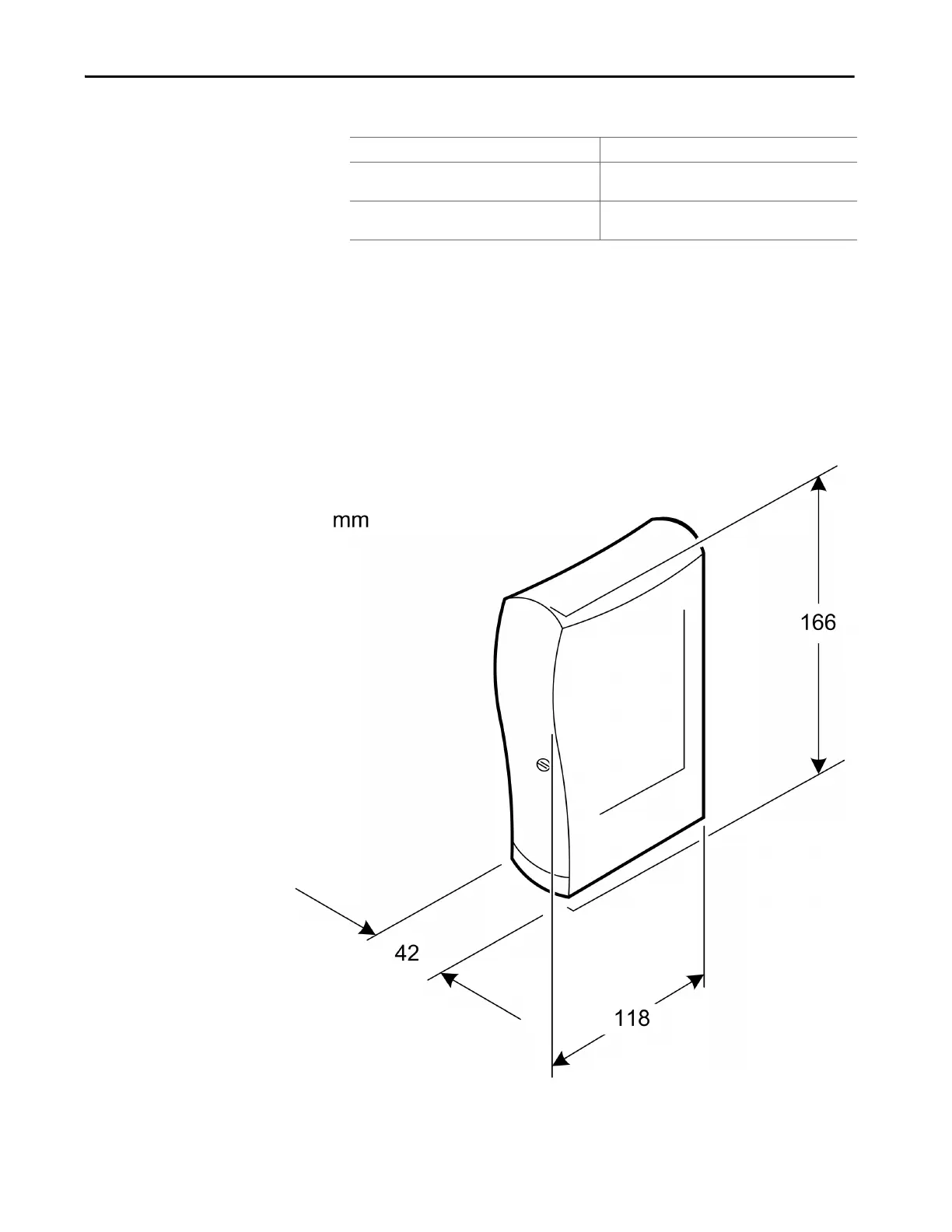

Figure 9 - Module Dimensions
Attribute Value
Base unit dimensions (H × W × D), approx. 233 mm × 126 mm × 18 mm (see text)
(9-¼ in. × 5 in. × ¾ in.)
Module dimensions (H × W × D), approx. 166 mm × 42 mm × 118 mm
(6-½ in. × 1-⅝ in. × 4-⅝ in.)
