Chapter 2 The AADvance Safety Controller
mate with coding pins found on the termination assembly. The alignment
of the sockets and pins make sure that only the matched I/O modules and
termination assemblies can be mated.

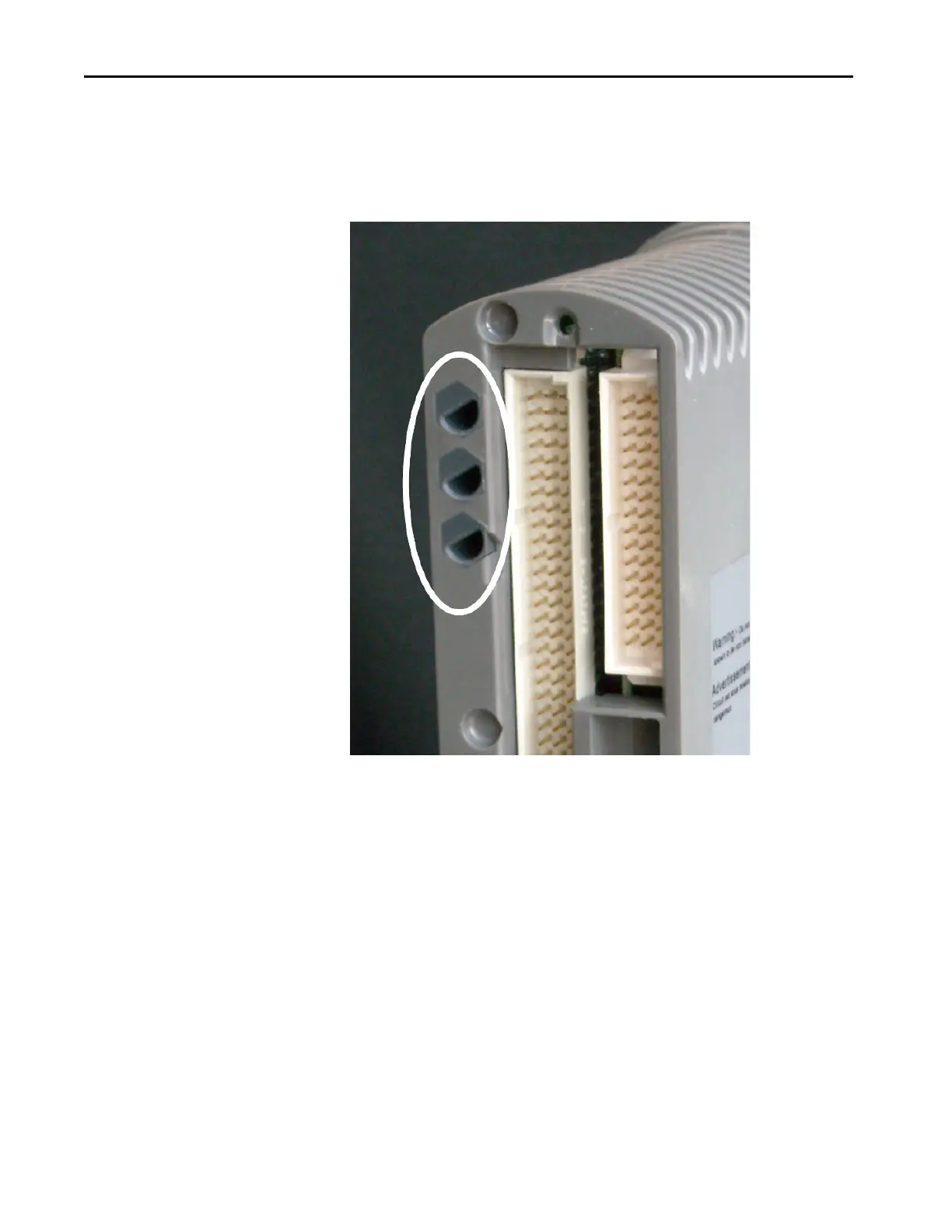

Figure 2 - Coding Sockets
