74 Rockwell Automation Publication ICSTT-RM447M-EN-P - July 2019
Chapter 4 AADvance System Architectures

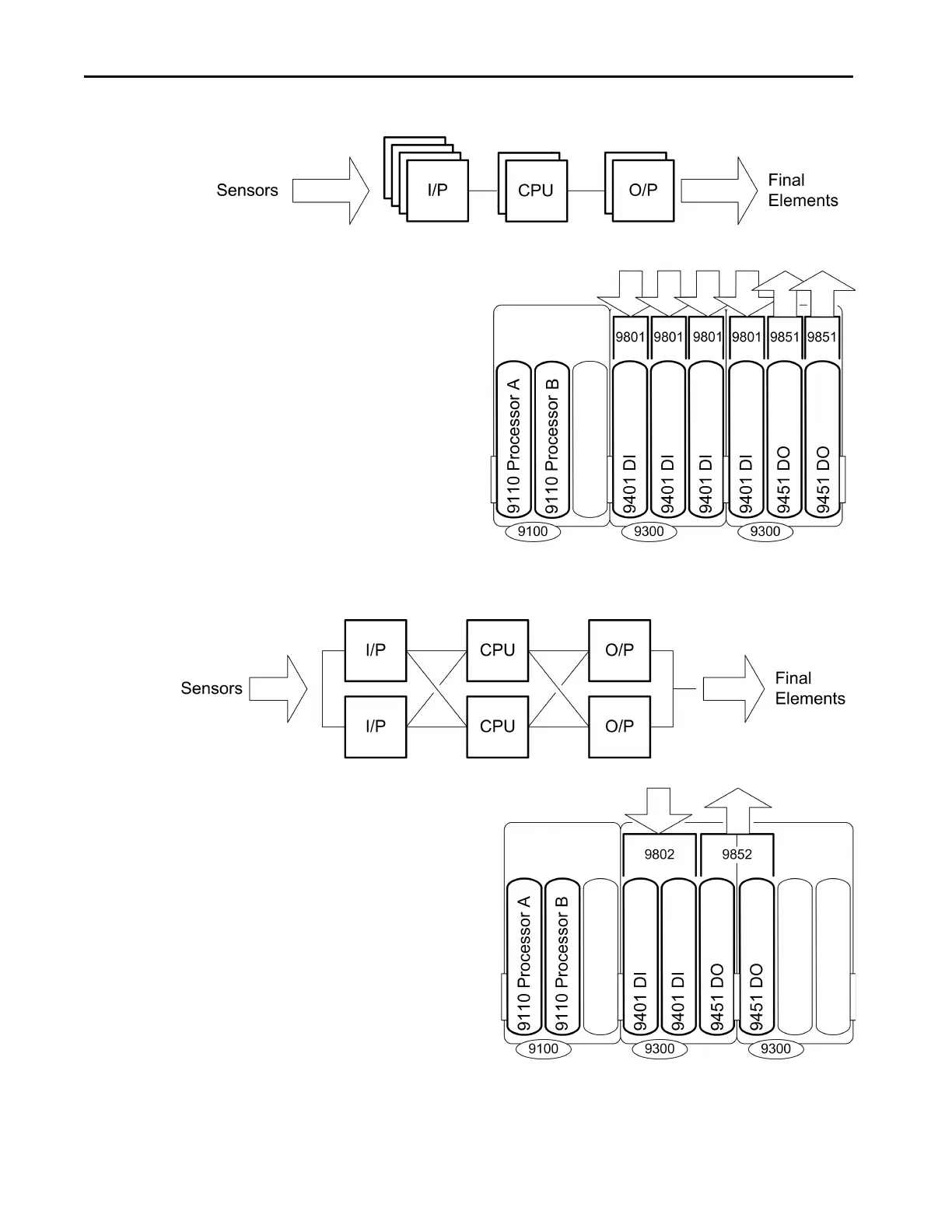

Figure 10 - Example Simplex SIL 2 System
• Output modules in simplex and/or dual arrangements
Figure 11 - Example SIL 3 with Dual Input and Output Modules
An AADvance system can mix different I/O architectures within one
controller — for example simplex and dual input modules with dual processor
