Rockwell Automation Allen-Bradley AADvance T9110 User Manual

78 Rockwell Automation Publication ICSTT-RM447M-EN-P - July 2019
Chapter 4 AADvance System Architectures

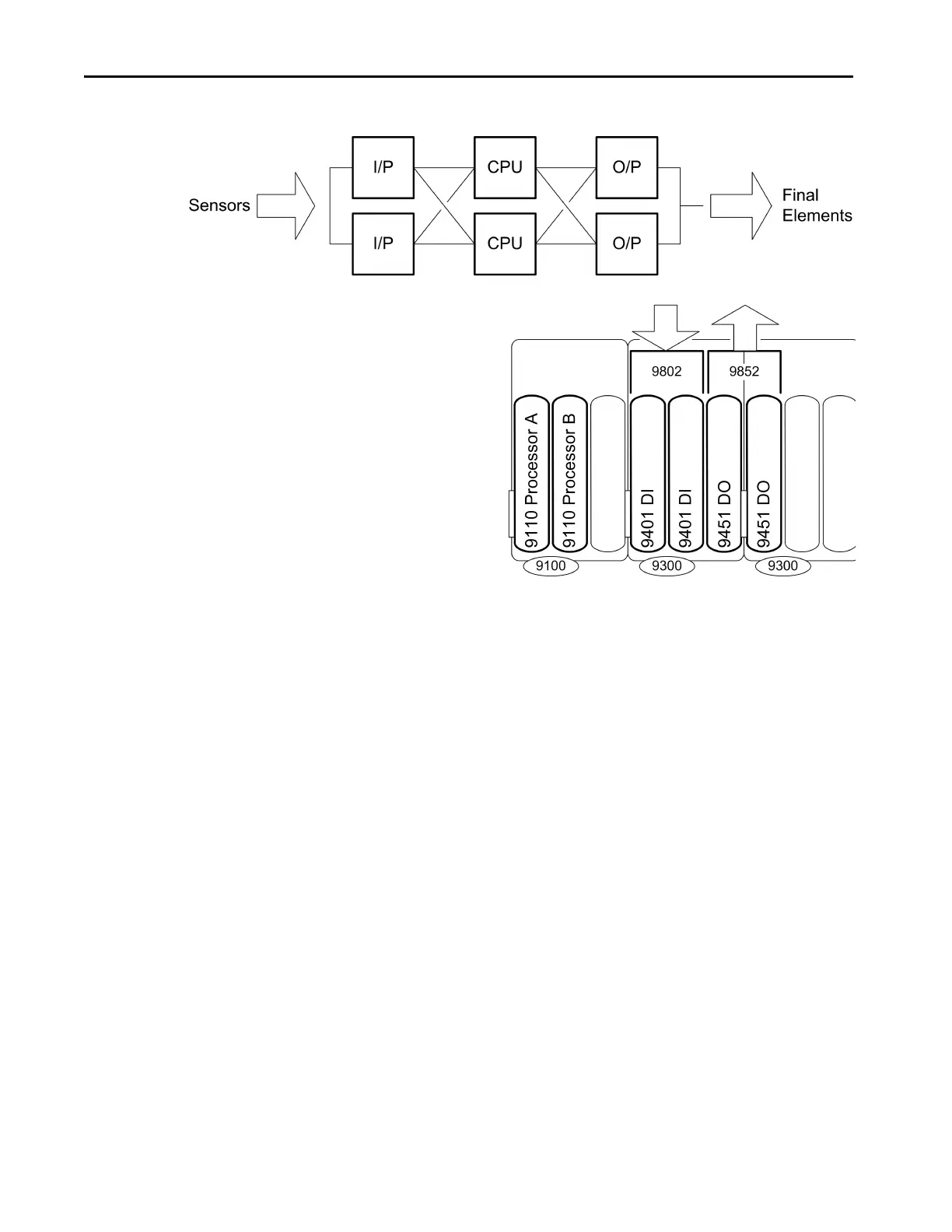

Figure 15 - Dual Inputs, Processor and Output System
Increasing I/O Capacity
The capacity of this controller is increased by adding pairs of I/O modules and
related dual termination assemblies. The subsequent example shows how to
supply 16 inputs and 16 outputs (this could also be 32 inputs if 16 channel
input modules are used). The outputs shown are digital output modules.

Rockwell Automation Allen-Bradley AADvance T9110 Specifications

General

Brand	Rockwell Automation
Model	Allen-Bradley AADvance T9110
Category	Controller
Language	English
