Rockwell Automation Publication ICSTT-RM447M-EN-P - July 2019 83
AADvance System Architectures Chapter 4
inputs (or 32), two duplicated 8 channel inputs (or duplicated 16 channel
versions), and two groups of 8 outputs (one dual, one simplex) for field devices.

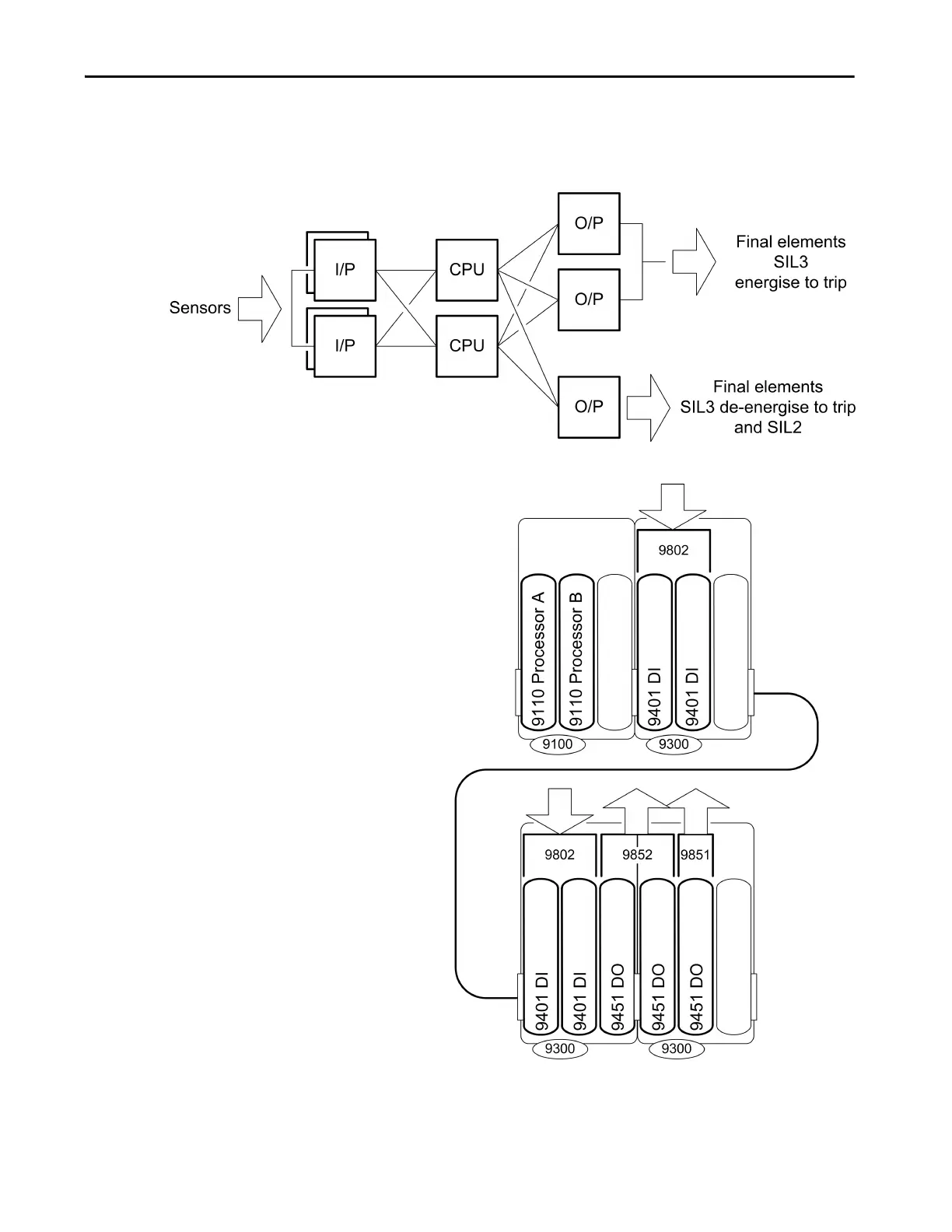

Figure 20 - Mixed Safety System
