38 Rockwell Automation Publication 2198-RM003B-EN-P - November 2020
Chapter 2 Replacement Considerations

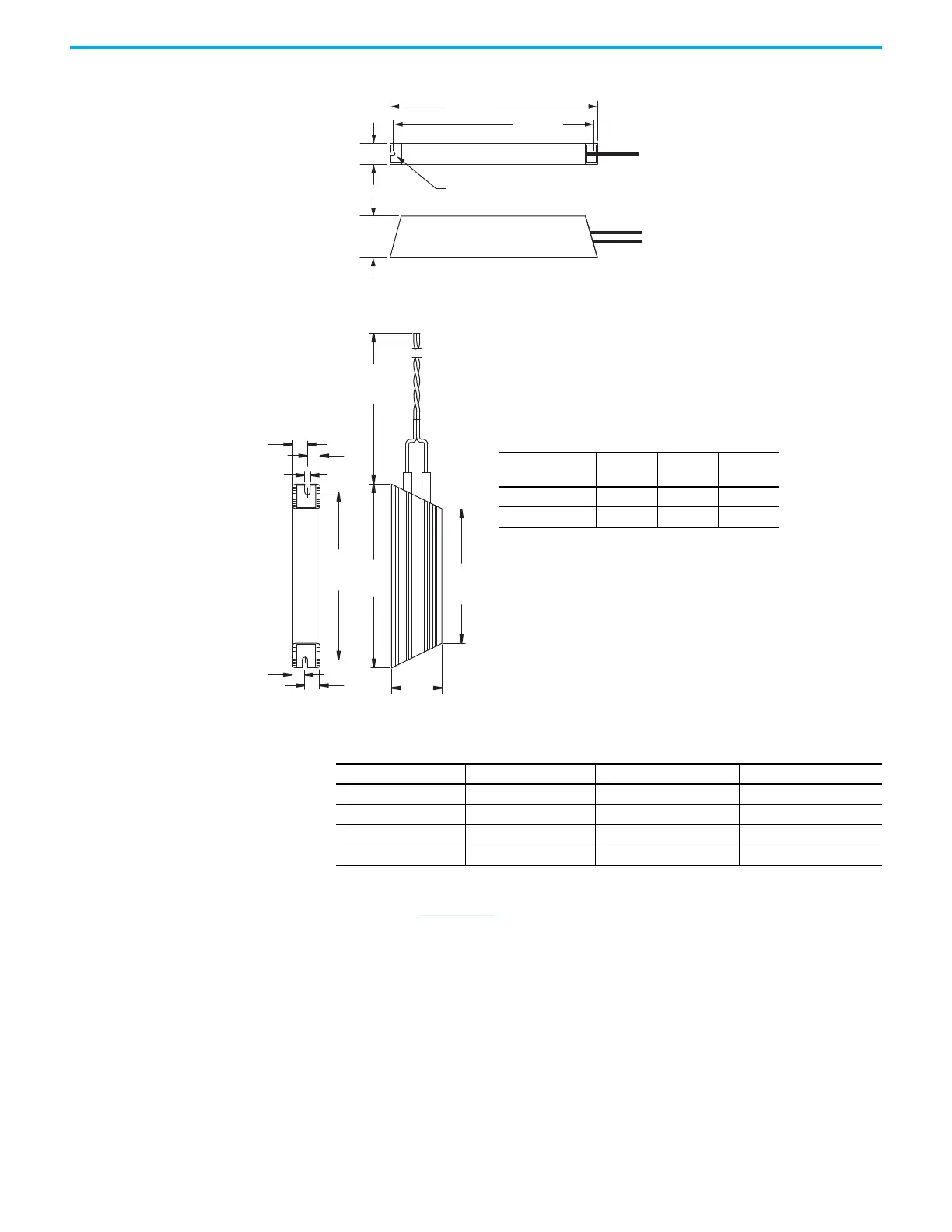

Figure 10 - Product Dimensions: Catalog Number 2198-R004
Figure 11 - Product Dimensions: Catalog Numbers 2097-R6 and 2097-R7
See the Kinetix 5700 Passive Shunt Modules Installation Instructions,
publication 2198-IN011
for information on installing the shunt modules.
Optional Drive Accessories - AC Line Filters
An AC line filter is a key component in achieving CE standards compliance.
The Kinetix 5100, and Ultra3000 drives do not use the same line filters. Once
you select the Kinetix 5100 drive for your application, choose the line filter that
is appropriate for that particular drive. This section describes the
specifications for the line filters used for each drive.
38.1 (1.5)
76.2
(3.0)
292 (11.5)
305 (12.0)
Ø (2)
5.6 (7/32) Mounting Holes
Side View
457 mm (18 in.) 450 °C (842 °F)
High-Temperature Wire Leads
Top View
Dimensions are in mm (in.)
10.0
(0.39)
L2
12.0
(0.47)
4.3
(0.17)
L3
L1
41.0
(1.6)
500
(19.68)
10.0
(0.39)
12.0
(0.47)
Flying Leads
2.5 mm
2
(14 AWG)
Shunt Resistor
Cat. No.
L1 L2 L3
2097-R6 210 (8.3) 197 (7.7) 170 (6.7)
2097-R7 150 (5.9) 137 (5.4) 110 (4.3)
Dimensions are in mm (in.)
Table 39 - 2198-Rx and 2097-Rx Shunt Resistor Specification
Cat. No. Resistance (Ω) Continuous Power (W) Weight, approx kg (lb)
2198-R004 33 400 1.8 (4.0)
2198-R031 33 3100 16.8 (37)
2097-R6 75 150 0.3 (0.7)
2097-R7 150 80 0.2 (0.4)
