56 Rockwell Automation Publication 2198-RM003B-EN-P - November 2020
Chapter 4 Dimensions, Cables, and Wiring
In Figure 25,-xxx is replaced by -030, -075, or 150 to represent the Ultra3000
3 kW, 7.5 kW, and 15 kW drives respectively.

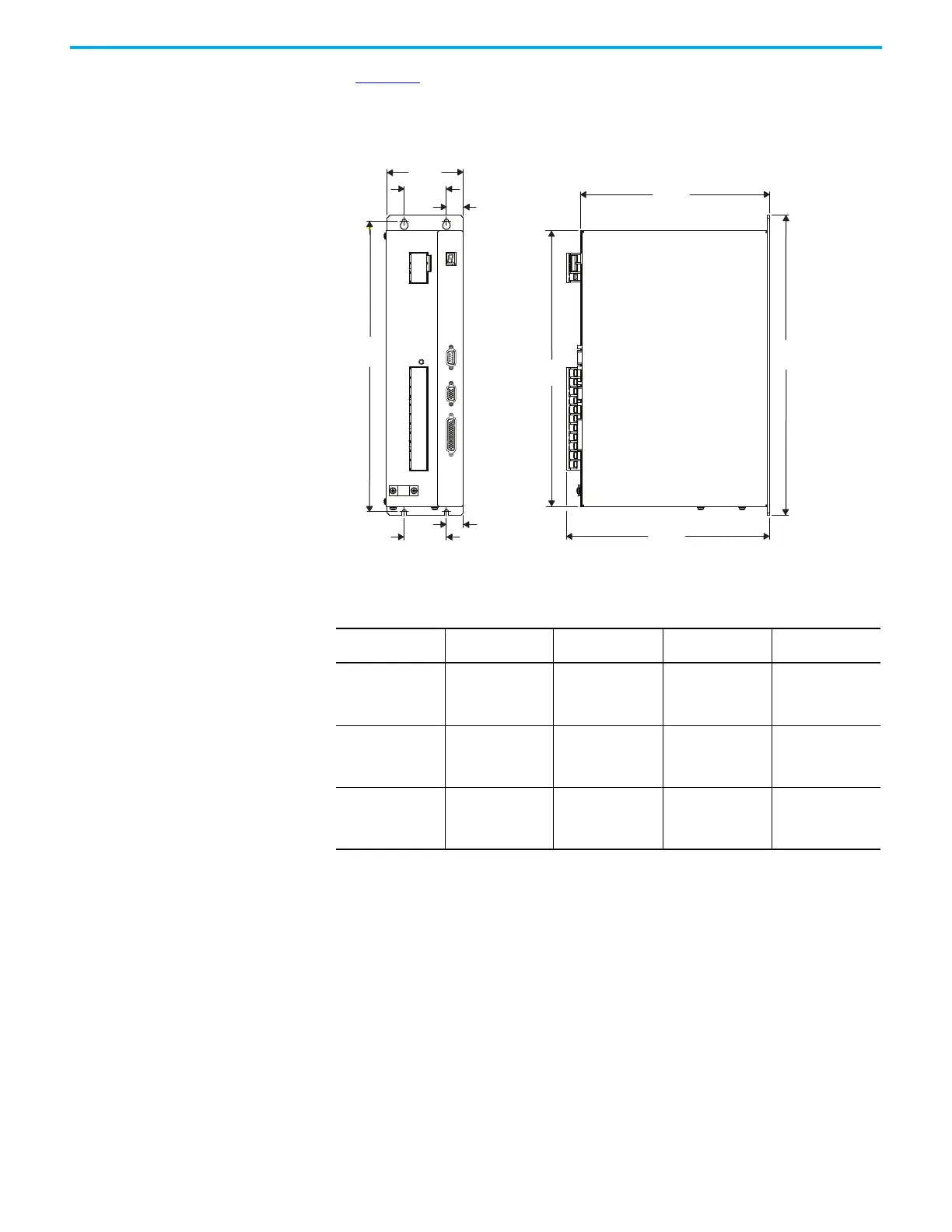

Figure 25 - Ultra3000 (230V) Dimensions in mm (in.) for -030, -075, -150 (Catalog Numbers
2098-DSD-xxx, 2098-DSD-xxxX, 2098-DSD-xxx-DN, and 2098-DSD-xxxX-DN)
Table 51 - Ultra3000 (230V) Dimensions in mm (in.) for -030, -075, -150 (Catalog Numbers
2098-DSD-xxx, 2098-DSD-xxxX, 2098-DSD-xxx-DN, and 2098-DSD-xxxX-DN)
Ultra3000 Drive
A
mm (in.)
B
mm (in.)
C
mm (in.)
J
mm (in.)
2098-DSD-030
2098-DSD-030X
2098-DSD-030-DN
2098-DSD-030X-DN
91.44 (3.6) 50.8 (2.0) 20.32 (0.8) 243.84 (9.6)
2098-DSD-075
2098-DSD-075X
2098-DSD-075-DN
2098-DSD-075X-DN
138.68 (5.41) 88.9 (3.5) 24.89 (0.96) 247.14 (9.73)
2098-DSD-150
2098-DSD-150X
2098-DSD-150-DN
2098-DSD-150X-DN
188.97 (7.44) 139.7 (5.5) 24.6 (0.97) 241.05 (9.49)
Unit that is shown is the 2098-DSD-030 drive.
C
A
349.25
(13.75)
360.68
(14.2)
331.47
(13.05)
B
J
C
B
227.08
(8.94)
