Chapter 4 Dimensions, Cables, and Wiring

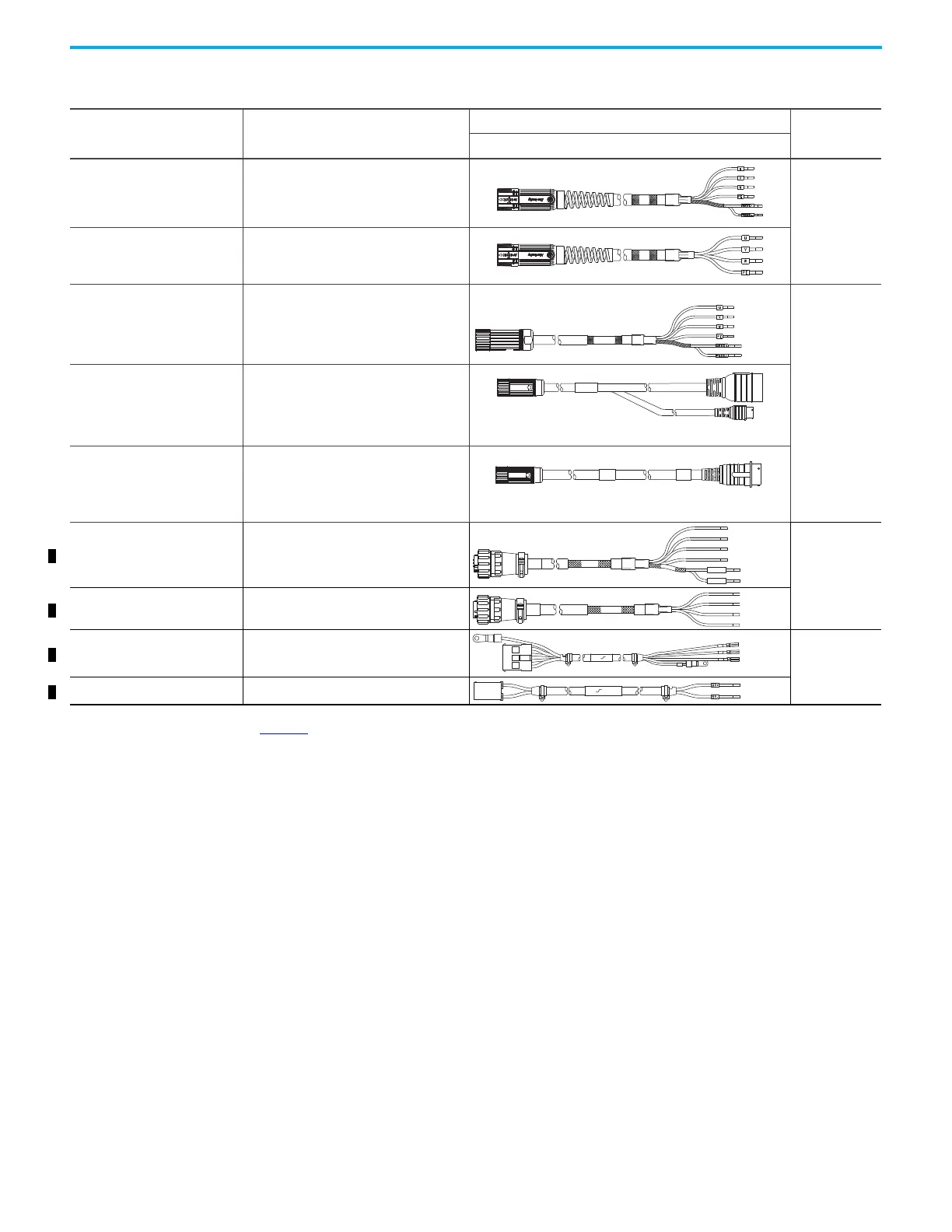

Table 56 - Power/Brake Cable Descriptions (standard, non-flex)
Standard Cable Cat. No. Description
Cable Configuration
Motor/Actuator
Connector
Motor/Actuator End Drive End
2090-CPBM7DF-xxAAxx
Drive-end flying leads (DF)
Power/brake wires (PB)
SpeedTec DIN (M7)
Kinetix MP Motors
2090-CPWM7DF-xxAxx
Drive-end flying leads (DF)
Power wires only (PW)
2090-XXNPMF-xxSxx
Drive-end flying leads
Power/brake wires
Threaded DIN (M4)
Kinetix MP Motors
2090-CPBM4E2-xxTR
Drive-end bayonet (E2), transition (TR) cable
(1)
Motor-end threaded DIN (M4)
Power/brake wires (PB)
2090-CPWM4E2-xxTR
Drive-end bayonet (E2), transition (TR) cable
(1)
Motor-end threaded DIN (M4)
Power wires only (PW)
2090-CPBM6DF-16AAxx
• Drive-end flying-leads (DF)
• Power/brake wires (PB)
Circular Plastic
(M6)
2090-CPWM6DF-16AAxx
• Drive-end flying-leads (DF)
• Power wires only (PW)
2090-DANPT-16Sxx
• Drive-end flying-leads
• Power wires only
Rectangular
Plastic
2090-DANBT-18Sxx Drive-end flying-lead brake wires
(1) Threaded DIN connector (motor end) and bayonet connector for 2090-XXNFMP-Sxx cable. See the 2090-Series Motor Power and Feedback Transition Cables in the Kinetix Motion
Accessories Technical Data, publication KNX-TD004.
MBRK+
MBRK-
