Chapter 4 Dimensions, Cables, and Wiring

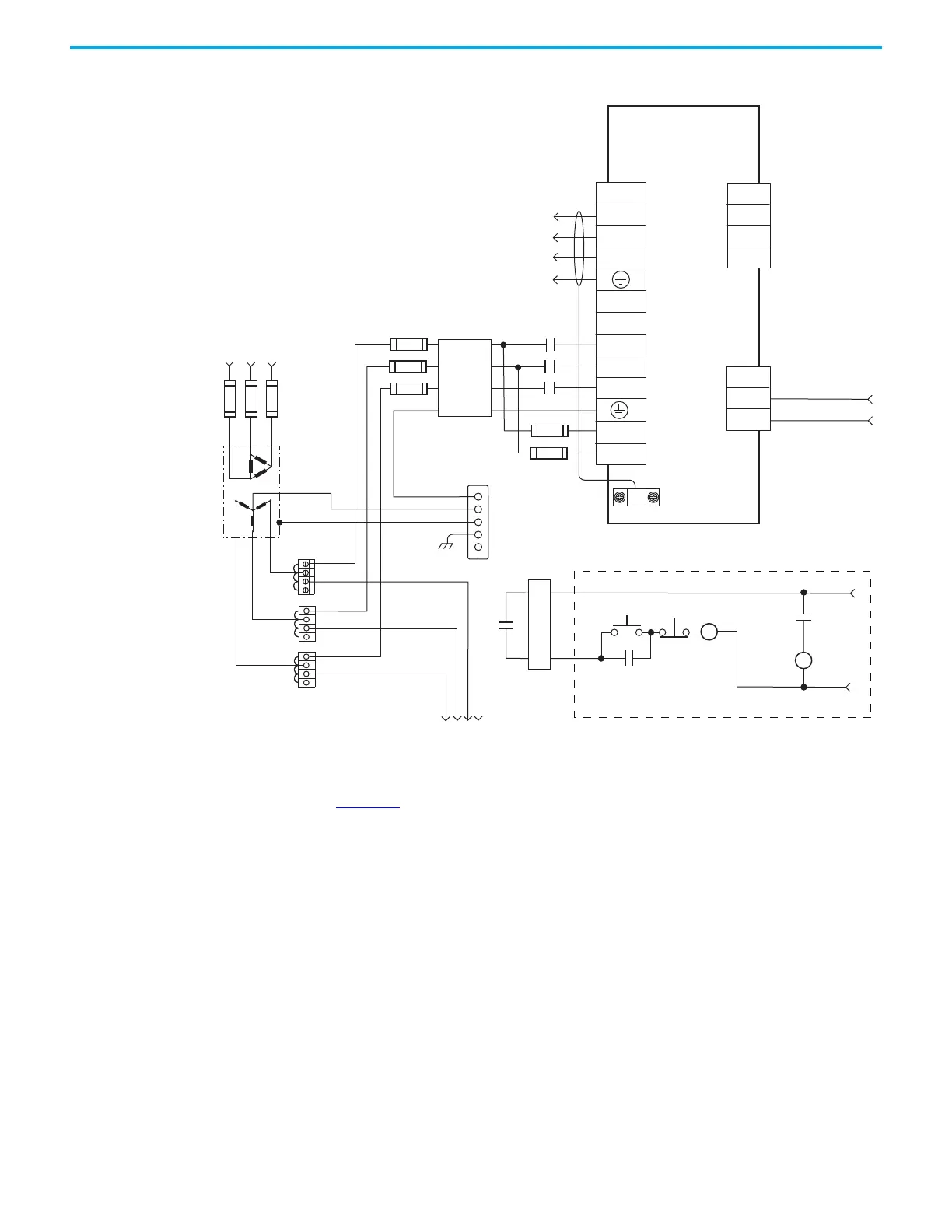

Figure 34 - Typical Power Wiring on Ultra3000 (230V) System (2098-DSD-075x-xx and
2098-DSD-150-x-xx)
Figure 35 is the power wiring diagram with 24V DC control string for the
2098-DSD-HVxxx-xx drives.
TB1
U
V
W
DC+
DC-
L1
L2
L3
L1 AUX
L2/N AUX
L2
L1
CN1
43
44
L3
TB2
1
2
3
43
44
CN1
43
44
2098-DSD-075 x-xx and,
2098-DSD-150 x-xx
Ultra3000
Digital Servo Drives
AC Input Power
Connections
Motor Power
Connections
Three-
AC Line
Input Fusing *
Three-phase Input
100...240V AC rms
Fused Disconnect
or Circuit Breaker *
Isolation
Transformer *
Chassis
Bonded Cabinet
Ground Bus *
Terminal
Blocks *
To additional
Ultra3000 drive
Three-phase
Motor Power
Connections
Cable Shield
Clamp
* Indicates User-supplied Component
STOP *
START *
CR1 *
CR1 *
CR1 *
M1 *
N.O. Relay Output+
N.O. Relay Output-
24V DC
Neutral
M1 *
External Passive
Shunt Connections
Three-phase AC Line
50/60 Hz
Input Fusing *
phase
Filter
