Rockwell Automation Publication 7000-UM202H-EN-P - November 2023 133
Chapter 3 Control Component Definition and Maintenance

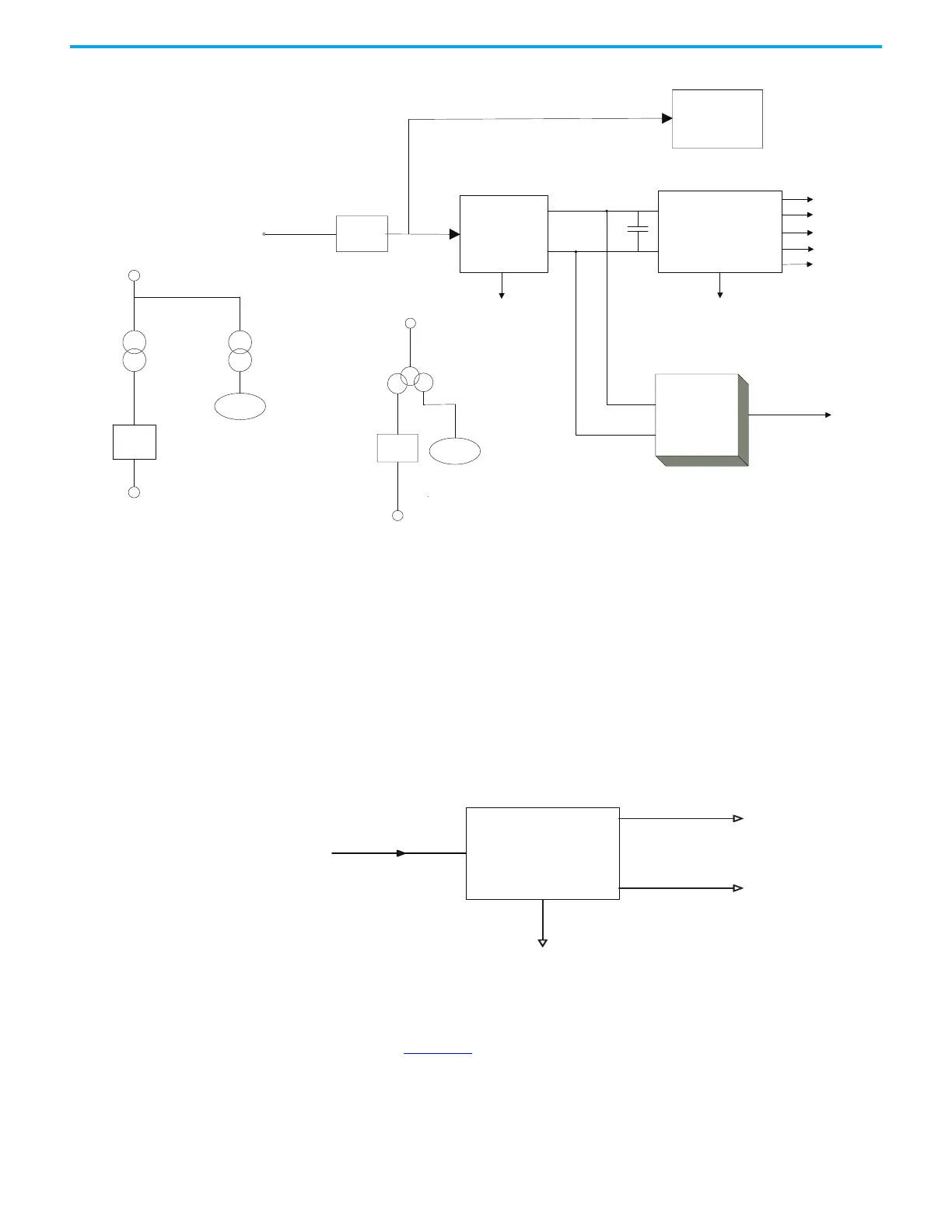

Figure 113 - AFE/18-pulse Remote Transformer / Starter
(1) Cosel power supply output is 57V DC, Pioneer power supply output (Heatpipe drives only) is 56V DC.
AC/DC Power Supply The load demands on the AC/DC converters are the DC/DC converter and up
to six IGDPS modules (up to three IGDPS modules for SPS drives). The
DC/DC is a fixed load; however, the quantity of IGDPS modules will vary
depending upon the drive configuration and whether SPS modules are used.
The AC/DC power supply accepts single phase voltage and produces a
regulated 57V DC
(a)
output for the DC/DC power supply and the HV IGDPS
modules that power the SGCTs. The input and output voltages are monitored
and fail signals are annunciated upon either voltage going below a pre-set
level.
Figure 114 - AC/DC Converter Power Supply
(1) Cosel Power Supply output is 57V DC, Pioneer Power Supply output is 56V DC
DC FAIL: Upon loss of DC output (V outputs ≤ 49V DC) this output goes from
low to high. The AC/DC power supply is located in the low voltage panel at the
top right-hand section of the drive. A typical low voltage compartment is
shown in Figure 115
.
18-pulse
AFE
DC/DC Converter
AC/DC Converter
(1)
600 W/ 1000W/
1500 W
Line
Filter
Customer
Supplier
120V 1 PH
- Operator Interface
- Relays
C Hold-up
Sense Cable
20V Isolated Gate
Driver Power
Supply
Inverter only for SPS Drives
20V
24V-Isolators
24V-XIO
+/-24V-HECS
+/-15V Logic
5V-Logic
VFD
Fan
380V 50 Hz
or
460V 60 Hz
3 PH
Tx Fan
VFD
Fan
Tx Fan
380V 50 Hz
or
460V 60 Hz
3 PH
(a) Cosel power supply output is 57V DC, Pioneer power supply output (Heatpipe drives only) is 56V DC.
AC/DC Power Supply
(1)
600 W/ 1000 W/1500 W
HV IGDPS
Power
Supply
DC/DC Power
Supply
DC Fail
Single Phase
95…265V AC
47…63 Hz
0.98PF@1000 W or
0.98PF@1500 W
To Next Page
