Rockwell Automation Publication 7000-UM202H-EN-P - November 2023 27
Chapter 2 Power Component Definition and Maintenance
Control / Cabling Cabinet
Components
For converter cabinets, see Converter Cabinet Components on page 51.
For DC link/fan cabinets, see DC Link Cabinet Components
on page 108.

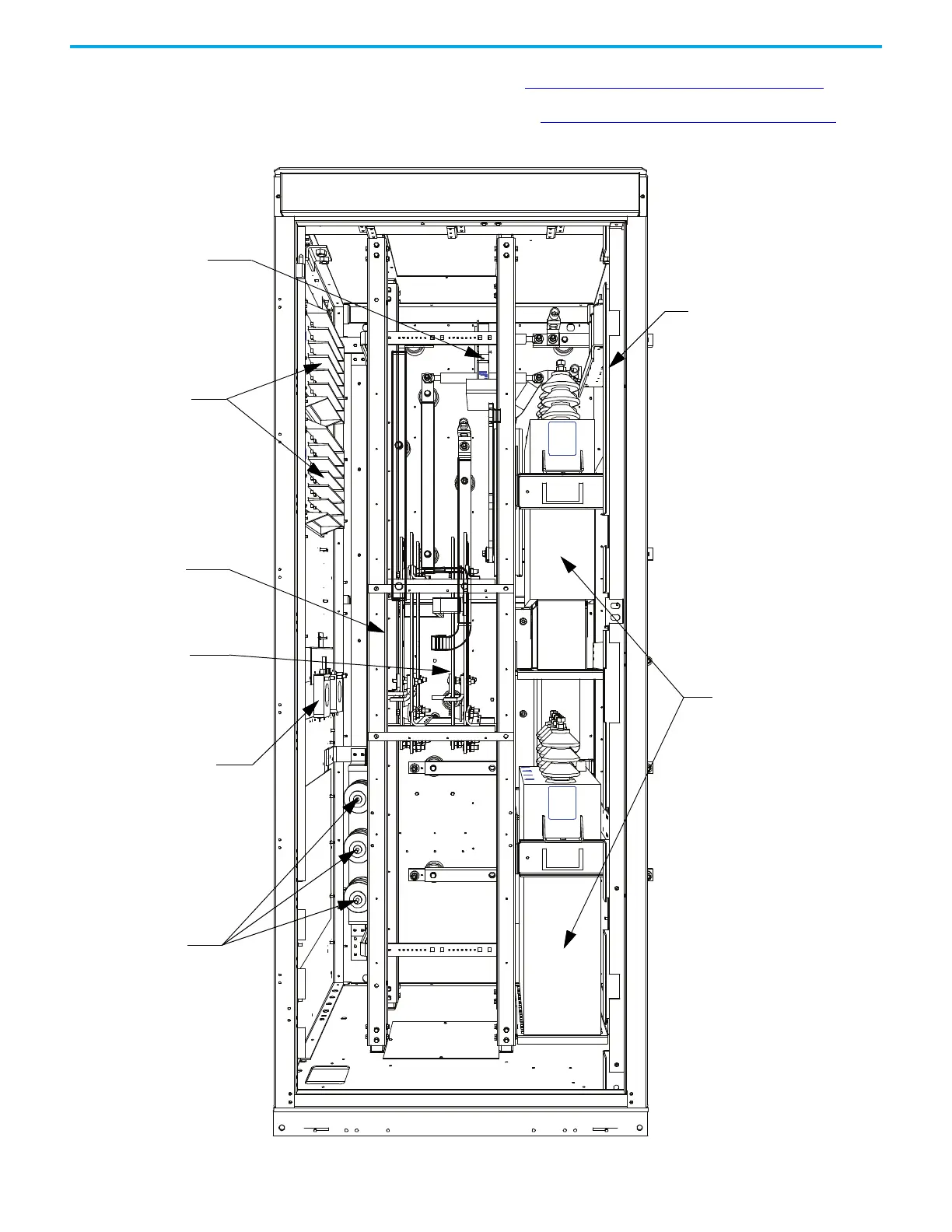

Figure 20 - Cabling Cabinet for AFE Rectifier (Heatsink Model)
Grounding Network (For use
with Isolation Transformer)
or
Ground Filter (For use with
Line Reactor)
Motor Filter Capacitors
Hall Effect Sensors
Sensing Boards
Line Terminals
Motor Terminals
Current Transformers
Surge Arresters
To Next Page
