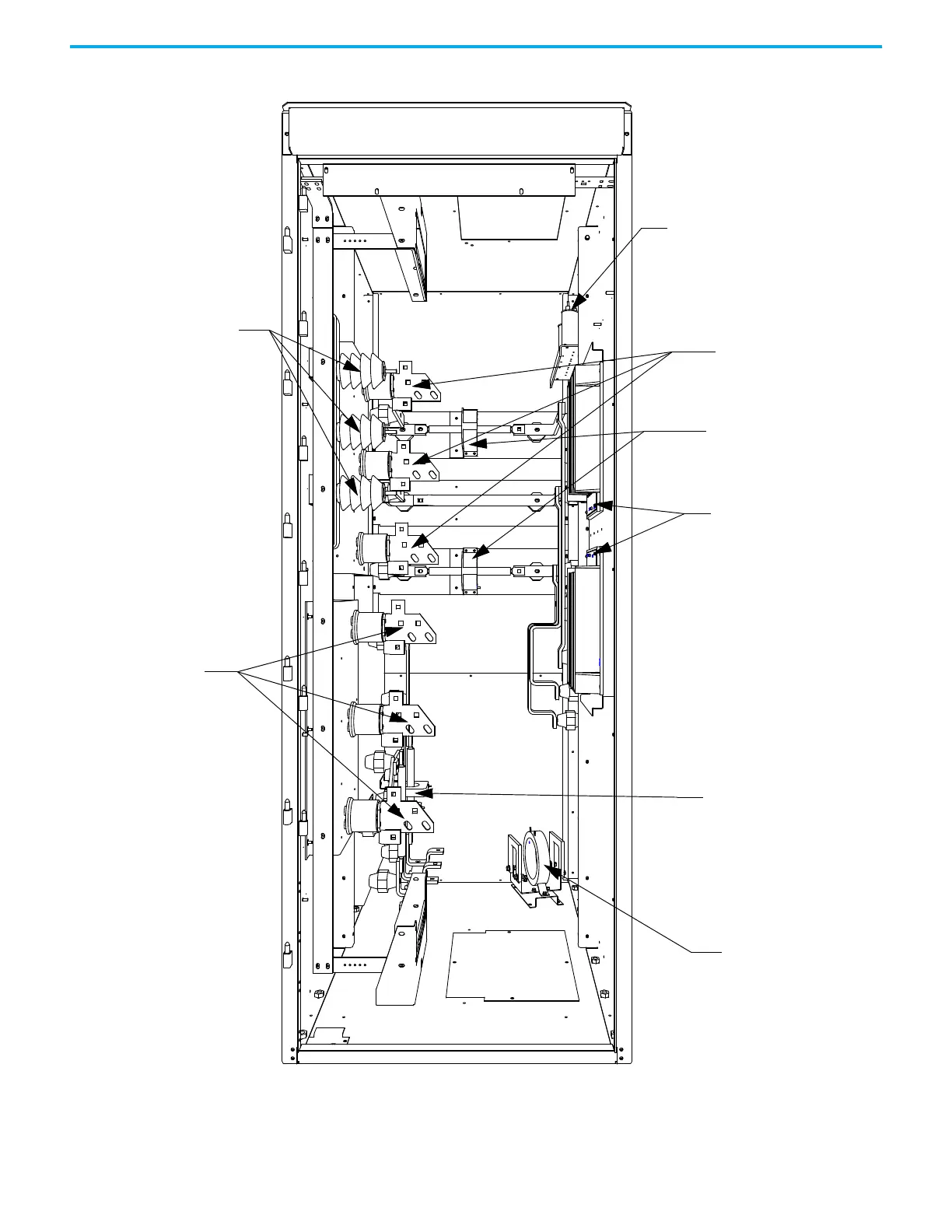

Figure 21 - Cabling Cabinet for AFE Rectifier (Heatpipe Model)
Grounding Network (For use
with Isolation Transformer)
or
Ground Filter (For use with
Line Reactor)
Surge Arresters
Voltage Sensing Boards
Line Terminals
Current Transformers
Zero Sequence Current
Transformer (used with
Line Reactor)
Motor Terminals
Hall Effect Current
Sensors
