Rockwell Automation Publication 7000-UM202H-EN-P - November 2023 29

Chapter 2 Power Component Definition and Maintenance

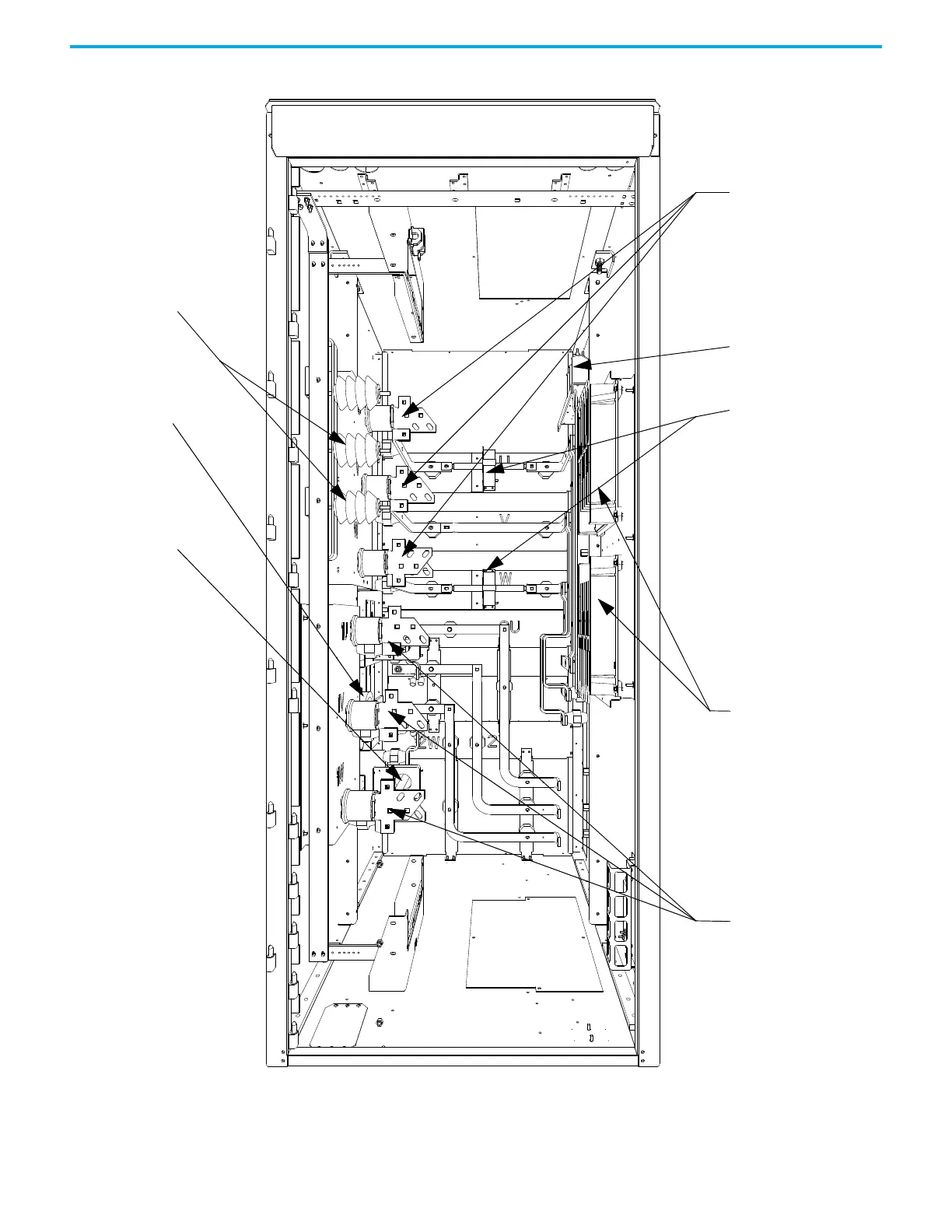

Figure 22 - Cabling Cabinet for AFE Rectifier (6600V Heatpipe Model)

Surge Arrestors

Zero Sequence

Current

Transformer

Current Transformer

Grounding Filter (for

use with Line Reactor)

Hall Effect Current

Sensors

Voltage Sensing Boards

Motor Terminals

Line Terminals
