Rockwell Automation Publication 7000-UM202H-EN-P - November 2023 155
Chapter 3 Control Component Definition and Maintenance
Status Indicators
There are two power status indicators on the ACB labeled D7 and D9:
• D9 is the ±15V DC voltage-OK signal
• D7 is the +5V DC voltage present signal.
Interface Module (IFM)
The interface module makes all your connections to the ACB. The pin numbers
listed on the following pages refer to the IFM pin numbers.

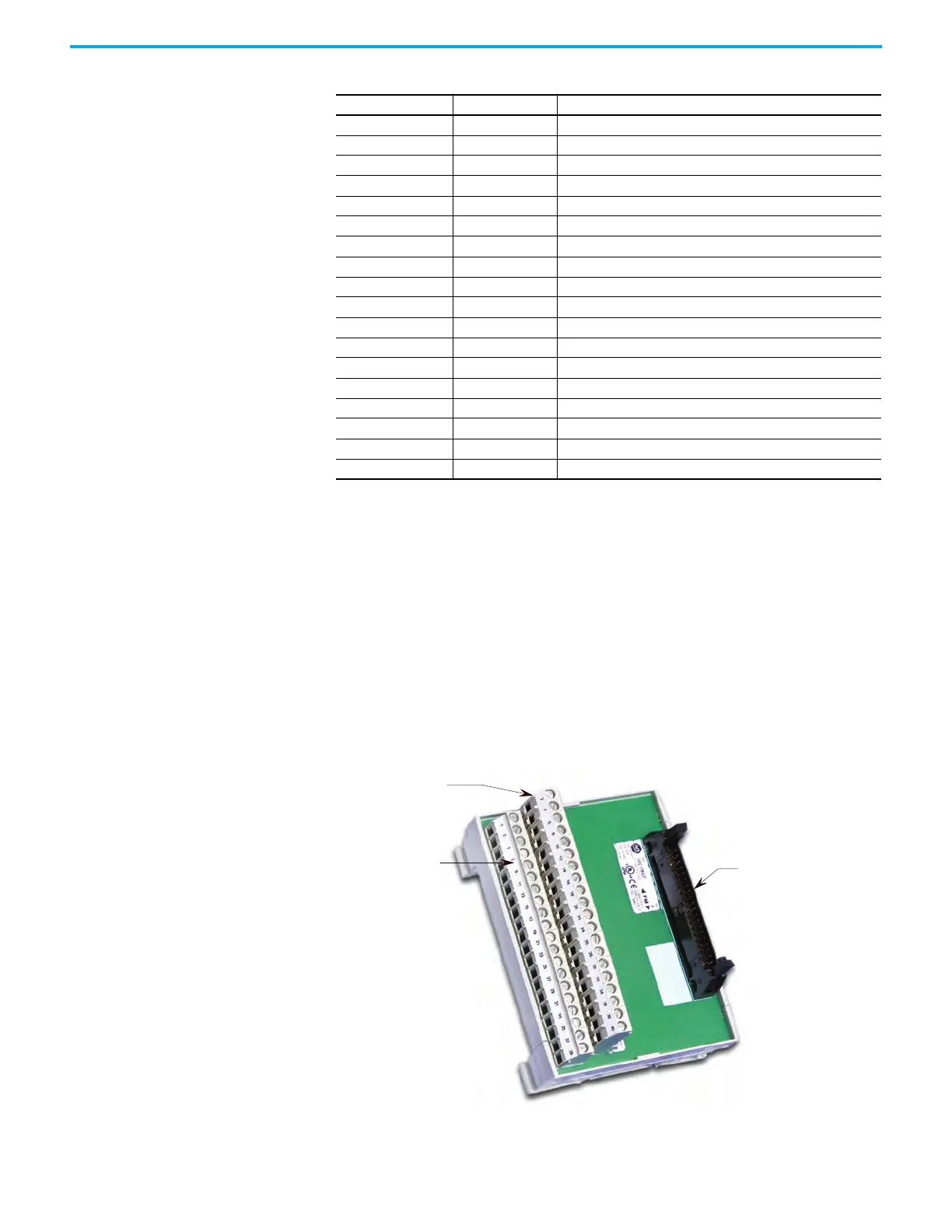

Figure 131 - Interface Module (IFM)
ACB-TP66 DGND Digital ground
ACB-TP67 AGND Analog ground
ACB-TP68 AP1 Analog control inputs, air pressure input, AP1
ACB-TP69 AP0 Analog control inputs, air pressure input, AP0
ACB-TP70 AIN1 Analog control input, AIN1
ACB-TP71 AIN2 Analog control input, AIN2
ACB-TP72 AIN0 Analog control input, AIN0
ACB-TP73 AIN3 Analog control input, AIN3
ACB-TP74 IPIS Input isolating switch
ACB-TP75 IPCS Input contactor status
ACB-TP76 IP Input contactor command
ACB-TP77 OPIS Output isolating switch
ACB-TP78 OPCS Output contactor status
ACB-TP79 OP Output contactor command
ACB-TP80 BPIS Bypass isolating switch
ACB-TP81 BPCS Bypass contactor status
ACB-TP82 BP Bypass contactor command
ACB-TP83 DGND Digital ground return
Table 13 - Test Points on Analog Control Board (Continued)
Test points Name Description
Even pin numbers
Odd pin numbers
Connection to ACB (J8)
To Next Page
