Chapter 3 Control Component Definition and Maintenance

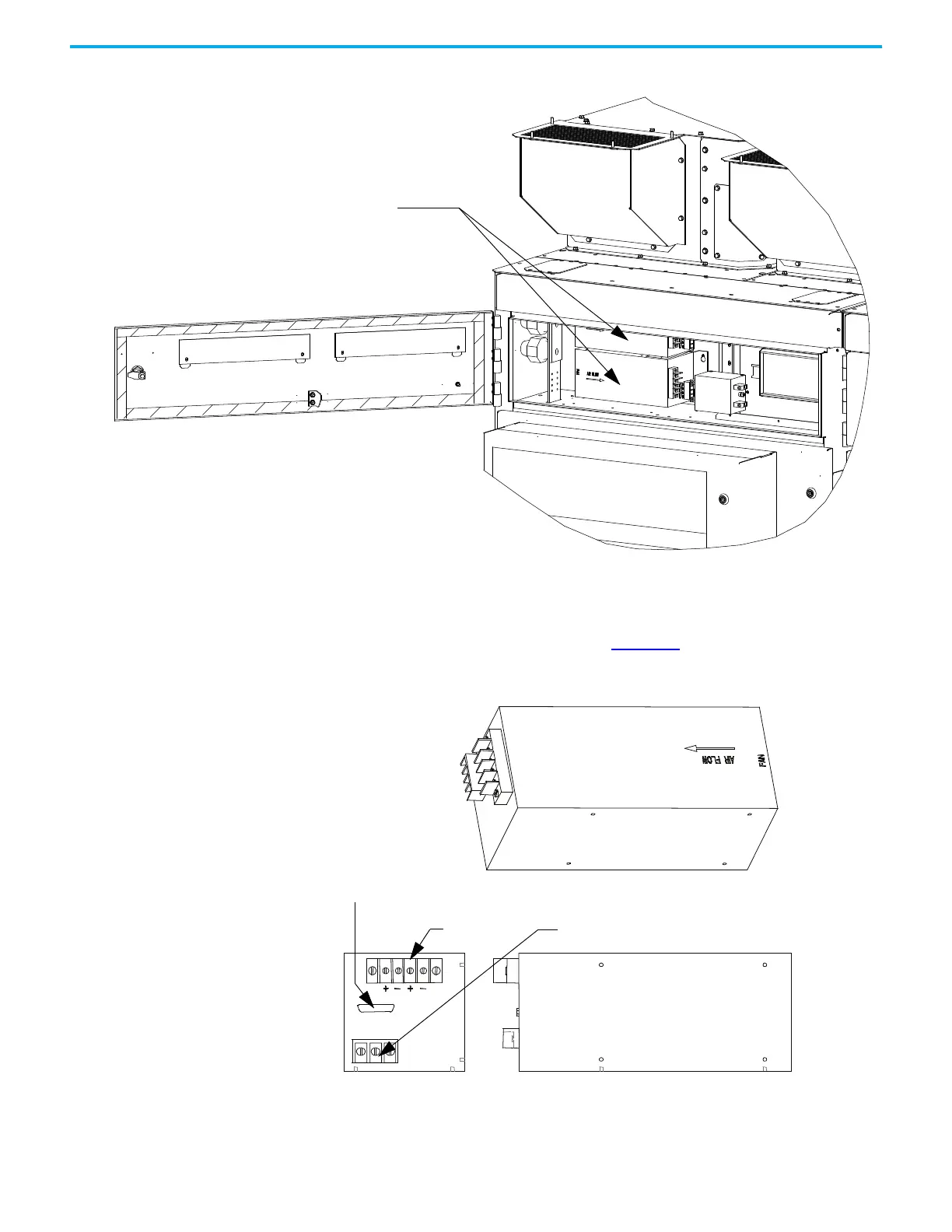

Figure 116 - Location of AC/DC Power Supply on LV Panel (Heatpipe Model)
Terminal / Connections Descriptions (Pioneer Power Supply)
The terminal connections are shown in Figure 117.
Figure 117 - Terminal Locations on AC/DC (Pioneer) Power Supply
AC/DC Power Supply in LV
compartments above
converter section
Earth
Line
Neutral
FRONT VIEW
TOP
VIEW
Single Phase Input
DC Outputs
Control
Signals
