Chapter 2 Power Component Definition and Maintenance

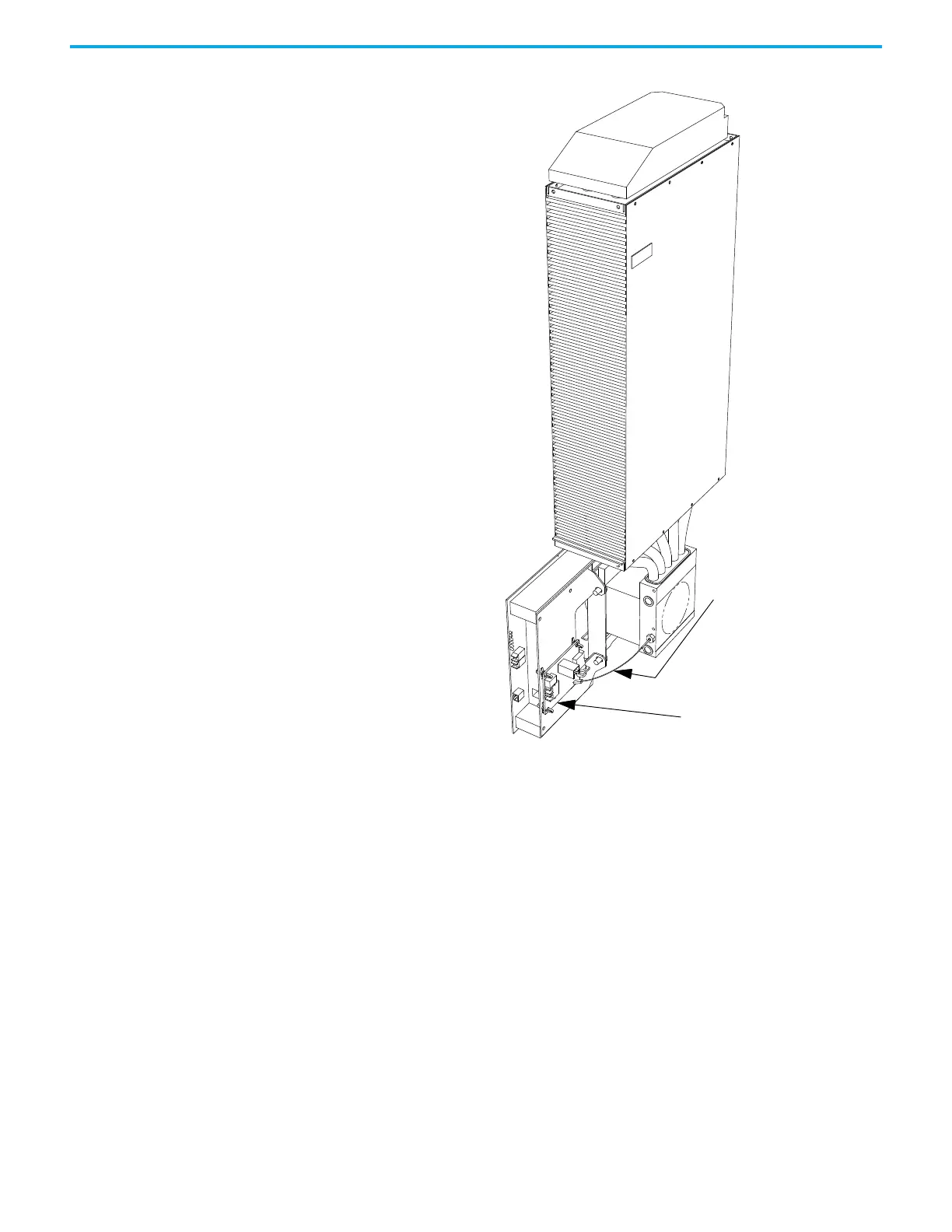

Figure 83 - Thermal Sensor Replacement (Heatpipe Model)
Replacing Heatsinks/
Heatpipes
There are three different styles of heatsinks and one type of heatpipe used in
PowerFlex 7000 air-cooled drives, depending on thermal requirements:
• Aluminum type W heatsinks have a plurality of short internal fins along
the internal surfaces
• Aluminum type M heatsinks have internal fins with flat surfaces.
• Copper heatsinks have internal fins made from folded copper foil
• Heatpipes have a stack of aluminum fins
Thermal sensor
plugs into feedback
circuit board
Temperature feedback
air flow circuit board
