Rockwell Automation PowerFlex 7000 User Manual

186 Rockwell Automation Publication 7000-UM202H-EN-P - November 2023
Appendix B PowerFlex 7000 Drive Spare Part Storage Requirements and Recommendations
Power Supply Connection
Guidelines
Pioneer/Cosel Power Supply
1. Connect the AC source to the AC input terminals of Pioneer/Cosel power
supply via 13 A circuit breaker.
2. Use 10 AWG (5.3 mm
2
) wire to connect the devices.

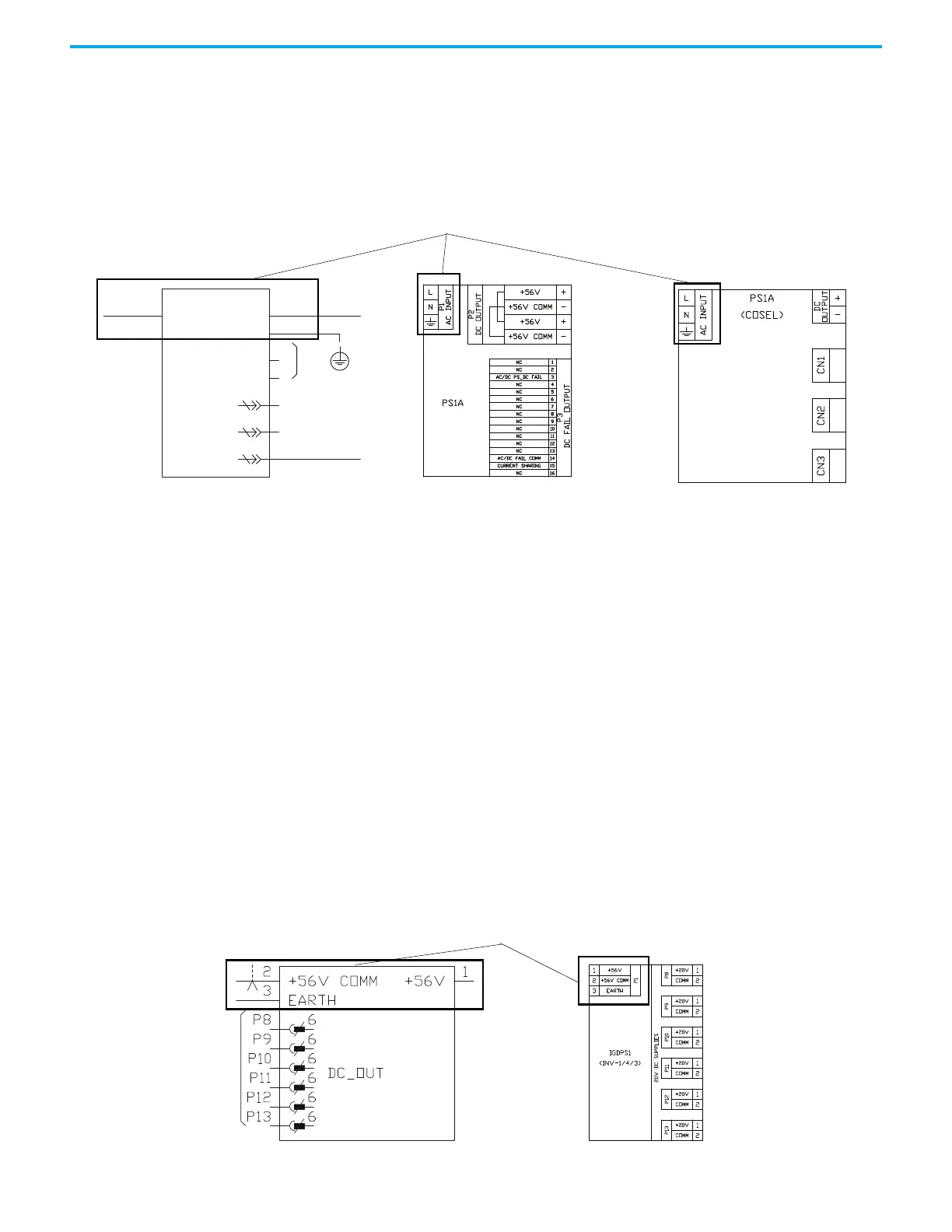

Figure 143 - Pioneer/Cosel Power Supply
IGDPS
There are two methods to connect the IGDPS.
First Method
1. Connect the variable DC source with current limiting function
(56V DC/200mA) to the DC input terminals of IGDPS.
2. Use 14 AWG (2.1 mm
2
wire) to connect the devices.
Second Method
1. Connect the AC source to the AC input terminals of Pioneer/Cosel power
supply via 13 A circuit breaker.
2. Connect the Pioneer/Cosel power supply 56V DC output terminals to the
DC input terminals of IGDPS.
3. Use 14 AWG (2.1 mm
2
wire) to connect the devices.
Figure 144 - IGDPS
-GND_PE
8
8
8
COSEL
AC_IN
DC_OUT
DC_FAIL
-
+
1500W
AC(L) AC(N)
FG
CN1
CN2
CN3
AC Input Terminals
New Style Drawing
Old Style Drawing
Pioneer Power Supply
Old Style Drawing
Cosel Power Supply
DC Input Terminals
New Style Drawing
Old Style Drawing
