Rockwell Automation Publication 750-TG100B-EN-P - June 2019 129

Frame 7 Components Chapter 6

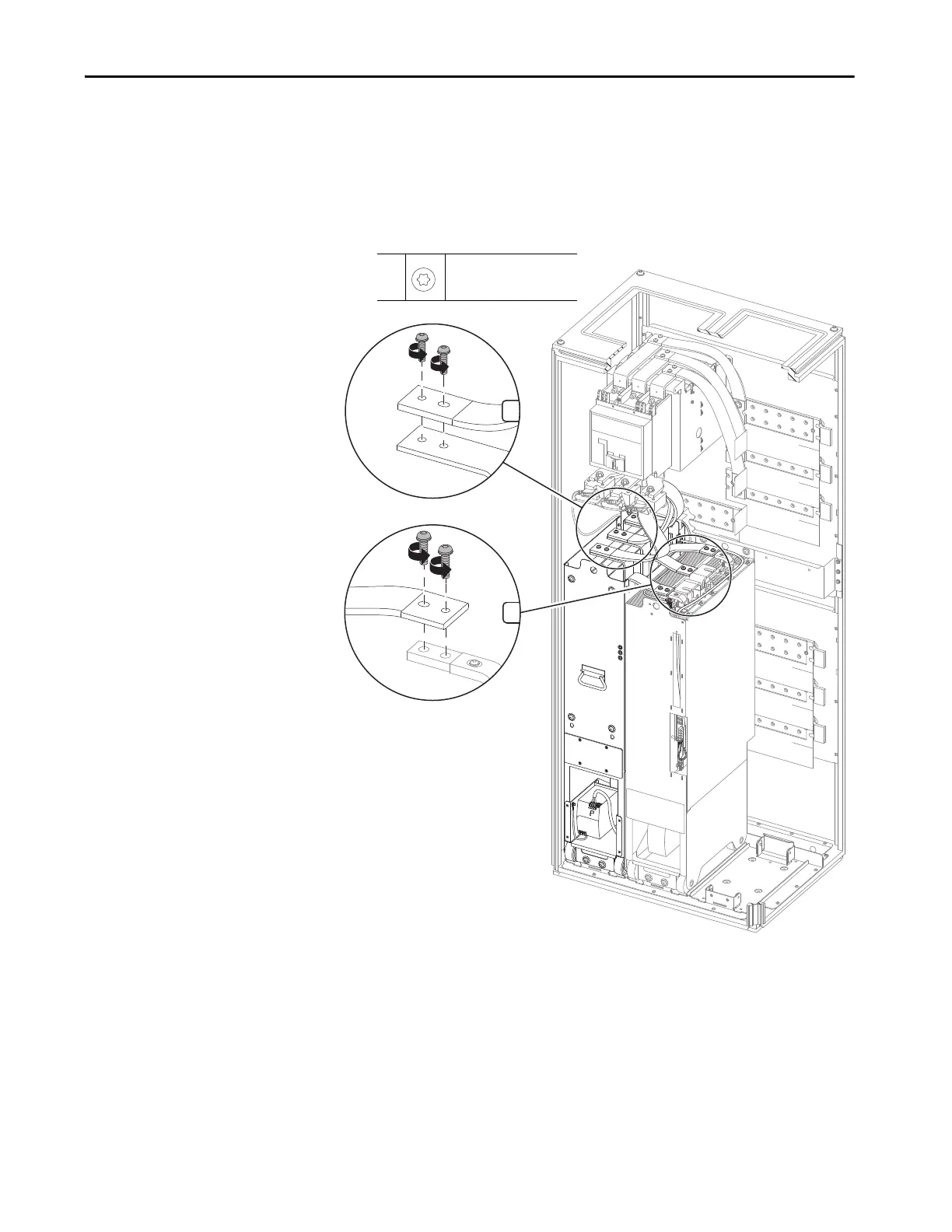

9. Remove the two M8 x 30 mm torx screws that secure the circuit breaker

AC output flexible bus bars to the AC input terminals on the LCL filter

and remove the bus bars.

10. Remove the two M8 x 30 mm torx screws that secure each of the LCL

filter AC output flexible bus bars to the AC input terminals on the line

side converter power module and remove the bus bars.

M8 x 30 mm

T40

19.8 N•m (175 lb•in)
