Connecting External Equipment
About the Sampling Rate
The R-1000 cannot convert the sampling rate. Make the sampling rates of all connected REAC devices identical with the sampling
rate of the REAC master device. Mis-matched sampling rates will result in a failure of audio transmission.
About REAC Connector Covers and Ferrite Cores
Refer to “About REAC Connector Covers” (p. 13) and “About Ferrite Cores” (p. 13). Attach REAC connector covers and ferrite cores
to the REAC ports and cables before making your REAC connections.
* Attaching the REAC connector cover is not necessary when you are using an optional REAC cable (SC-W100S, W100S-R, or SC-W20F).
About Cables
Refer to “About Cables for REAC Connections” (p. 13) and make the connections using suitable cables. Using unsuitable cables
can cause noise or other problems.
About the REAC Indicators
When you connect REAC devices to the R-1000, communication with the connected REAC devices starts and the REAC indicators
corresponding to REAC ports (A-D) flash. When communication with the REAC devices is established, the REAC indicator stop
flashing and remain steadily illuminated. No audio input or output is possible until the indicators stop flashing and remain
steadily illuminated.

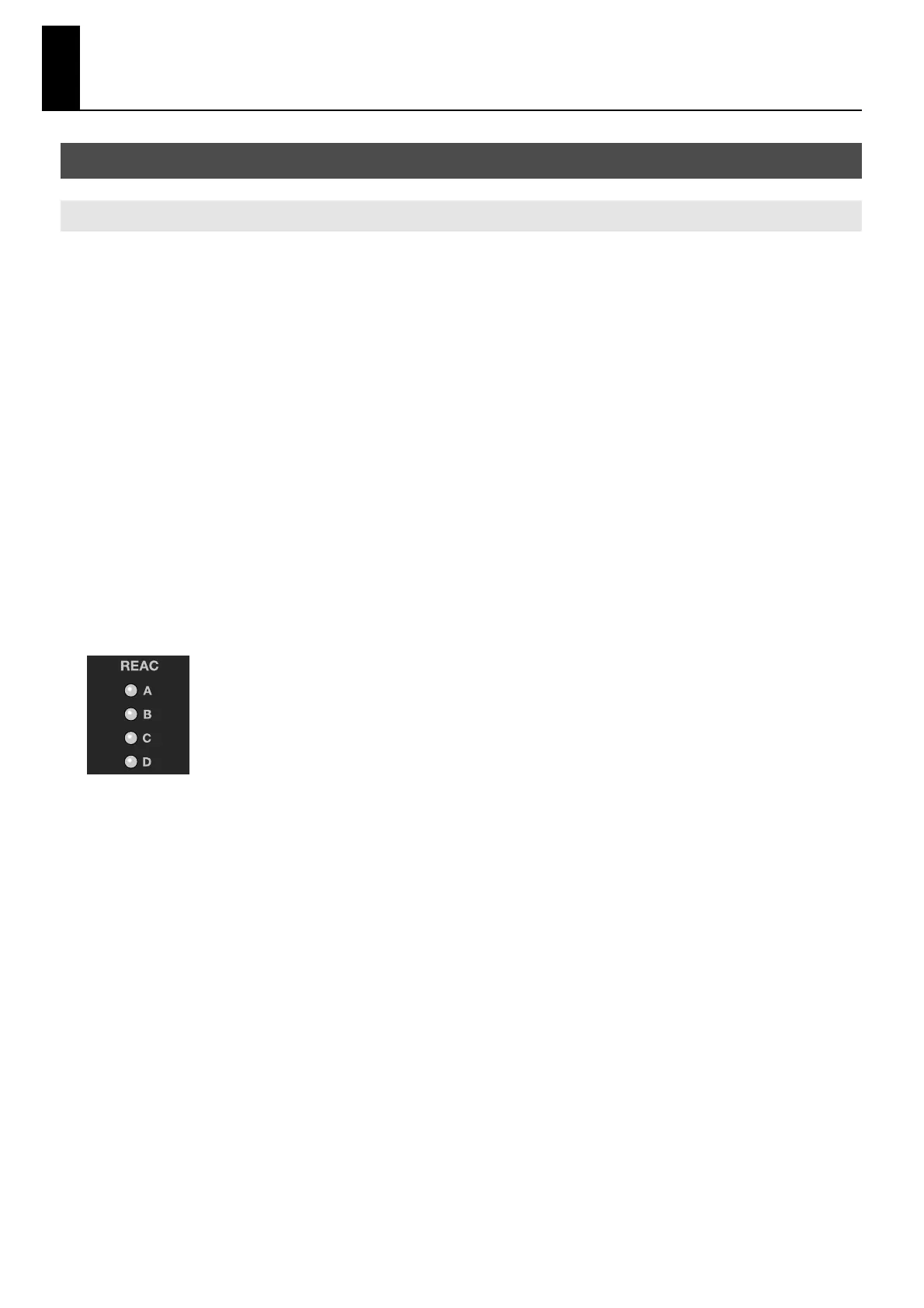

fig.REAC-indicator.eps
Connecting REAC Devices
