Connecting External Equipment
In connection example 3, only the playback audio from the R-1000 was output to the V-Mixer, but you can also mix live audio with
the playback audio and output those to a V-Mixer. This allows you to play back a recorded session and, by muting one or more
recorded tracks, allows one or more performers to perform live with the recorded tracks.
For this connection, set the REAC setting on the R-1000 to “SOUND CHECK.” Refer to “About REAC Settings” (p. 36).
* Connect the R-1000’s [TO SLAVE/SPLIT] REAC port (C/D) to the digital snake devices at the stage.
* Connect REAC A/B on the V-Mixer to the [TO MASTER] REAC port on the R-1000. Be careful not to mix up the A and B connections.
* For the channel on which the live audio is output, use the settings at the track status screen to turn off output from the R-1000. Refer to “Select
the playback track” (p. 52) and “Track Status Screen.”

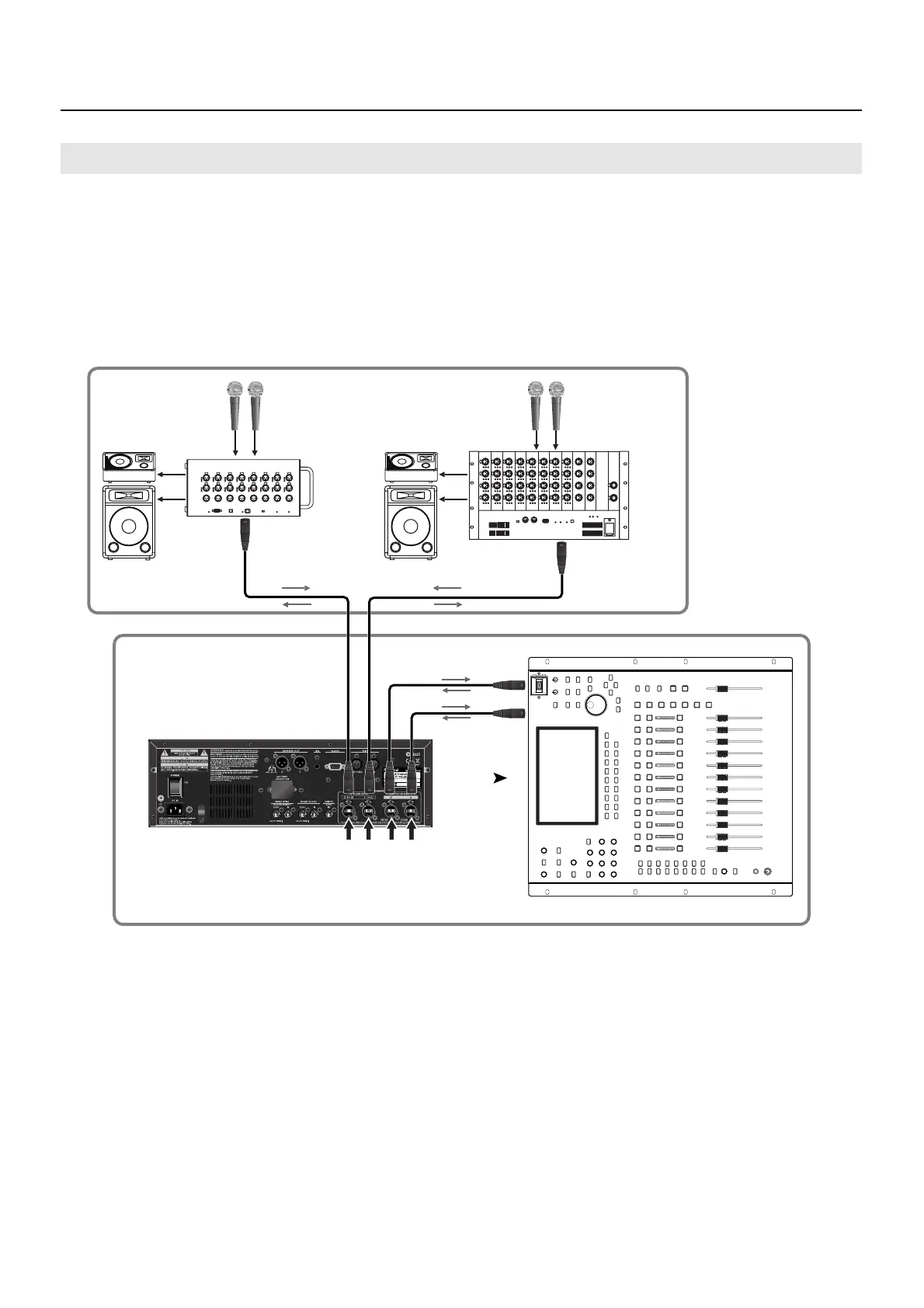

fig.vocal-mix.eps
Set the REAC modes on the devices as shown below. For information on setting the REAC modes on the V-Mixer and the digital
snake device, refer to the owner’s manual for each products.
• V-Mixer Master
• Digital snake device Slave
Example 4: Mixing Live Audio with Playback on the R-1000
A
B
M-380
S-1608
STAGE
FOH (Front of House)
REAC Master/Slave Device
REAC Master Device
REAC
Slave
Device
REAC
Slave
Device
48ch
S-4000S-3208
ABCD
To Next Page
