Controller functions
RES-445 Page 27
described in section 10.27 "Fault areas and causes"
on page 64.
If the heatsealing temperature is selected via
the analog input at terminals 20+23, the spe-
cified voltage value must be checked with a volt-
meter before the heatsealing process begins, in
order to prevent incorrect settings or excessively
high heatsealing temperatures.
11.Burn in the heatsealing band ( Kap. 9.4 „Heatse-
aling band“ auf Seite 25) and repeat the AUTOCAL
function.
9.5.2 Restart after replacing the heatse-
aling band
To replace the heatsealing band, proceed as described
in Kap. 9.4 „Heatsealing band“ auf Seite 25.
Always use a heatsealing band with the cor-
rect alloy, dimensions and copper-plating in
order to avoid malfunctions and overheating.
Continue with section 9.5.1, steps 9 and 10.
10 Controller functions
See also Kap. 8.6 „Wiring diagram (standard)“ auf
Seite 17.

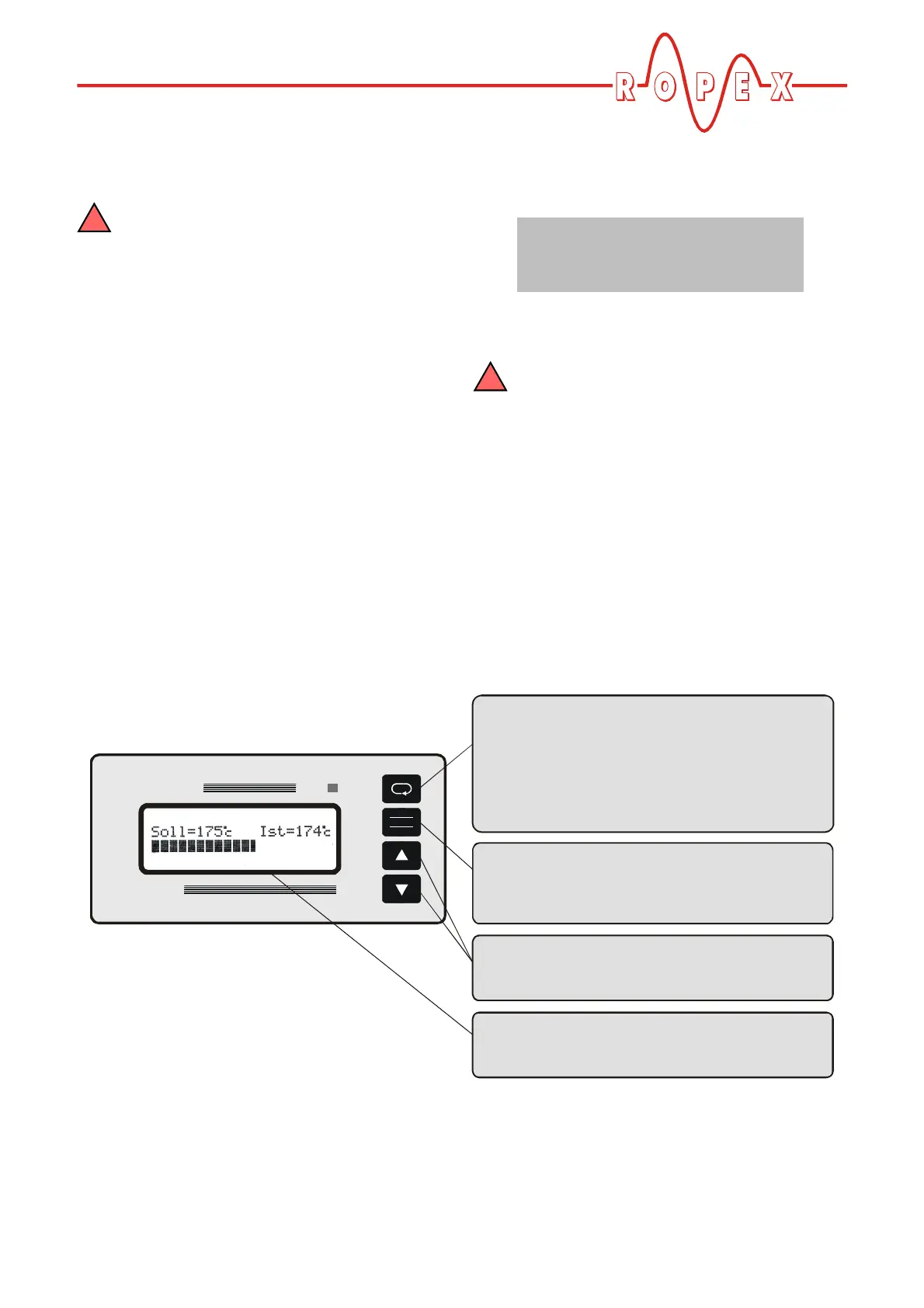

10.1 Indicators and controls
The controller is now
ready
ENTER
HAND
RESET
ROPEX
RESISTRON
RES-4
"MENU" key for advancing to next menu step
or switching menu
< 1 sec. Press: Next menu step
1-2 sec. Press: Return to previous position
Return to home position
(as of SW-Revision 100):
"ENTER" key
ENTER function:
HAND function:
RESET function:
Save values
Manual mode
Reset after alarm
"UP" and "DOWN" keys for setting values
Press (< 2 sec.): Slow change
Hold (> 2 sec.): Fast change
LC display, 4 lines, multilingual
isplay, 4 lines, multilingual
optional:
VF d
