Controller functions
Page 44 RES-445

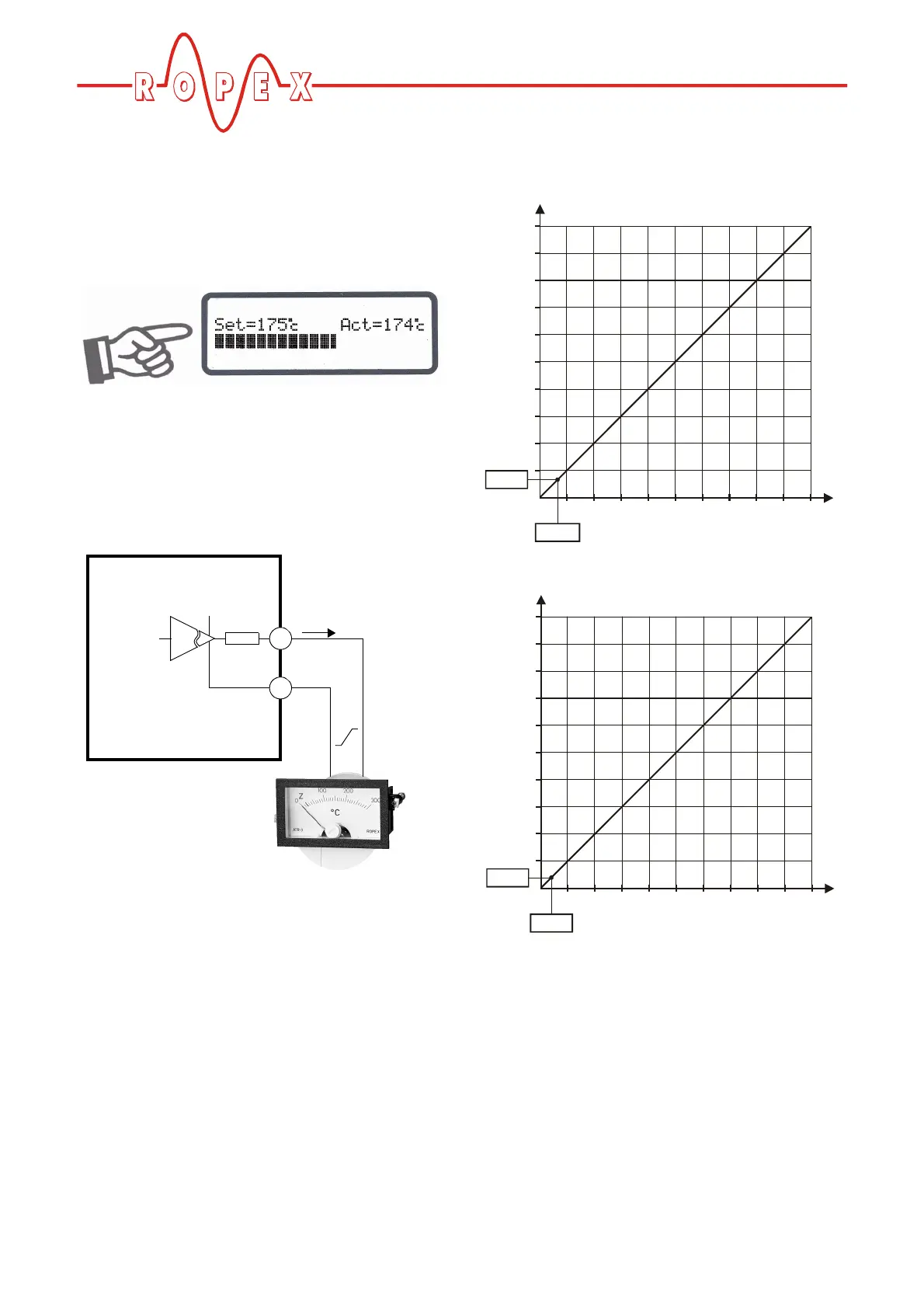

10.8 Temperature indication/actual
value output
If the display is in the home position, the ACTUAL tem-
perature is indicated there as a digital value and as a
dynamic bar.
The heating and control process can thus be monitored
at any time.
In addition, the RES-445 controller outputs an electri-
cally isolated, analog 0…10VDC signal, which is pro-
portional to the real ACTUAL temperature, at terminals
20+24.
Voltage values:
0VDC  0°C
10VDC  300°C or 500°C (depending on the
controller configuration).
The relationship between the change in the output
voltage and the ACTUAL temperature is linear.
Only the two temperature ranges 300°C and 500°C
appear at this actual value output. If a temperature
range of 200°C is set for the controller with
step 205 [22] in the Configuration menu, it appears at
this output in the 0…300°C range. A 400°C tempera-
ture range is indicated as 0…500°C.
An indicating instrument can be connected to this
output in order to visualize the temperature of the heat-
sealing band.
The characteristics of the ROPEX ATR-x temperature
meter (size, scaling, dynamic response) are ideally
suited to this application ( section 5 "Accessories and modifications" on page 7).
RES-445
24
max. 5mA
20
GND
33ohms
Act. value
output
0…10VDC
-
+
0…10VDC
Temperature
meter
e.g. ATR-3
+
0 - 300°C range
12345678910
300
T
e
m
p
e
r
a
t
u
r
e
T
°C
20°C
"ZERO"
VDC
V
oltage U
60
90
120
150
180
210
240
270
0.66V
0 - 500°C range
12345678910
500
100
150
200
250
300
350
400
450
0.4V
°C
VDC
20°C
T
e
m
p
e
r
a
t
u
r
e
T
"ZERO"
Voltage U
