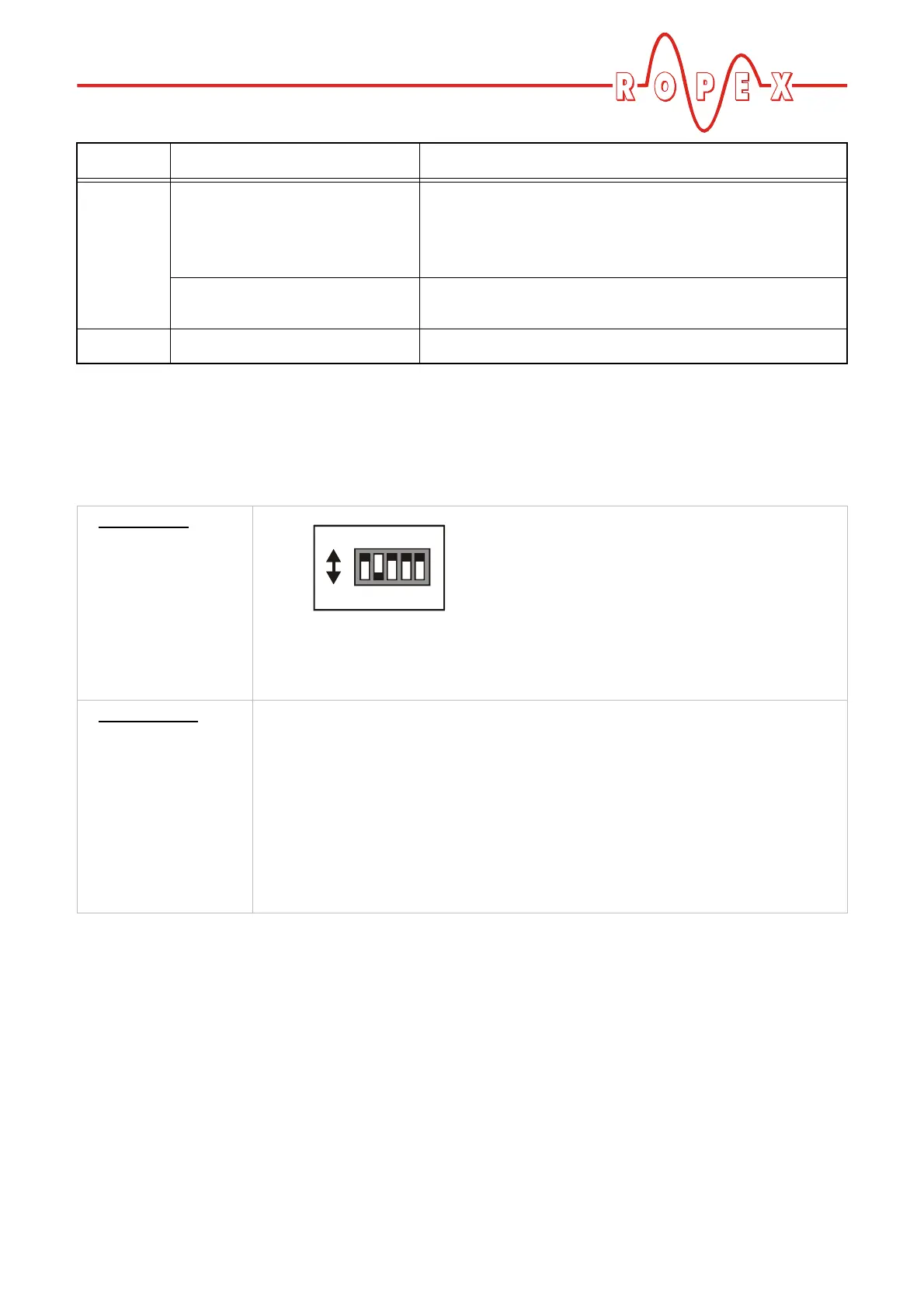

Factory settings
RES-445 Page 65
11 Factory settings
The RESISTRON temperature controller RES-445 is
configured in the factory as follows:

I
R
signal incorrect
- Up to software revision 027: DIP switches 4+5 configured
incorrectly (I
2
range)
- As of software revision 100: I
2
outside permissible range
from 30…500A
Turns through PEX-W2/W3 cur-
rent transformer incorrect
- Check number of turns (two or more turns required for
currents < 30A)

Internal controller fault
- Hardware fault (replace controller)
Fault area Explanation Possible causes
DIP switches
for
secondary voltage
U
2
and current I
2
(Up to software
revision 027)
U
2
= 6…60VAC
I
2
=30…100A
DIP switches: 2 ON
1, 3, 4, 5 OFF
These switches are automatically set by the AUT-
ORANGE function on all controllers as of software
revision 100.
Settings menu
No. 101 [1] Heatsealing temperature:0°C
No. 102 [2] Preheating temperature: 0°C
No. 103 [3] Starting delay: 0s
No. 104 [4] Heatsealing time: 1s
No. 105 [5] Cooling value: Cooling time: 10 s
Absolute cooling temperature: 50°C
Relative cooling temperature:
40 % of heatsealing temperature
No. 106 [6] Hold mode: OFF
No. 107 [7] AUTOCAL temperature: 20°C
