Rosen Aviation Remote Display System User Manual

Rosen Aviation Remote Display System
Document Number: 105478
Revision: A
Date: 04/24/12
Template: 4.2.3-6-FM; Revision A; 16 May, 2005
Page 11 of 43

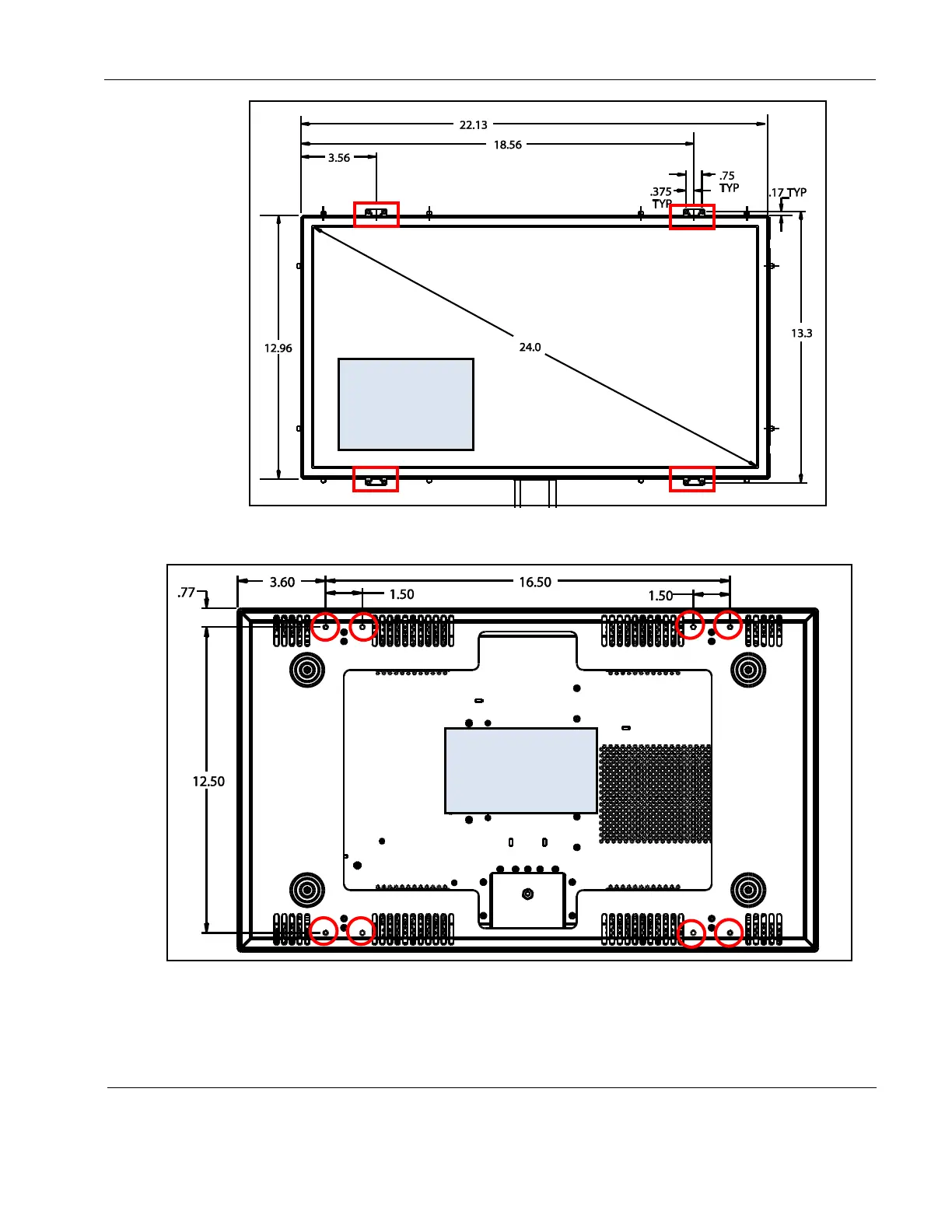

Figure 7 Front view of a 2401-100 flush or semi-proud mount from the tabs
Figure 8 Rear view of the 2401-800 cosmetic back (shown with chassis) for a proud mount
Four mounting
tabs for 4-40
FHP screws
(two each)
Use four screws;
2 top, 2 bottom
.188 mounting
holes provided

Rosen Aviation Remote Display System Specifications

General

Brand	Rosen Aviation
Model	Remote Display System
Category	Monitor
Language	English
