Rosen Aviation Remote Display System User Manual

Rosen Aviation Remote Display System
Document Number: 105478
Revision: A
Date: 04/24/12
Template: 4.2.3-6-FM; Revision A; 16 May, 2005
Page 13 of 43

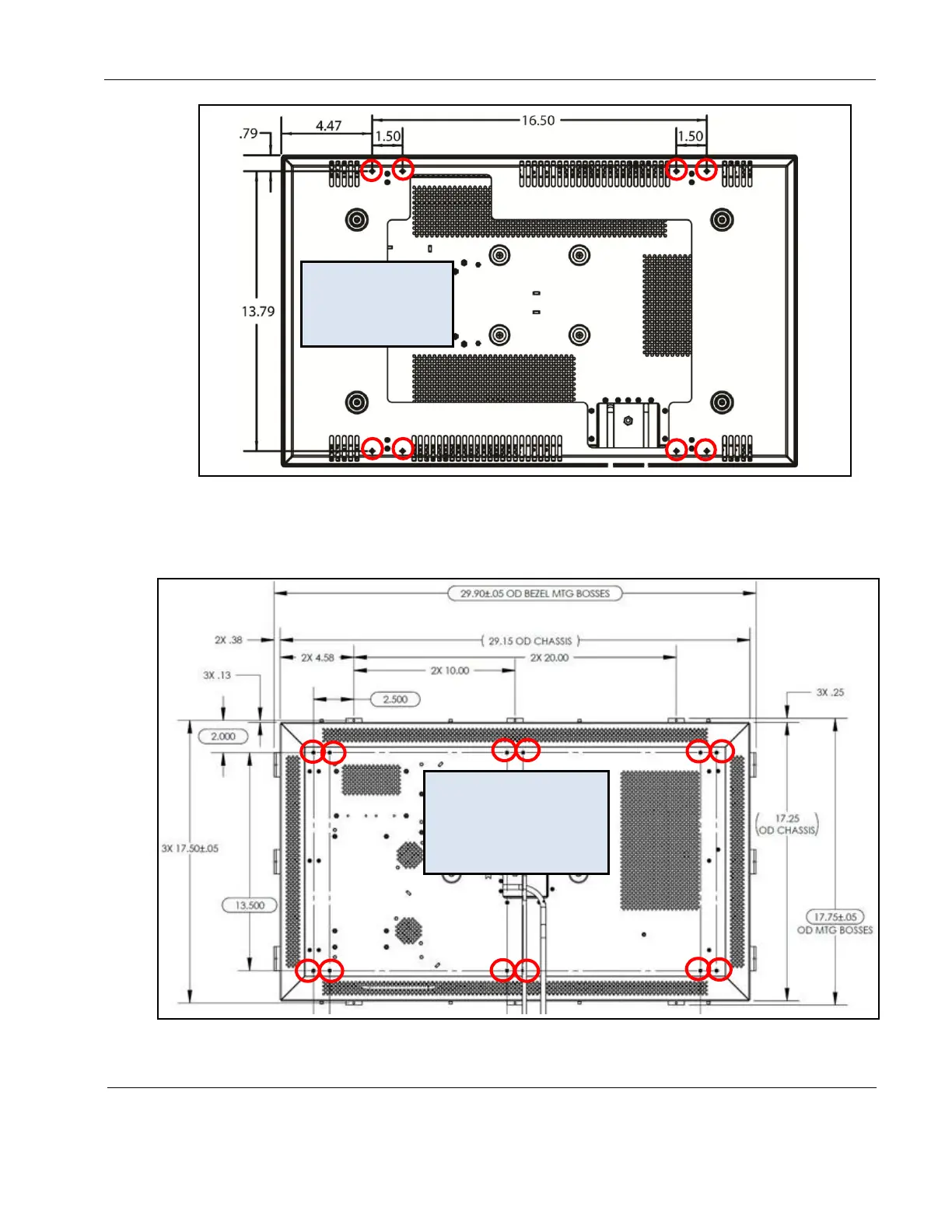

Figure 11 Rear view of the 2601-800 cosmetic back (shown with chassis) for a proud mount
3.6. 32-inch RDMs
The following figures show the general dimensions for the 32” RDM mounting options.
Figure 12 Rear view of a 3201-100
Use a minimum
pattern of six mounting
points #8-32 hardware;
3 top 3 bottom; .25
max. insertion depth
Use four screws;
2 top, 2 bottom
.188 mounting
holes provided
