Rosen Aviation Remote Display System User Manual

Rosen Aviation Remote Display System
Document Number: 105478
Revision: A
Date: 04/24/12
Template: 4.2.3-6-FM; Revision A; 16 May, 2005
Page 12 of 43
3.5. 26-inch RDMs

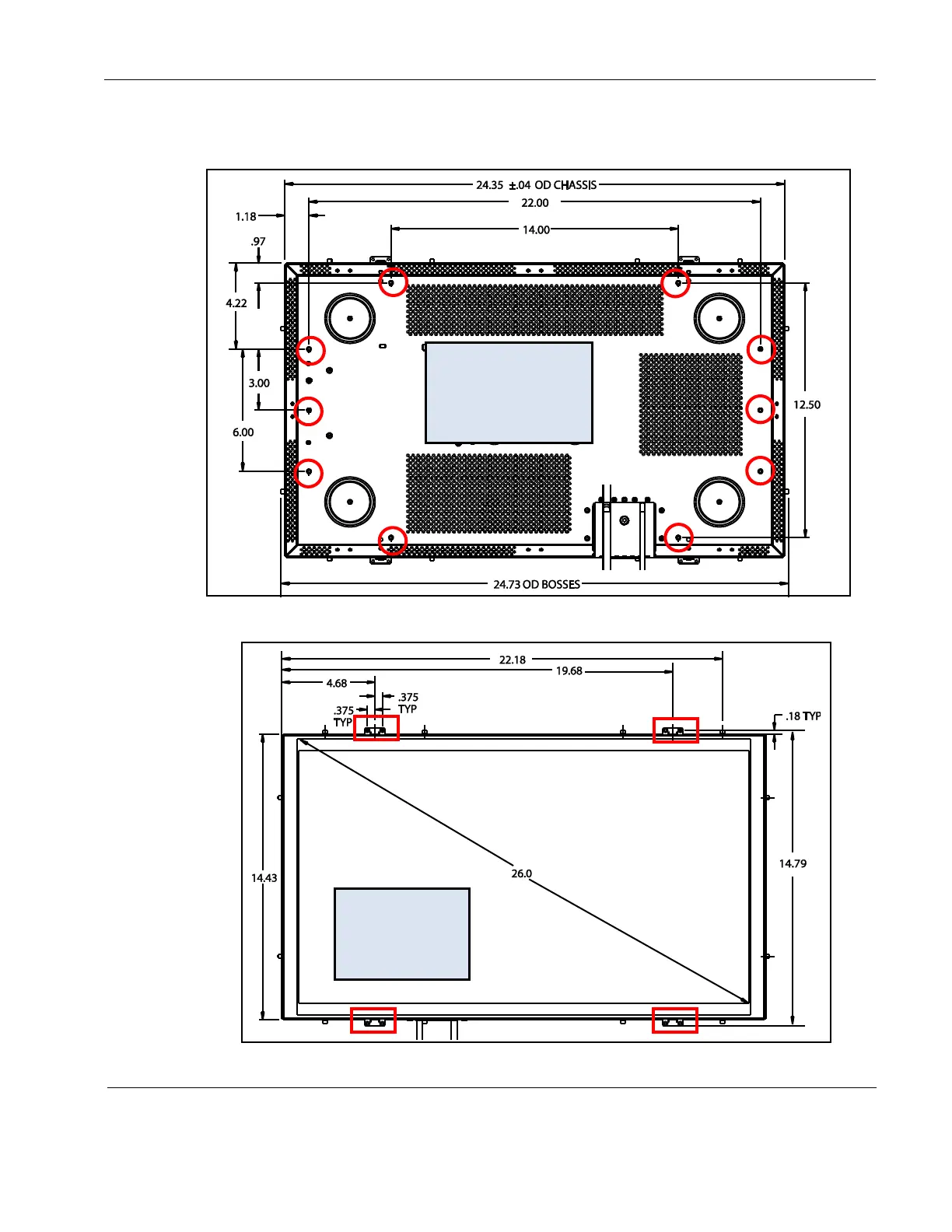

The following figures show the general dimensions for the 26” RDM mounting options.
Figure 9 Rear view of a 2601-100 flush mount
Figure 10 Front view of a 2601-100 flush or semi-proud mount from the tabs
Four mounting
tabs for 4-40
FHP screws
(two each)
Use a minimum
pattern of four
mounting points
#8-32 hardware; .25
max. insertion depth
