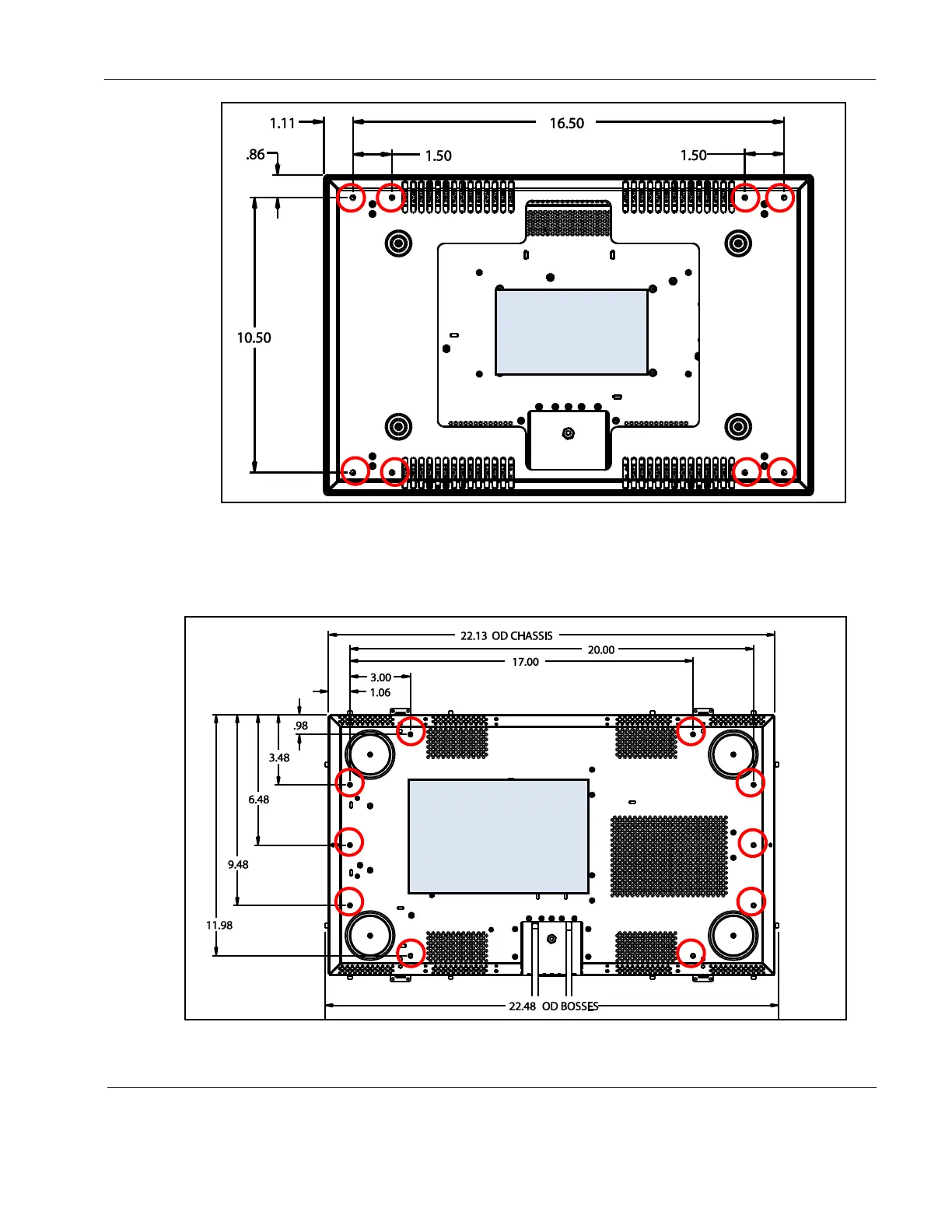

Figure 5 Rear view of the 1901-800 cosmetic back (shown with chassis) for a proud mount
3.4. 24-inch RDMs
The following figures show the general dimensions for the 24” RDM mounting options.
Figure 6 Rear view of a 2401-100 flush mount
Use four screws;
2 top, 2 bottom
.188 mounting
holes provided
Use a minimum
pattern of four
mounting points
#8-32 hardware; .375
max. insertion depth
