rotork IQT User Manual

31
AA
This screen will only display if relay
function is set to [P0] Position Open .
When the S contact function is set to
[P0], the required intermediate position
value must be set.
No other contact function requires
a value to be set.
The value can be set from 1% open to
99% open in 1% increments.
Using the
+
or
-
key, display the
required value.
PRESS THE KEY.
The displayed value will flash (stored)
indicating that it has been set.

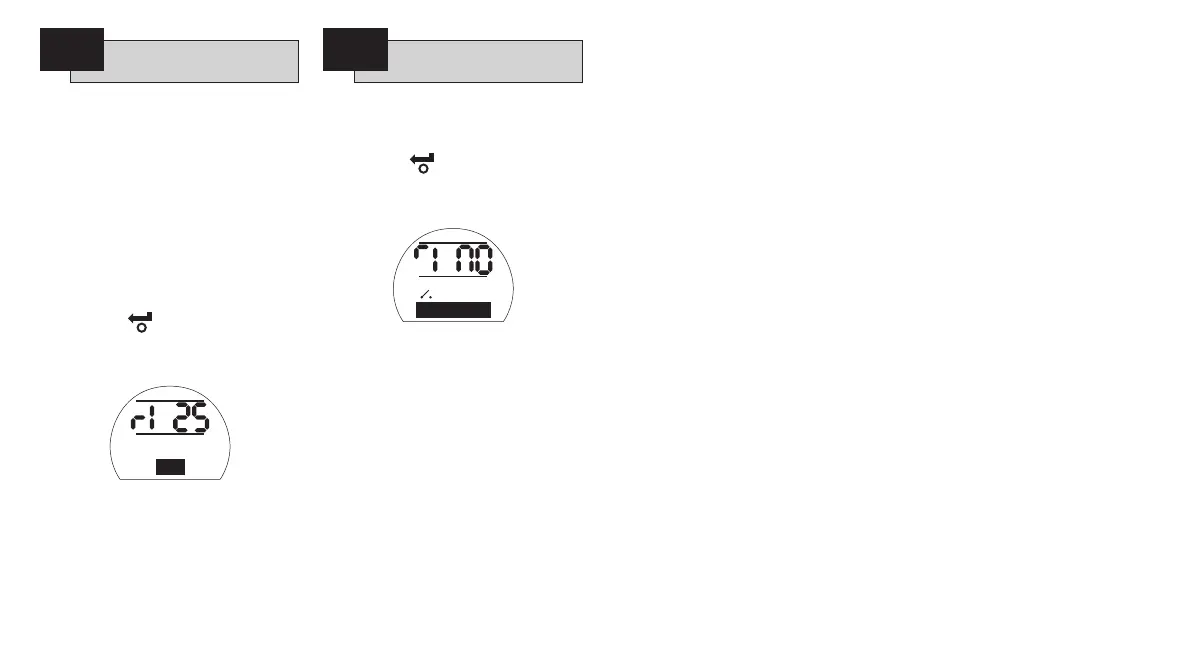

Value Set to Indicate
25% Open
PRESS THE k KEY.
Use the
+
or
-
keys to select between
[nO] Normally Open and [nC] Normally
Closed
.
PRESS THE KEY.
The displayed option will flash (stored)
indicating that it has been set.
Contact S1 Configured as a
Normally Open Contact
NOTE: If function [PO] Position Open
is selected and it is configured as a
normally open contact it will make at
the set value with the actuator moving
in the open direction.
To access S2–S4
PRESS THE m KEY.
r1
Contact S1
Contact Form
S1 Contact
Normally Open
Contact S1 - Value
r1
S1 % Position
25%
