33
AA
The default setting for ESD Override
Interlocks is [OF]
No
. ESD action will not
override an active interlock applied to
the actuator.
If an applied ESD signal is required to
override active interlocks causing the
ESD action as set for A1, press the
+
or
-
key. The display will change to
[On]
Yes
.
PRESS THE KEY.
The displayed option will flash (stored)
indicating that it has been set.
The default setting for ESD Override
Local Stop is [OF]
No
. ESD will not
override local stop when selected.
If an applied ESD signal is required to
override local stop causing the ESD
action as set for A1, press the
+
or
-
key.
The display will change to [On]
Yes
.
PRESS THE KEY.
The displayed option will flash (stored)
indicating that it has been set.
The default setting for Local Actuator
Pushbutton control is self-maintained
[O
n]
Yes
.
If non-maintained actuator pushbutton
control is required (jogging, inching,
push to run), press the
+
or
-
key. The
display will change to [OF]
No
.
PRESS THE KEY.
The displayed option will flash (stored)
indicating that it has been set.
The default setting for 2-wire Remote
Priority is [SP]
Stay Put
. If an open and
closed remote control signal are applied
simultaneously the actuator will stay
put (stop if running). Refer to actuator
wiring diagram or PUB002-002.
Use the
+
or
-
key to select the
required priority:
[OP]
Open
[SP]
Stay Put
[CL]
Close
PRESS THE KEY.
The displayed option will flash (stored)
indicating that it has been set.

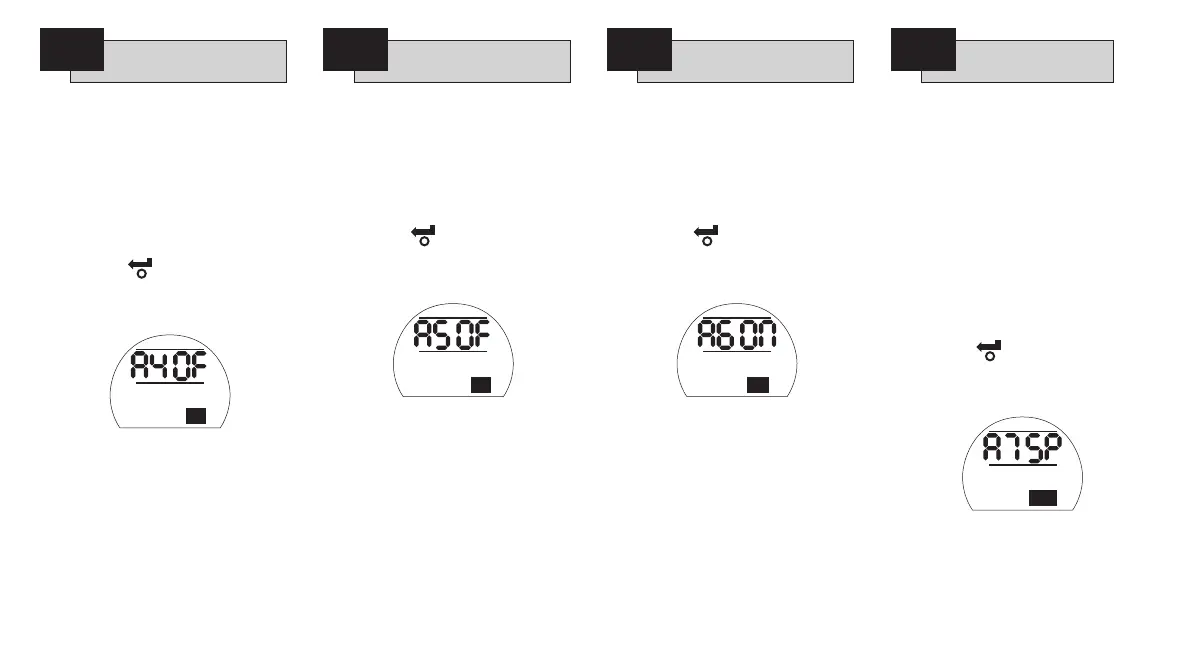

2-wire Control Stay Put Priority
ESD Override
Interlocks: No
ESD Override
Local Stop: No
Maintain Local
Control: Yes
2-Wire Remote
Priority: Stay
A4
ESD Override
Interlocks
A5
ESD Override
Local Stop
A6
Maintain
Local Control
A7
2-wire Remote
Priority
