35
AA
Extra indication contacts S5 [r5], S6
[r6], S7 [r7] and S8 [r8] are available as
an option.
Check actuator circuit diagram for
inclusion.
When the Extra Contact Option is
included the set-up procedure and
available contact functions for S5 – S8
are identical to S1–S4 (refer to Section
9.2 page 30).
Unless specified with order the default
setting for the extra indication contacts
will be as follows:
S5 [r5]
Close limit
S6 [r6]
Open limit
S7 [r7]
Torque trip mid
S8 [r8]
Remote selected
NOTE: If the Extra Contact Option is
not included in the actuator build, any
settings made for S5–S8 will have no
effect on the indication output of the
actuator.
The action of turning on the Extra
Contact Option makes an additional
series of set-up screens available
Press the
+
or
-
key to select the Extra
Contact Option set-up screens [On].
PRESS THE KEY.
The displayed option will flash (stored)
indicating that it has been set.
PRESS THE m KEY TO ACCESS S5
TO S8 SET-UP DISPLAYS.
The procedure for setting S5 to
S8 is the same as that for S1 to S4
(refer to Section 9.2 page 30).

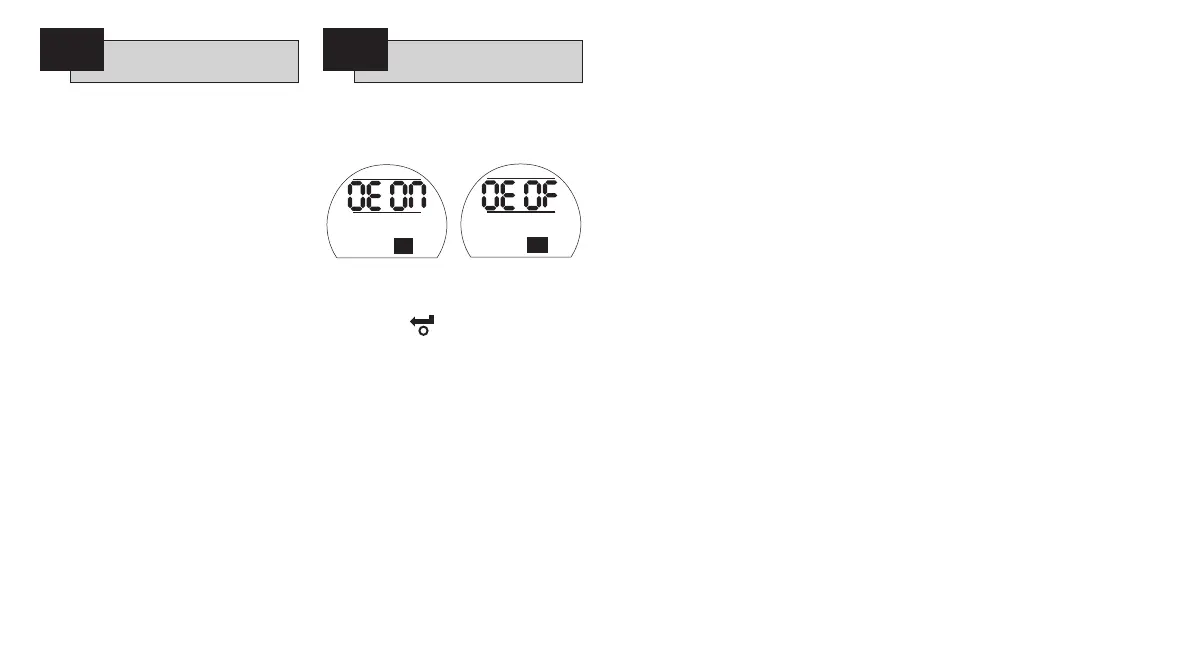

Extra Contacts
Menu: On
Extra Contacts
Menu: Off
9.4
Option Extra
Indication Contacts
OE
Display Extra Contact
Set-up Screens
To Next Page
