rotork IQT User Manual

36
AA
Setting instructions for actuators
including a CPT providing 4-20mA
analogue position feedback.
The CPT is an optional extra. It may be
internally or externally powered.
Check wiring diagram for inclusion and
connection details.

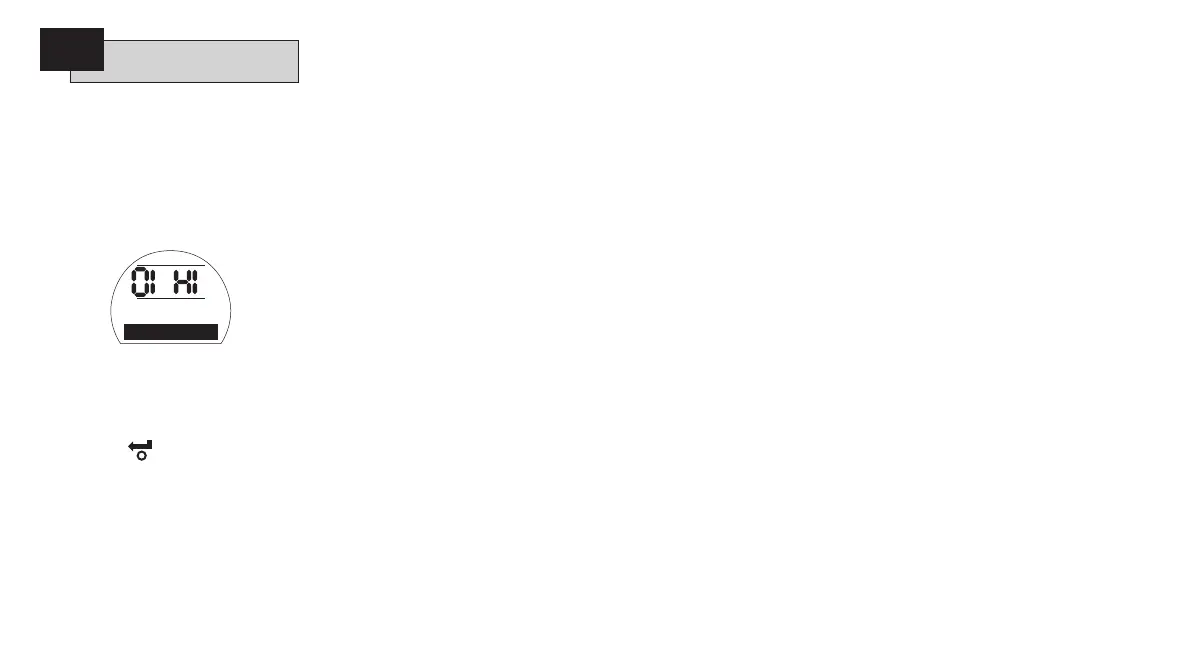

With [HI] Displayed, the CPT operates
Close=4mA , Open=20mA
If Close=20mA , Open=4mA is required, use
the
+
or
-
key to change to [LO].
PRESS THE KEY.
The displayed option will flash (stored)
indicating that the option has been set.
NOTE: If the actuator has options
Folomatic and CPT, redefining the
CPT, will require the Folomatic to be
recommissioned (refer to Section 9.6
Folomatic [OI] page 37).
9.5
Option CPT [OI] –
4-20mA Indicator
Analog Feedback
CL=4ma OP=20mA
