DISPLAY WINDOWS
OPERATOR DISPLAY
Your cash register provides two displays which featur e large, easy to read fluoresc ent digits for easy operator
and customer viewing. The operator display is located at the top front of the machine and is your visual guide to
the inner workings of the cash register. The displa y shows entry amounts and related transaction information by
the use of numbers and special symbols. The display c apacity is 9 digits; 1 digit for Repeat, 2 digits for
Departments, and an amount display with a 7 digit capacity for numerical entry.
CUSTOMER DISPLAY
To position the rear customer display, simply pull up and rota te for viewing from any direction. To close, simply
turn the display facing away from you (to the rear of the cash register), then press down on the raised display
until it lies flat against the top of the register.

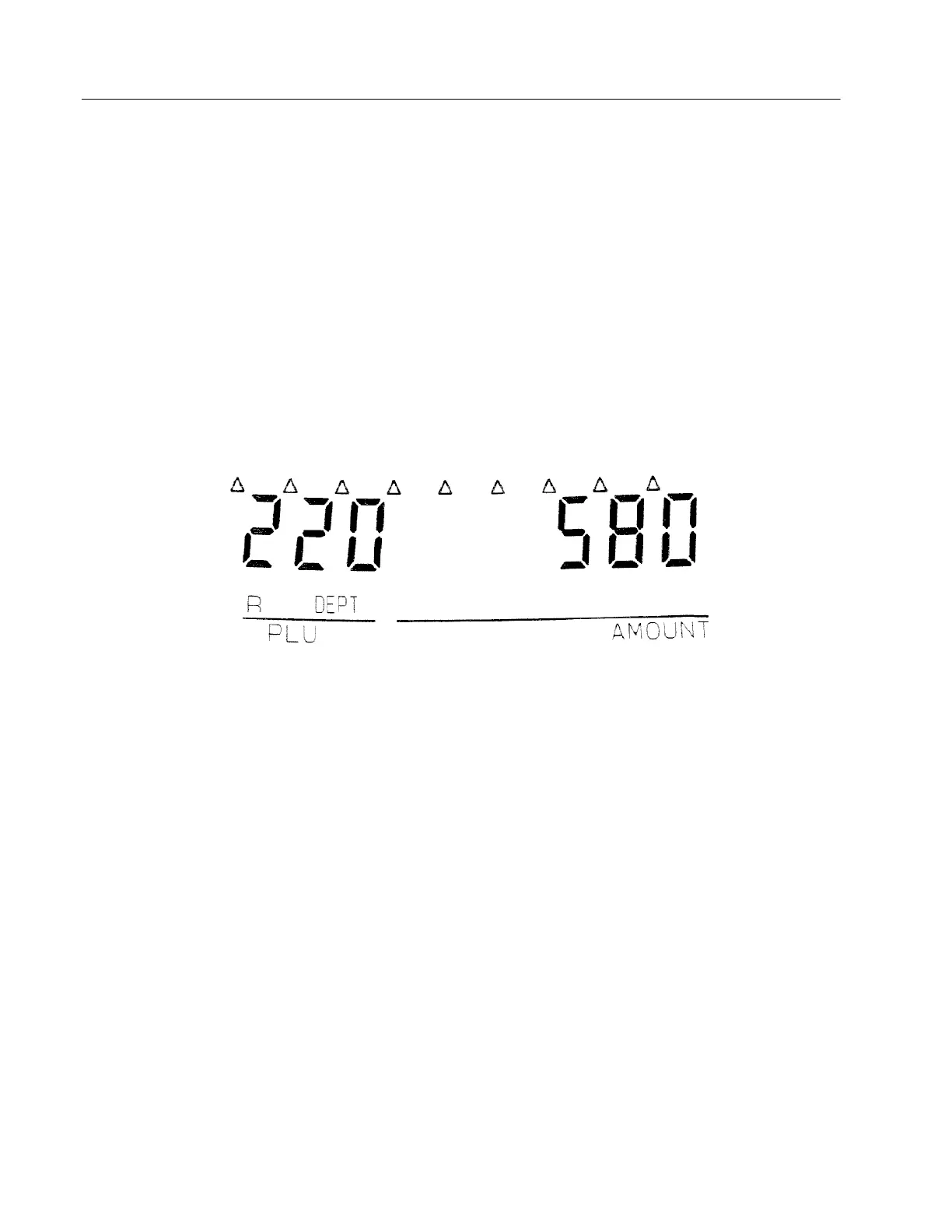

Following is a graphic representation of the items shown on the cash register Operator Display:
The display indicators read from left to right as follows:
R: Repeat symbol, indicates when multiple items are entered at one price.
DEPT (Department): 2 digits, displays the department number entered.
PLU: 3 digits, displays the number of the PLU entered.
DEPT SHIFT:  A triangular indicator displays when the [DEPT SHIFT] key is operated.
CA (Cash):  A triangular indicator displays when the [AMT TEND/TOTAL] key is operated.
CHK (Check):  A triangular indicator displays when the [CHECK] key is operated.
CHG (Charge):  A triangular indicator displays when the [CHARGE] key is operated.
AMOUNT: 7 digits for entry and 10 digits for printing (8 numeric, 2 symbols).
Symbols which appear on the display:
C: Displays the change due.
E: Displays if an error is detected. PRESS the [CLEAR] key to reset.
: Displays when the [#/ST/NS] key is pressed.
-: Displays when the total is a negative figure.
U: Void/Return symbol, appears when a void or return operation is performed.
-: RA or PO symbol appears when an amount is entered and the RA or PO key is
pressed.
