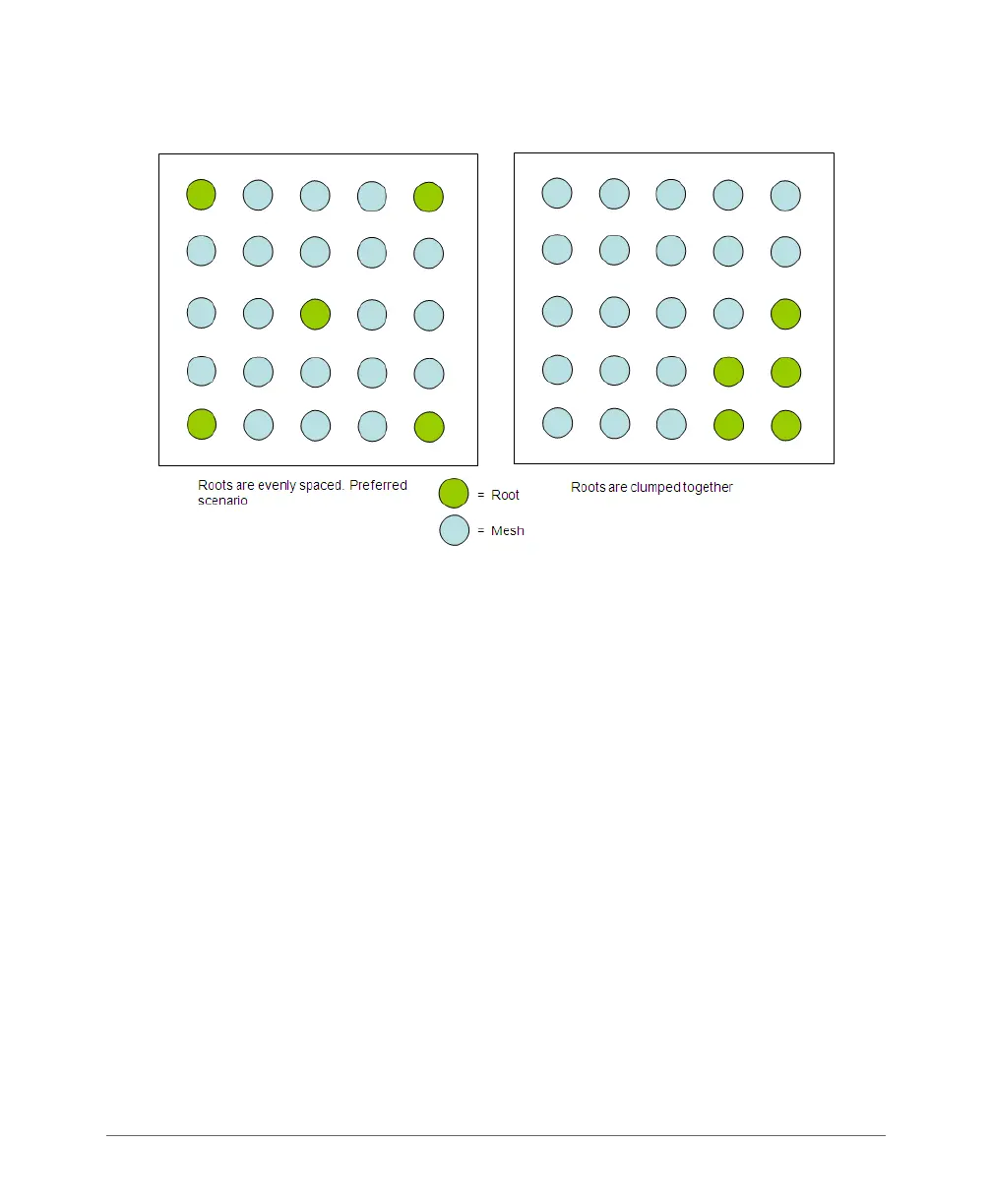

Figure 220. Root Placement
• If the customer's network utilizes a wireless backhaul technology for broadband
access, it is recommended to not mount the broadband wireless modem right
next to a Ruckus Wireless AP. A distance of 10 feet or more would be desirable.
Signal Quality Verification
The above guidelines for planning will result in a well-designed mesh. However, it
is advisable to place the APs in the planned locations temporarily using a tripod
stand or other means, and actually checking the Signal Quality throughout the mesh
network. In addition, once the mesh is deployed, the Signal Quality should be
periodically monitored to make sure the mesh is operating optimally. Signal Quality
is a measurement of the link quality of the MAP's uplink, and is available on the
ZoneDirector web interface.
To view the Signal parameter in the Zone Director web interface, go to Monitor >
Access Points, and click on the Mesh AP being tested (click the MAC address) to
see the Access Point detail screen, as shown in Figure 221 below.
There are two best practice observations that should be met:
