Mounting and Orientation of APs
Indoor APs - Typical Case: Horizontal Orientation
416 Ruckus Wireless, Inc.
Mounting and Orientation of APs
ZoneFlex APs are very tolerant to a variety of mounting and orientation options due
to Ruckus Wireless' use of its unique BeamFlex technology, in which the RF signal
is dynamically concentrated and focused towards the other end of the RF link.
The bottom line regarding orientation and placement is that during the planning
phase, it is advisable to use the Signal Quality as your benchmark, as explained in
the Signal Quality Verification section. Ensure that the Signal is better than 25% for
trouble-free operation.
For additional mounting details, please also consult the Quick Setup Guide and the
Wall and Ceiling Mounting Instructions that came in the AP box.
Indoor APs - Typical Case: Horizontal Orientation
ZoneFlex indoor APs are typically oriented such that the top of the AP is pointing
either straight up or straight down.

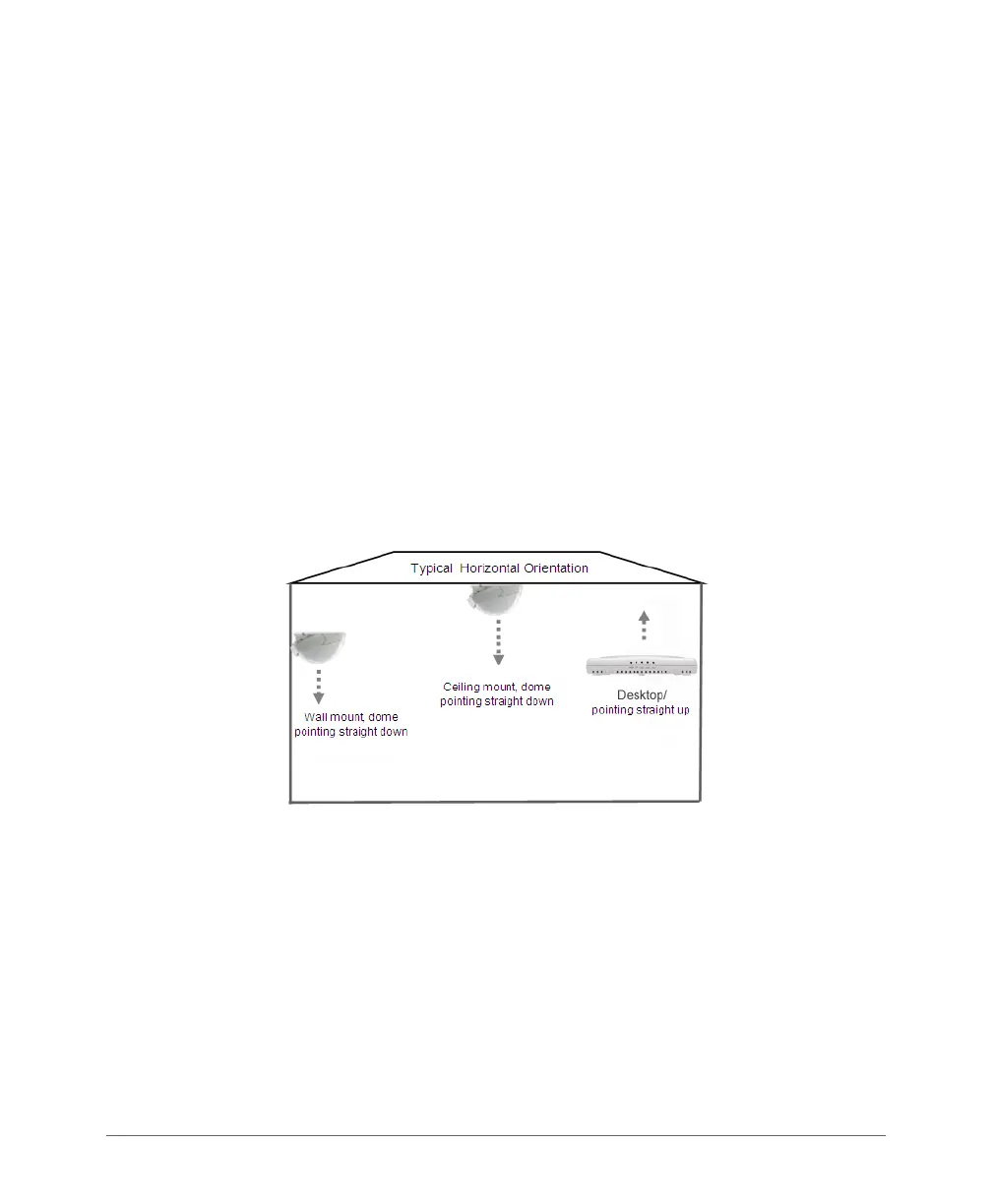

Figure 222. ZoneFlex indoor AP horizontal orientation
