Installing the Wireless Bridge
Physical Installation
10.Continue to “Step 2: Attach the Dynamic Bracket to the Wireless Bridge”.
Attaching the Bracket to a Pole
The Wireless Bridge can be mounted vertically on a 30mm to 60mm (1.18 in. to 2.36
in.) pole.
1. Insert the open end of the steel clamps into the two tabs on the bracket.

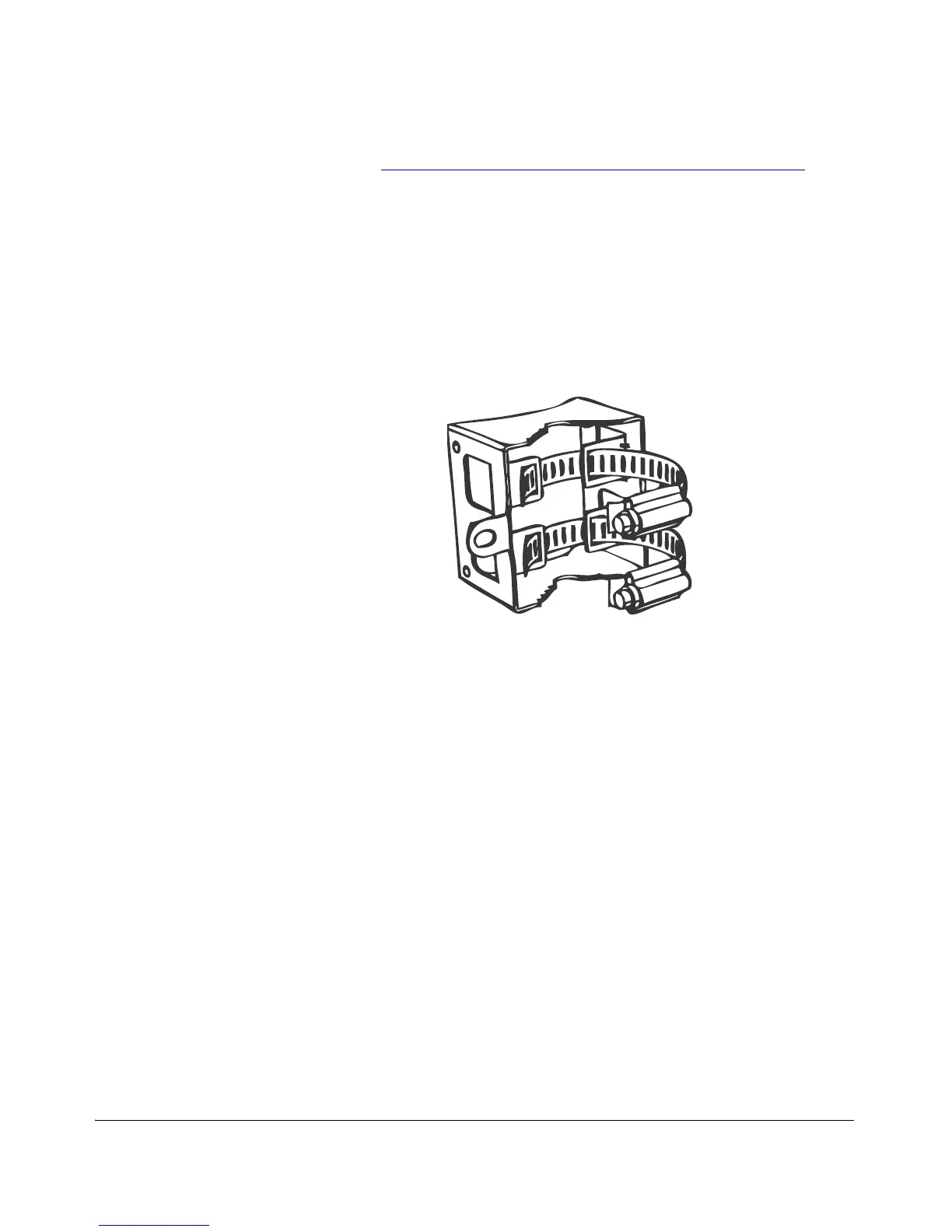

Figure 35. Insert the steel clamps into the two tabs on the bracket
