DescriptionLED
• Off: The 5GHz WLAN service is down.
Green: The WLAN service is up, at least
one client is associated, and no
downlink MAPs are connected.
• Slow flashing green (one flash every two
seconds): The WLAN service is up, at
least one downlink MAP is connected,
and no clients are associated.
• Fast flashing green (two flashes every
second): The WLAN service is up, at
least one downlink MAP is connected,
and at least one client is associated.
• Amber: The WLAN service is up, but no
clients or downlink MAPs are
associated or connected.
5GHz WLAN
One RJ-45 port for a 10/100/1000 PoE
(Power over Ethernet, 802.3af/at Class 3
or 4) connection.
PoE In Port
Bottom Panel

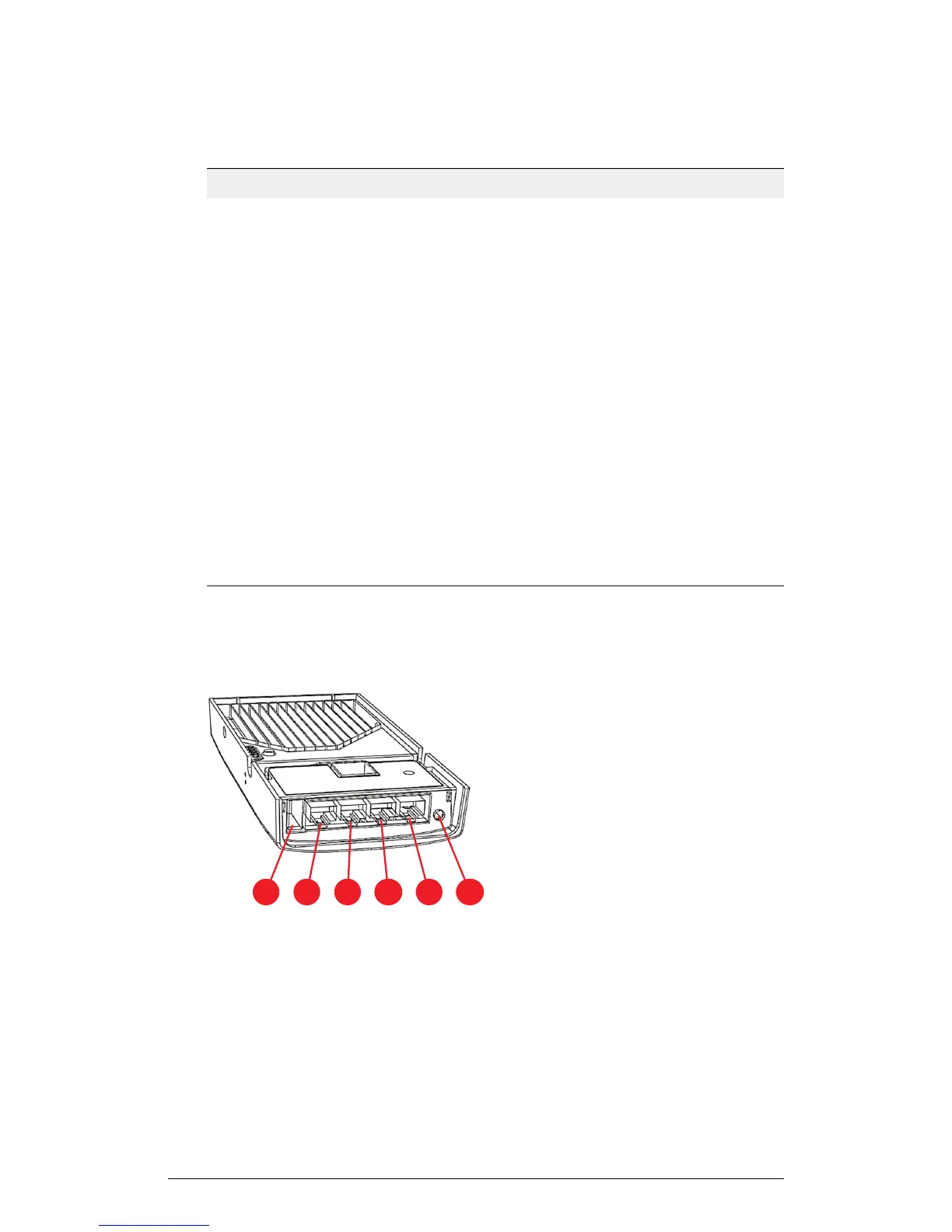

The following figure shows the bottom view of the H500. For a description of each bottom
panel part, refer to the table below.
36
ZoneFlex Indoor Access Point Release 104.0 User Guide
Introduction
Getting to Know the AP Features
